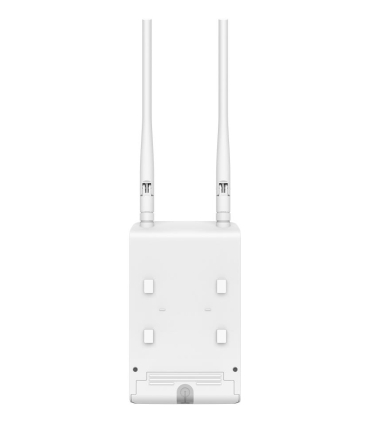

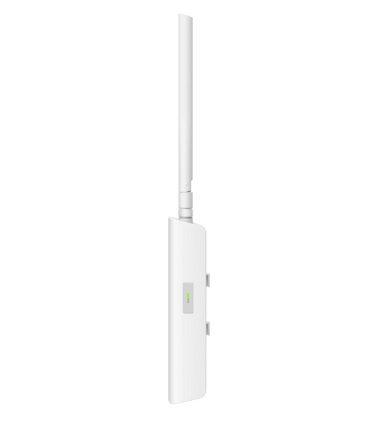

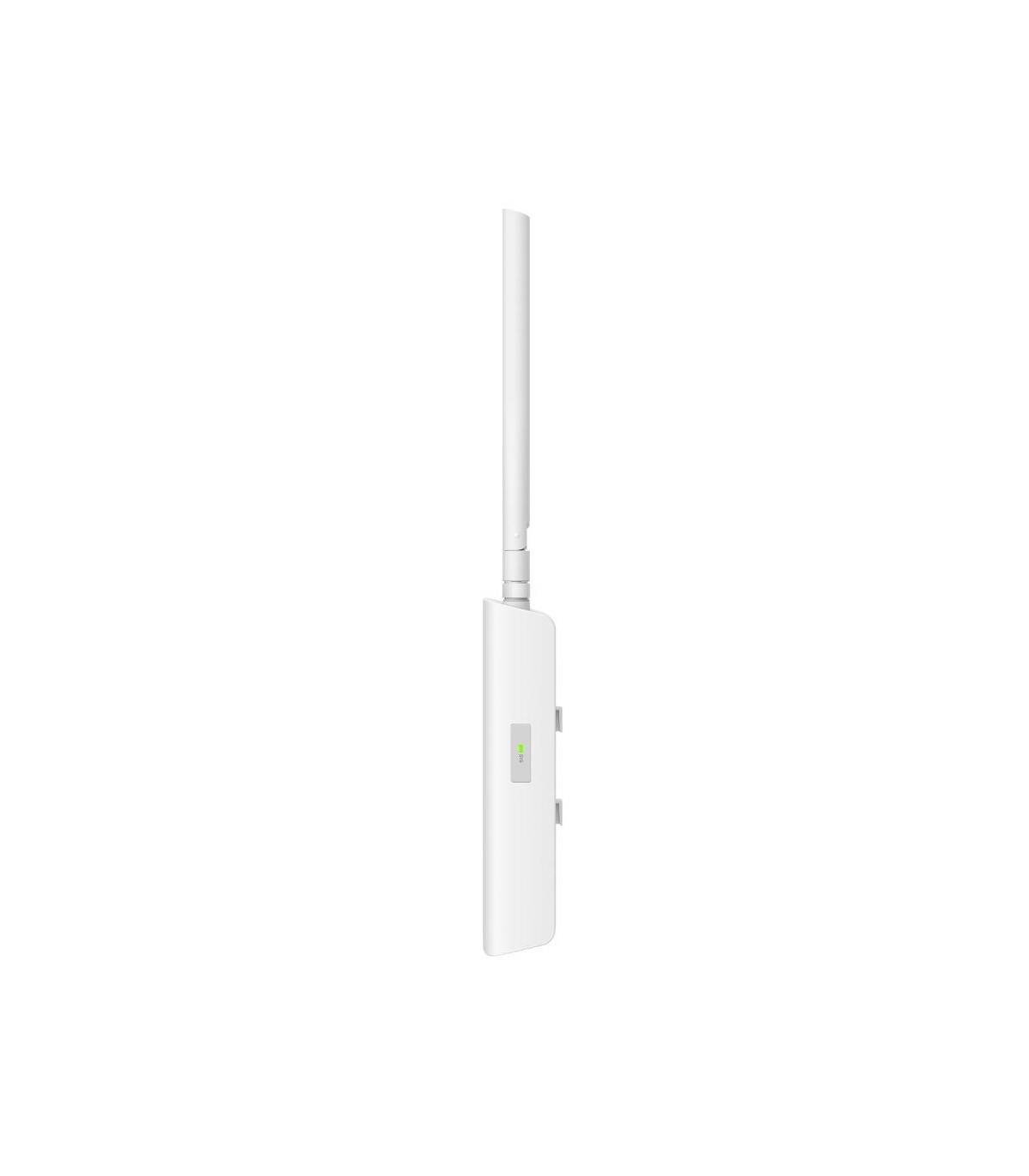

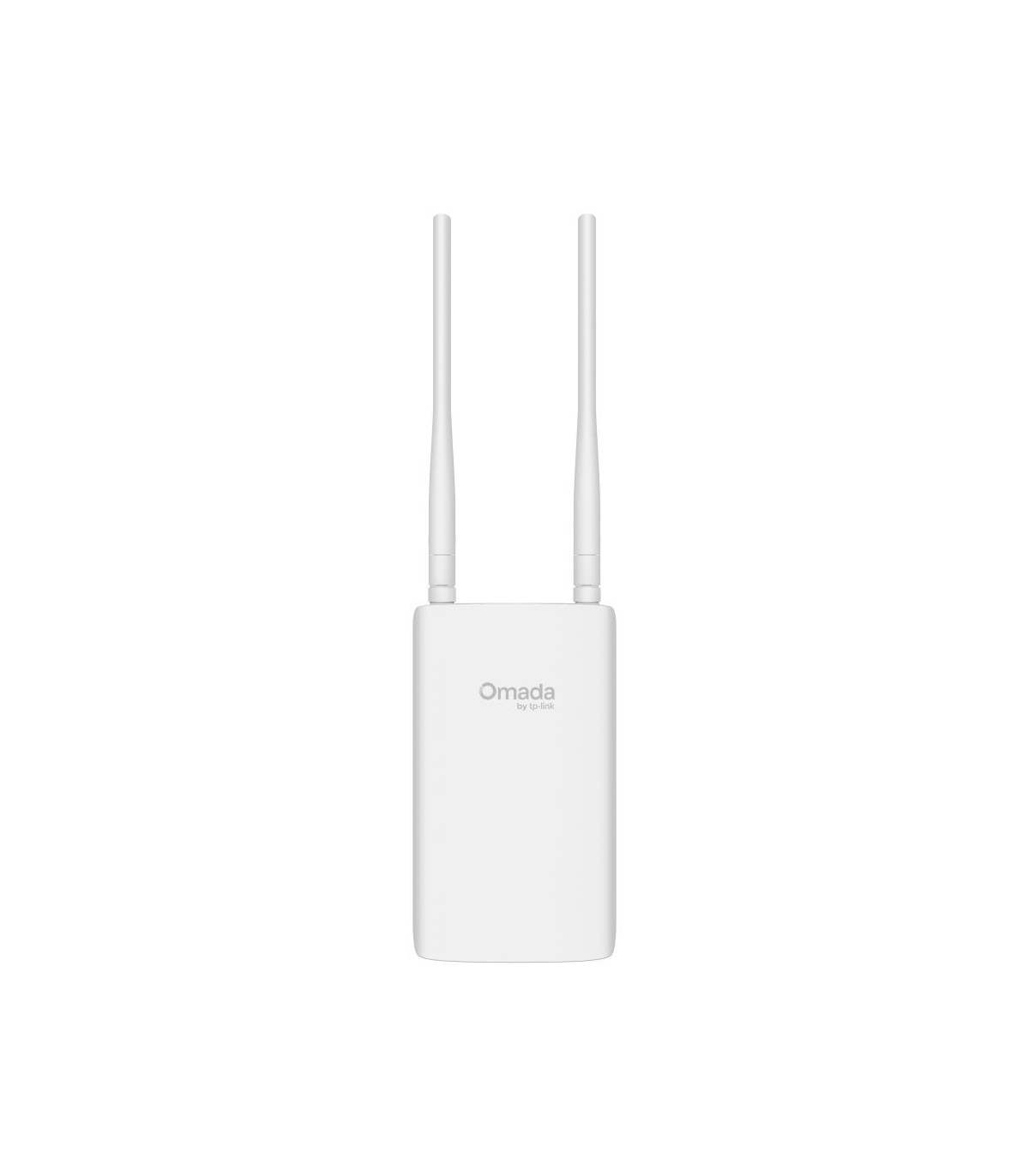

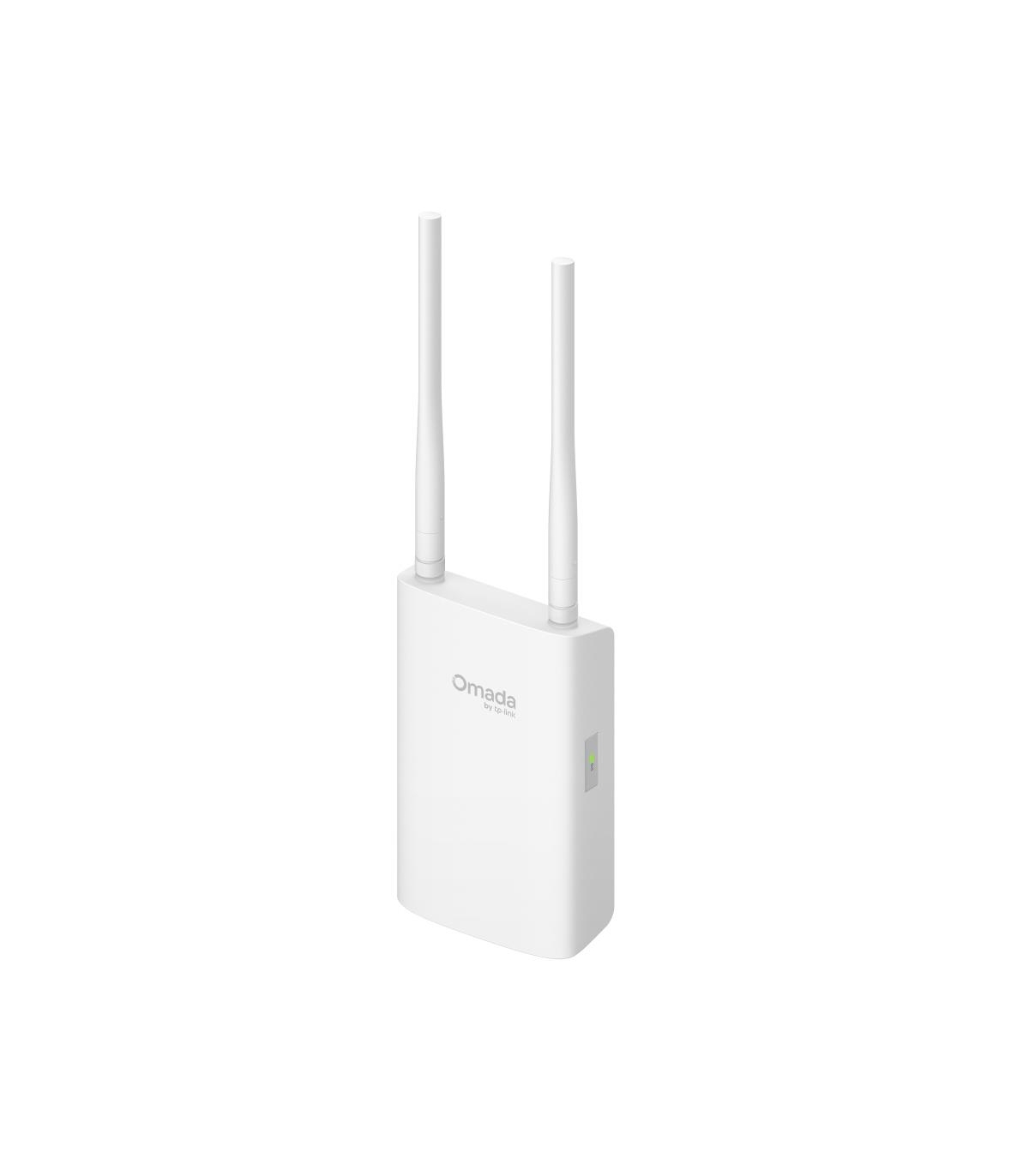

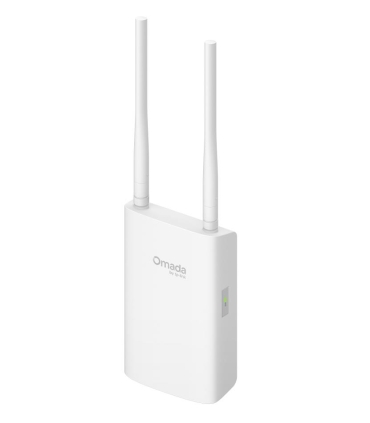

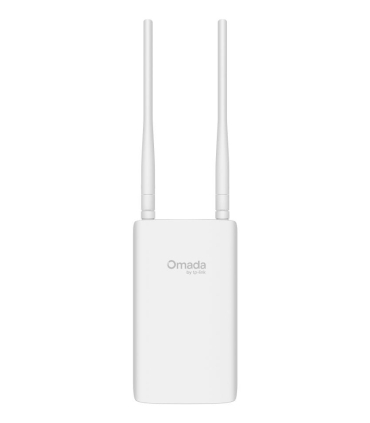

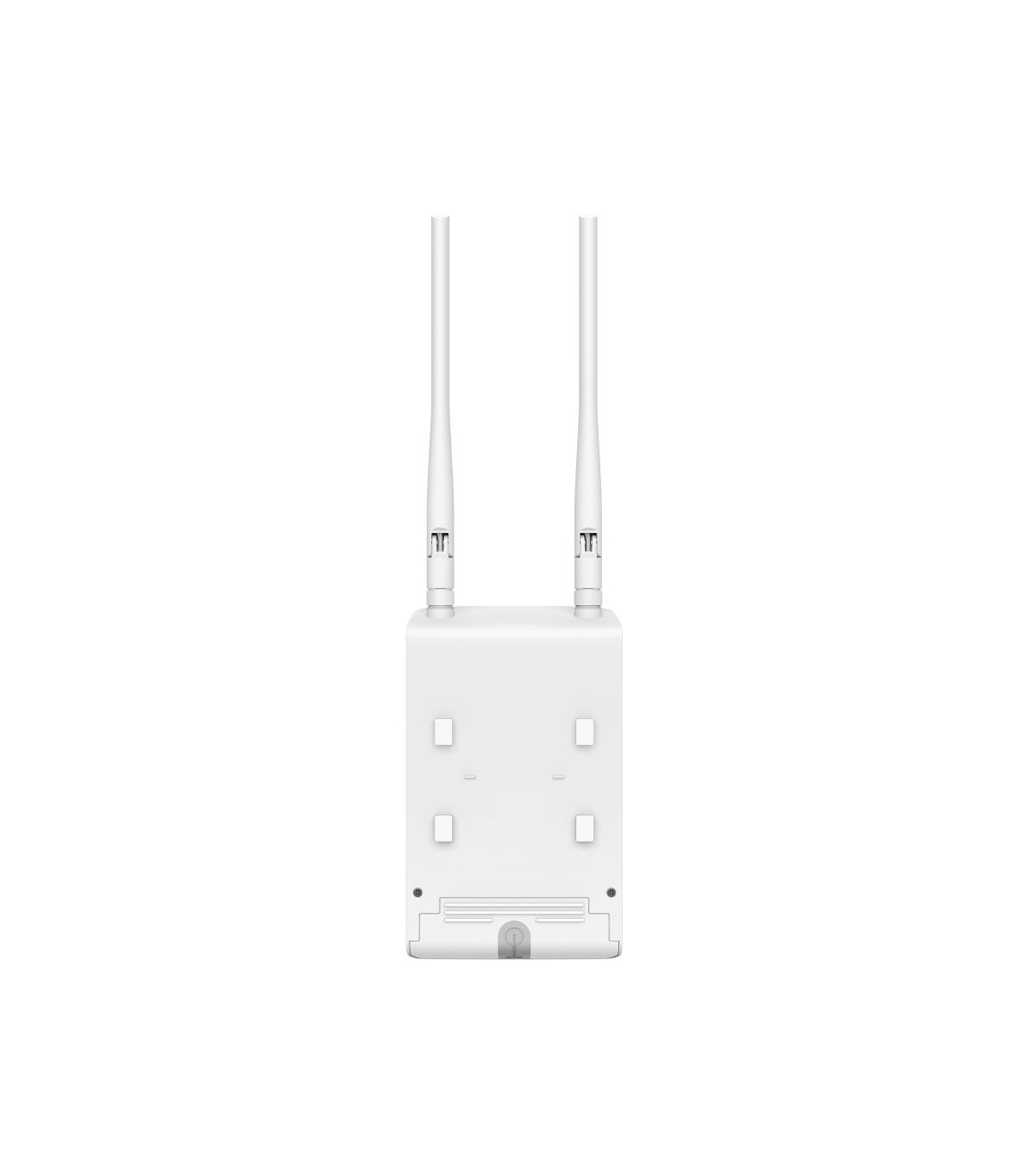

TP-LINK Access Point 1800 Mbit/s 1xLAN ports 4xAntennas quantity EAP603-OUTDOOR

Andmeside

Bluetooth

+

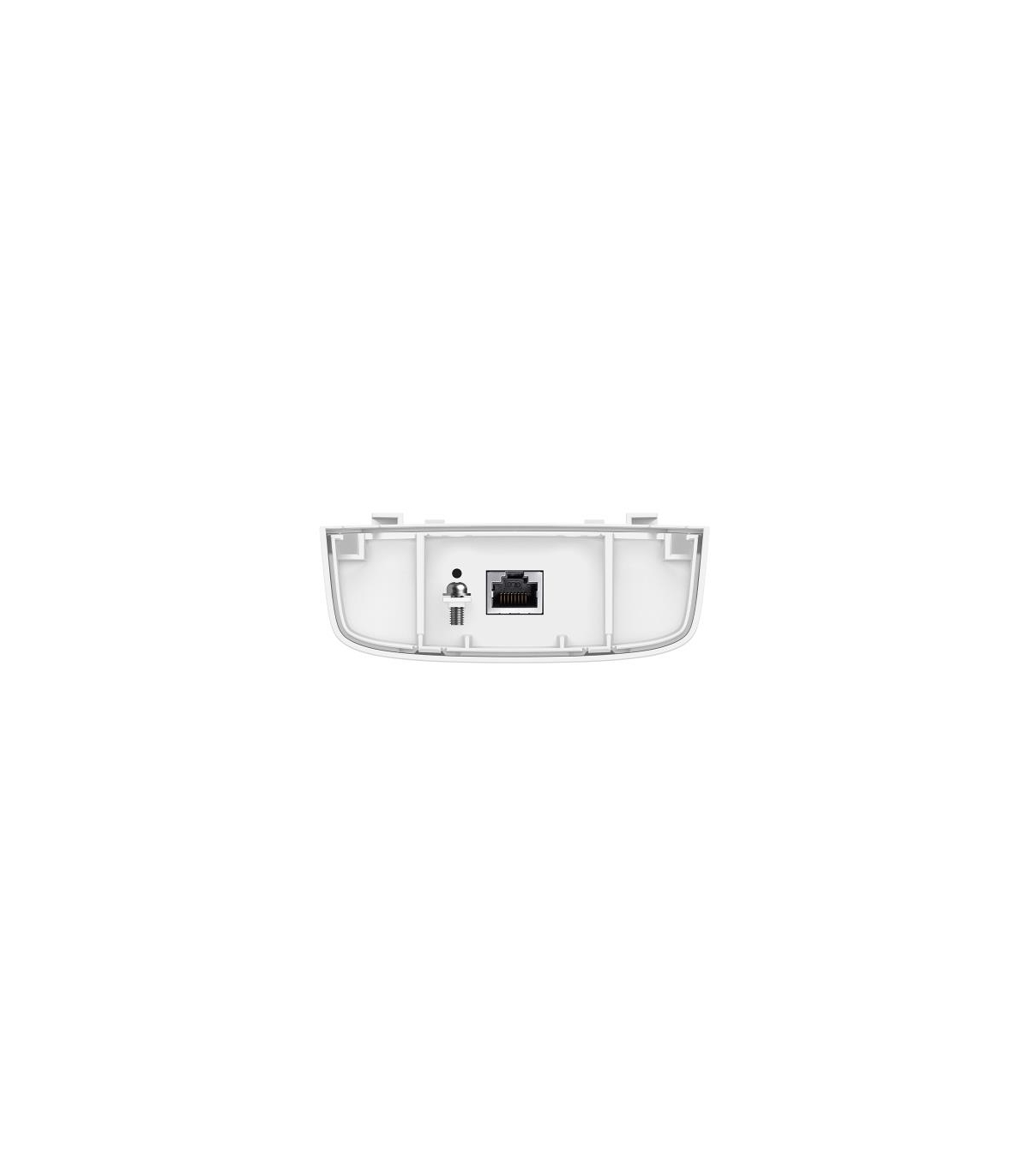

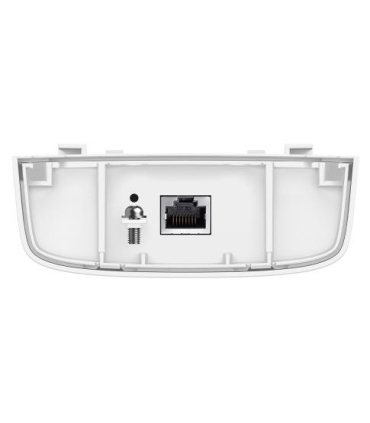

LAN

1

Antenni tüüp

Internal & external

Antennide kogus

4

Ethernet LAN-i andmeedastuskiirused (Mbit/s)

10/100/1000

Mõõtmed

Laius (cm)

23

Muu

Värv

Valge

Muud funktsioonid

Model

EAP603-OUTDOOR

Operating relative humidity (H-H)

10 - 90 %

Power consumption (max)

4.8 W

Input current

0.36 A

Model name (del)

EAP603-Outdoor

Antenna gain level (max)

5 dBi

Networking standards

IEEE 802.11a/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g/IEEE 802.11k/IEEE 802.11n/IEEE 802.11r/IEEE 802.11v/IEEE 802.3at

Security algorithms

EAP/EAP-FAST/EAP-GTC/EAP-MD5/EAP-PEAP/EAP-SIM/EAP-TLS/EAP-TTLS/PEAP/PPSK/SNMP/SSH/WPA2-Enterprise/WPA2-Personal/WPA3-Enterprise/WPA3-Personal/WPA-Enterprise/WPA-Personal

Power over Ethernet (PoE)

Yes

Web-based management

Yes

MAC address filtering

Yes

Maximum data transfer rate

1800 Mbit/s

Guest access

Yes

2.4 GHz

Yes

5 GHz

Yes

International Protection (IP) code

IP65, IP66

Access Control List (ACL)

Yes

Depth

207.5 mm

Height

69.7 mm

Placement

Pole,Wall

Operating temperature (T-T)

-30 - 70 °C

Unit Box Length

0.219

Unit Calculated Volume

0.003342 cubm

Summary

TP-Link Omada EAP603-Outdoor. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1800 Mbit/s. Security algorithms: EAP, EAP-FAST, EAP-GTC, EAP-MD5, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, PEAP, PPSK, SNMP, SSH,.... Ethernet LAN data rates: 10,100,1000 Mbit/s. Powe

IP address filtering

Yes

Power over Ethernet (PoE) type supported

Passive PoE

Antenna direction type

Omni-directional

6 GHz

No

Maximum data transfer rate (2.4 GHz)

573 Mbit/s

Maximum data transfer rate (5 GHz)

1201 Mbit/s

DC voltage range

42.5 - 57 V

Service Set Identifier (SSID) features

Multiple SSIDs

PoE adapter included

Yes

Remote Authentication Dial-In User Service (RADIUS)

Yes

Maximum outdoor range

300 m

Number of SSID supported

16

Backup function

Yes
