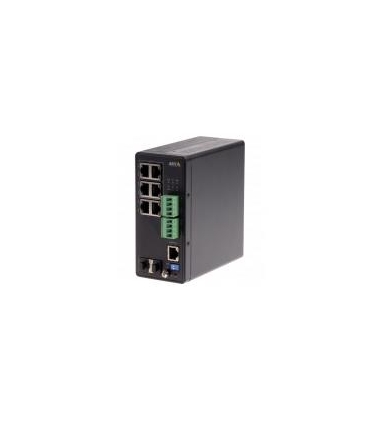

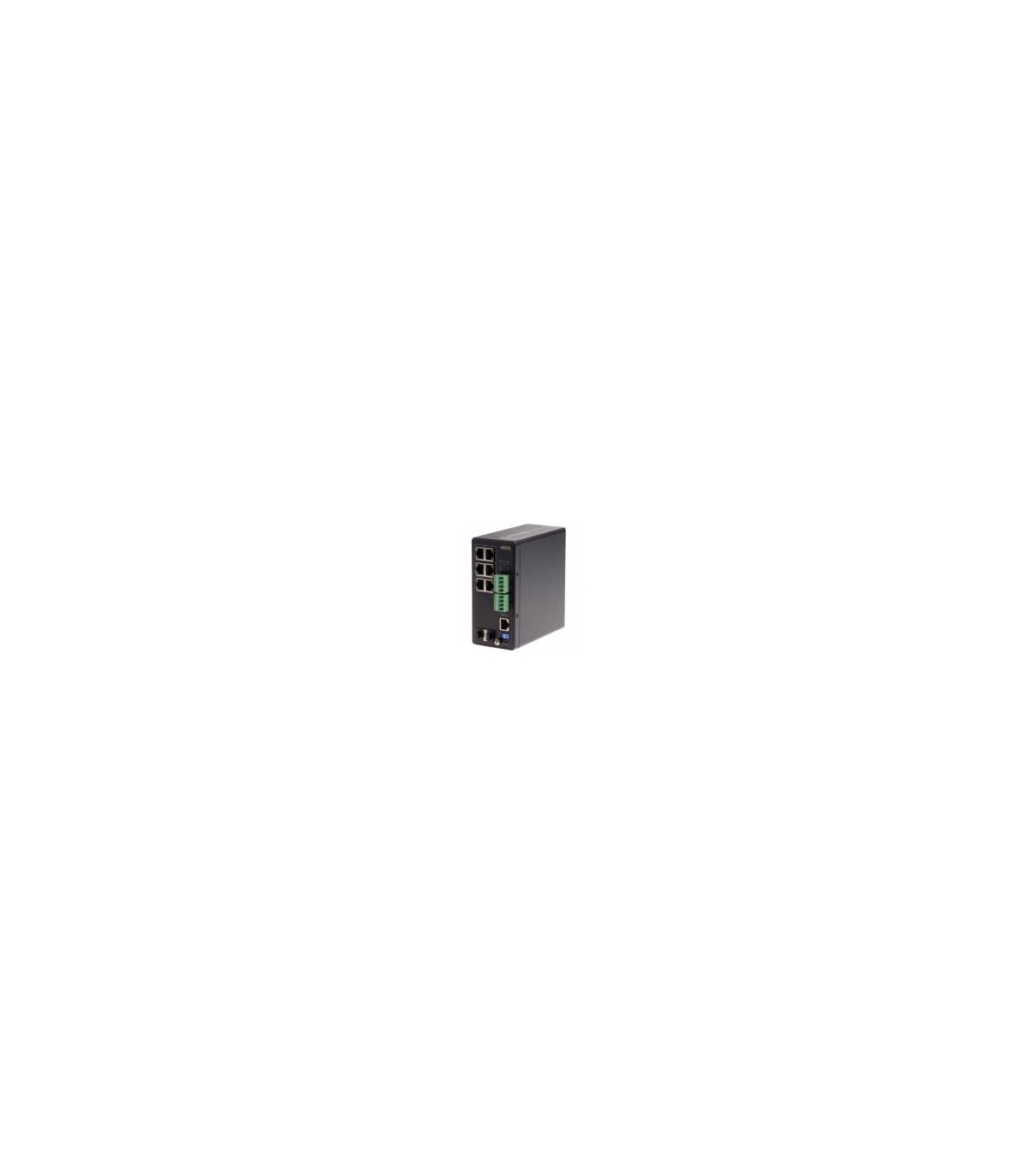

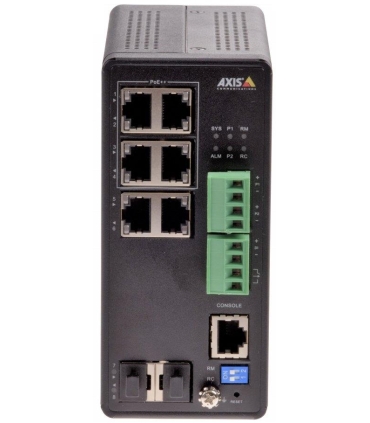

AXIS NET SWITCH 4PORT POE+ T8504-R/01633-001

Muu

Värv

Must

Korpuse materjal

Aluminium

Muud funktsioonid

Sertifikaat (DEL)

EN 55032, EN 55024, FCC, ICES-003, VCCI, RCM AS/NZS CISPR 32, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4 IEC 62236-4, IEC/EN/UL 60950-1, IEC 60068-2-6, IEC 60068-2-27, 60068-2-31, NEMA TS-2-2003

Switching capacity

16 Gbit/s

Networking standards

IEEE 802.1Q/IEEE 802.1x

Security algorithms

HTTPS/SNMP/SNMPv3

Switch type

Managed

Power over Ethernet (PoE)

Yes

Basic switching RJ-45 Ethernet ports quantity

4

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Jumbo frames support

Yes

MAC address table

8000 entries

10G support

No

VLAN support

Yes

Power over Ethernet (PoE) ports quantity

4

Power over Ethernet (PoE) power per port

60 W

Throughput

11.9 Mpps

Total Power over Ethernet (PoE) budget

240 W

Jumbo frames

9216

Console port

RJ-45

Surge protection

Yes

Depth

130 mm

Height

135 mm

Width

62 mm

Weight

600 g

Operating temperature (T-T)

-40 - 75 °C

Mounting brackets included

Yes

Unit Calculated Volume

0.004641 cubm

Summary

Axis 01633-001. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4, Console port: RJ-45. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Network

Harmonized System (HS) code

85176990

DC input voltage

54 - 57 V

Power connector

DC-in jack

Fiber optic connector

SFP

Authentication type

RADIUS
