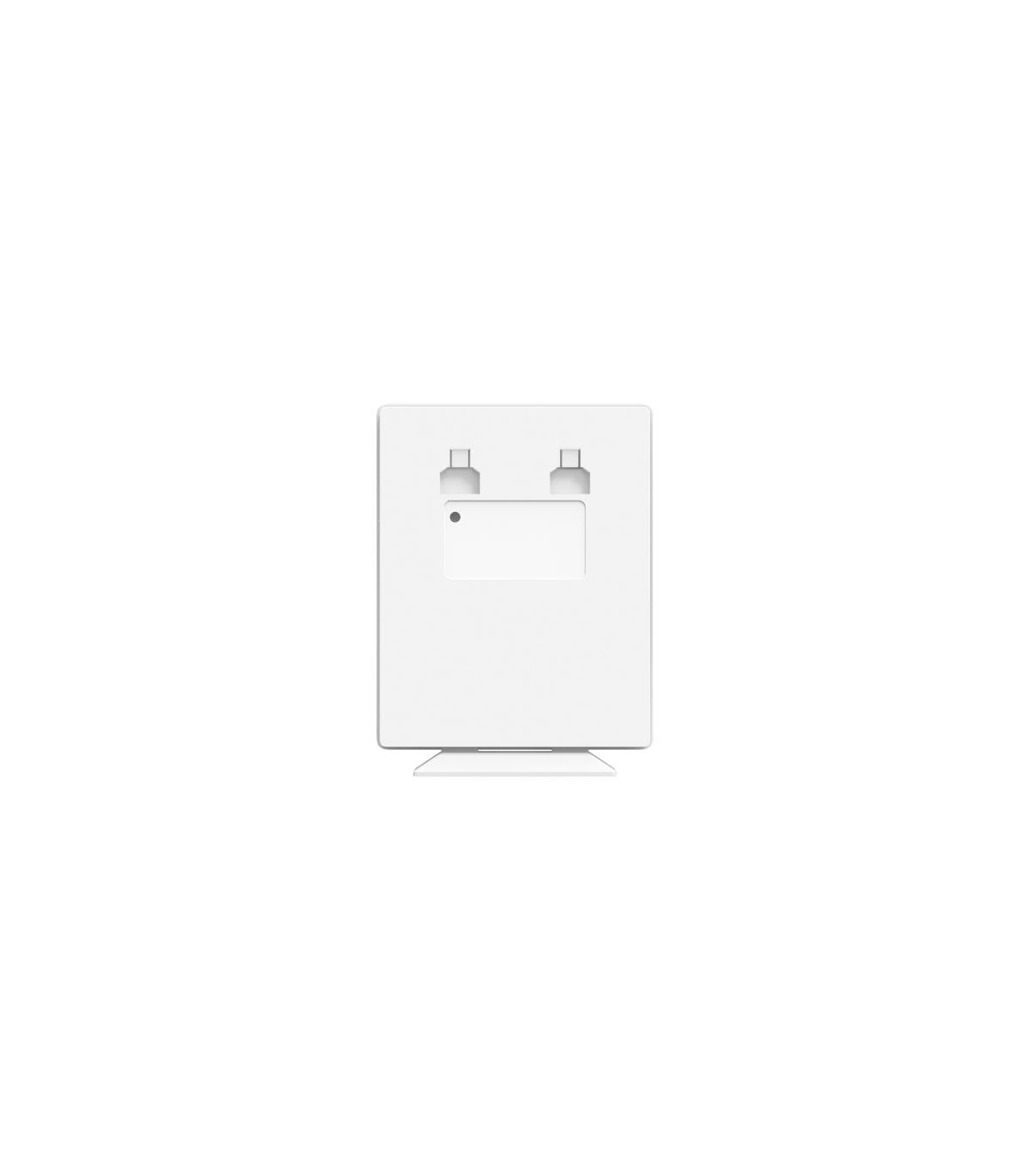

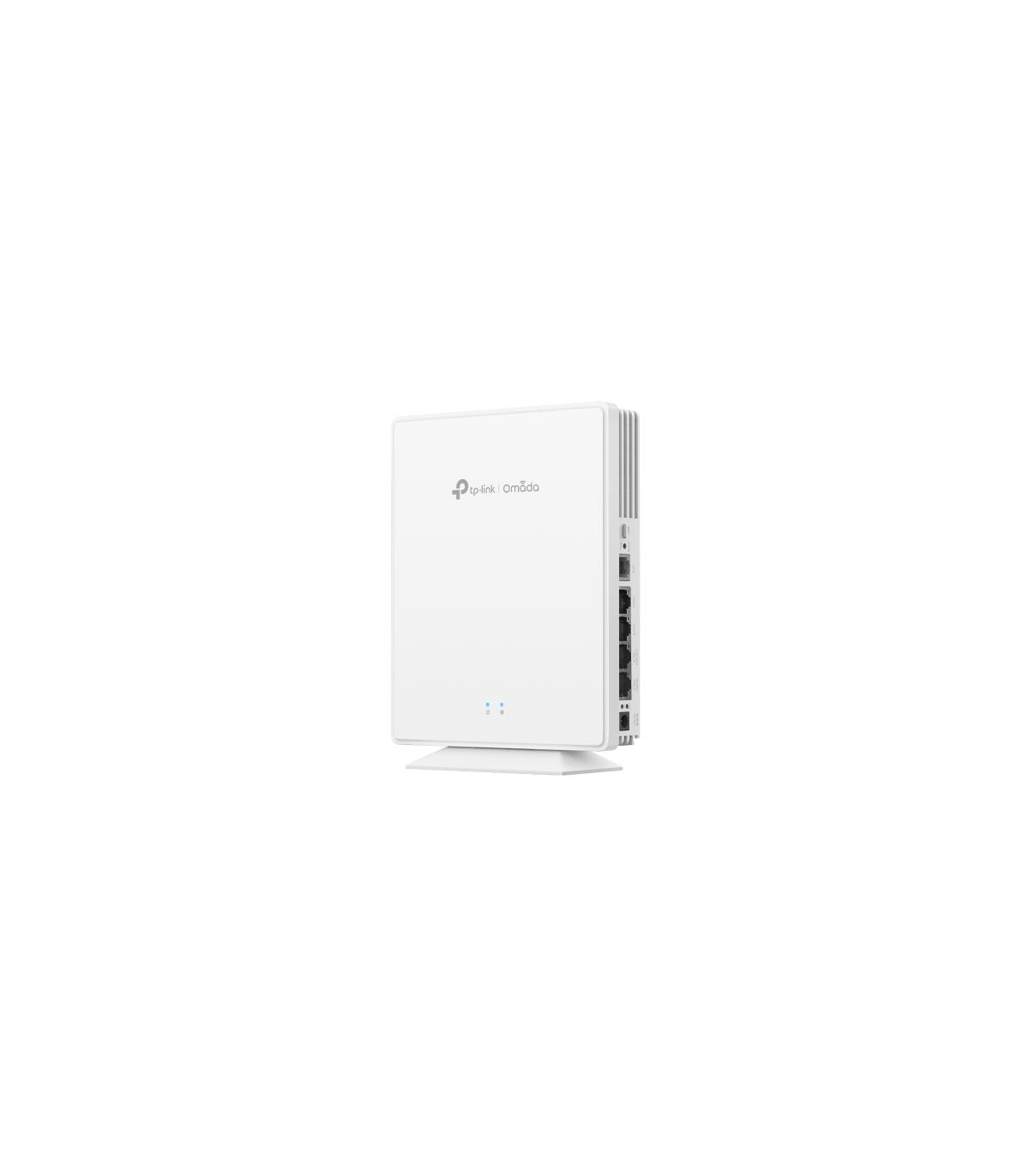

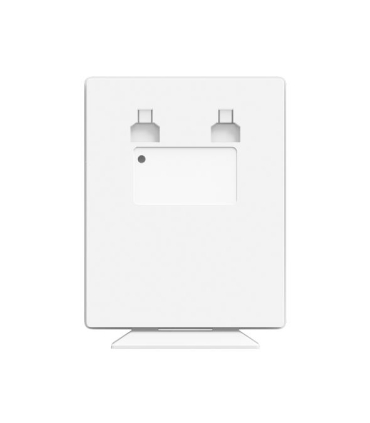

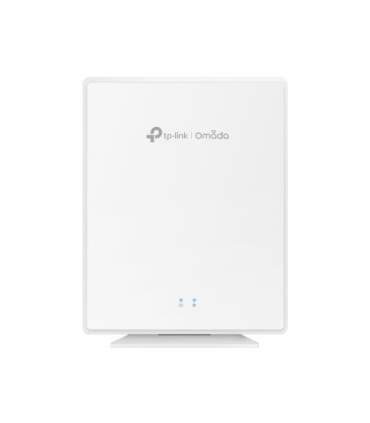

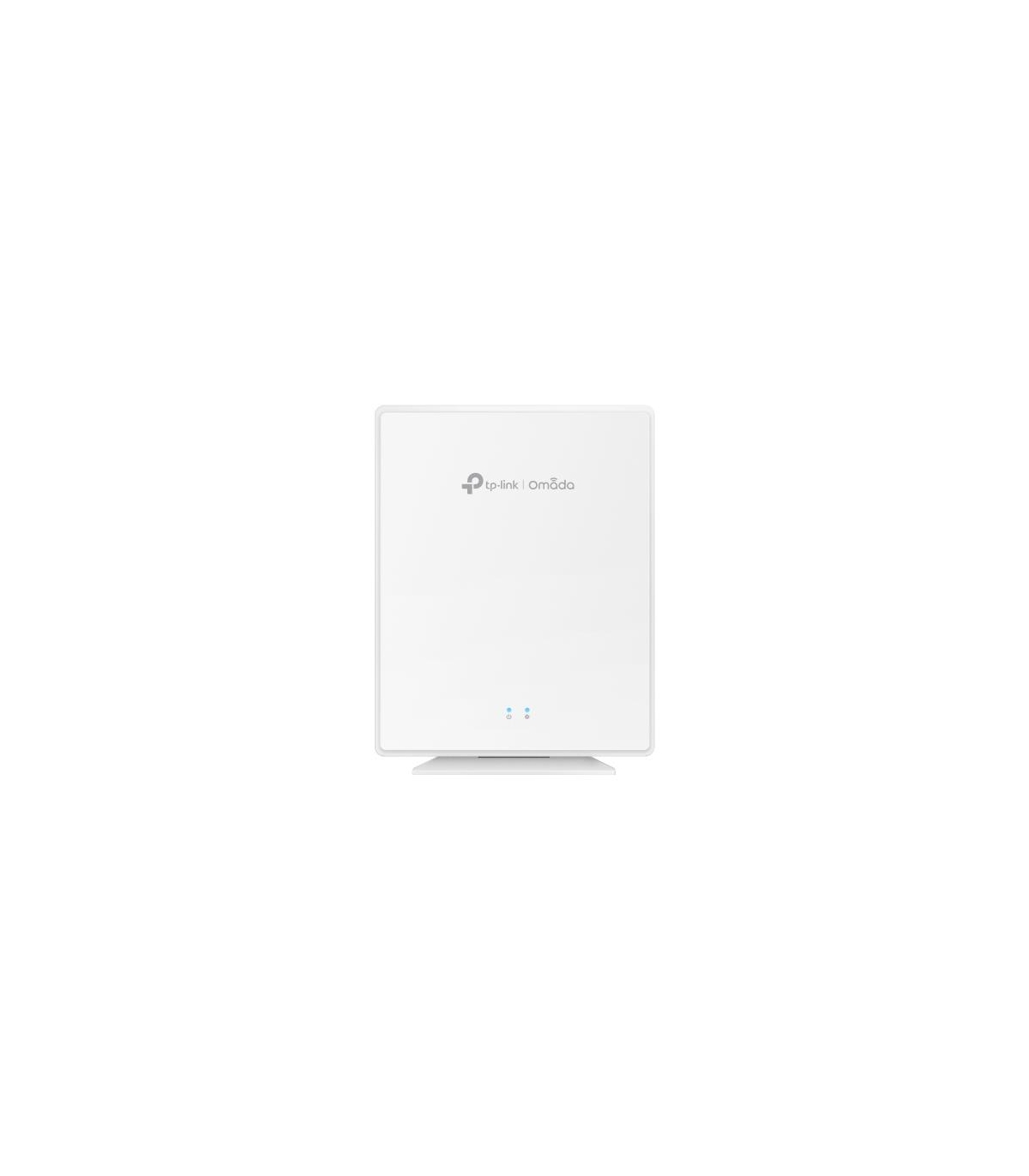

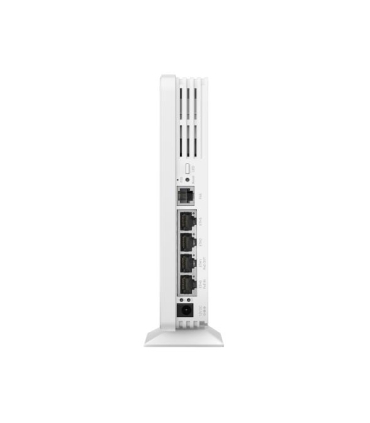

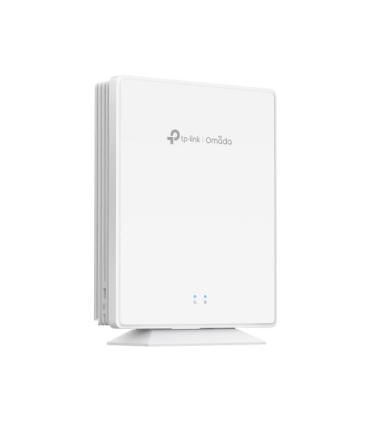

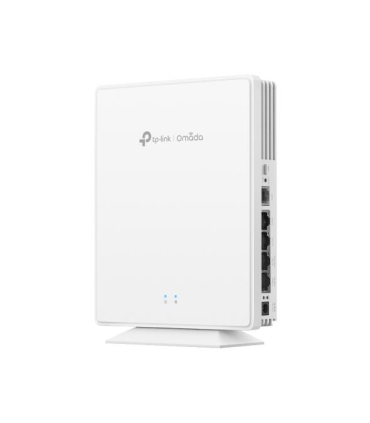

TP-LINK Access Point Omada 3000 Mbps Wi-Fi 6 4x10/100/1000M EAP650-DESKTOP

Tehniline kirjeldus

Töötemperatuur

0 – 40 °C

Andmeside

LAN

4

Antenni tüüp

Internal

Mõõtmed

Laius (cm)

14

Muu

Värv

Valge

Muud funktsioonid

Sertifikaat (DEL)

CE, FCC, RoHS, IC

Operating relative humidity (H-H)

10 - 90 %

Power consumption (max)

17.3 W

Model name (del)

EAP650-Desktop

Antenna gain level (max)

4.7 dBi

Compatible operating systems

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Networking standards

IEEE 802.3af/IEEE 802.3bt

Security algorithms

802.1x RADIUS/SNMP/SNMPv2/SNMPv3/SSH/WPA2-Enterprise/WPA2-Personal/WPA3-Enterprise/WPA3-Personal/WPA-Enterprise/WPA-Personal

Power over Ethernet (PoE)

Yes

Web-based management

Yes

Maximum data transfer rate

2976 Mbit/s

VLAN support

Yes

Quality of Service (QoS) support

Yes

2.4 GHz

Yes

5 GHz

Yes

Access Control List (ACL)

Yes

Rate limiting

Yes

Depth

33 mm

Height

175 mm

Weight

452 g

Placement

Table

Ethernet LAN data rates

1000 Mbit/s

Wireless standard

IEEE 802.11 a/b/g/n/ac/ax

Unit Calculated Volume

0.003491 cubm

Unit Calculated Weight

0.921 kg

Summary

TP-Link EAP650-DESKTOP. 2.4 GHz, 5 GHz, Maximum data transfer rate: 2976 Mbit/s. Security algorithms: 802.1x RADIUS, SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise,.... Ethernet LAN data rates: 1000 Mbit/s. Power over Ethernet (P

Channel bandwidth

160 MHz

6 GHz

No

Airtime Fairness (ATF)

Yes

Band steering

Yes

BeamForming

Yes

Maximum data transfer rate (2.4 GHz)

574 Mbit/s

Maximum data transfer rate (5 GHz)

2402 Mbit/s

Syslog

Yes

DC voltage range

12 V

Service Set Identifier (SSID) features

Multiple SSIDs

Transmitting power (CE)

20 - 29 dBm

Transmitting power (FCC)

26 - 27 dBm

Number of SSID supported

16

Load balancing

Yes

Management platform

Omada
