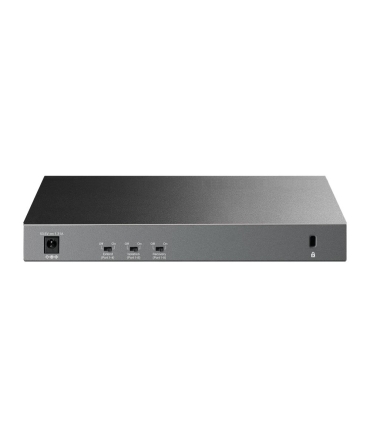

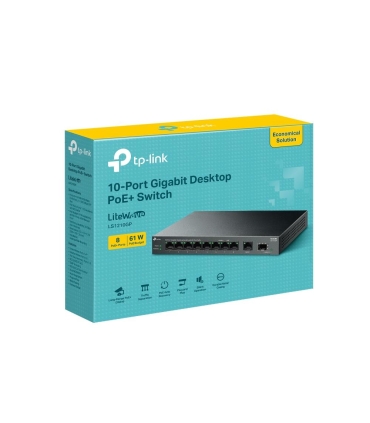

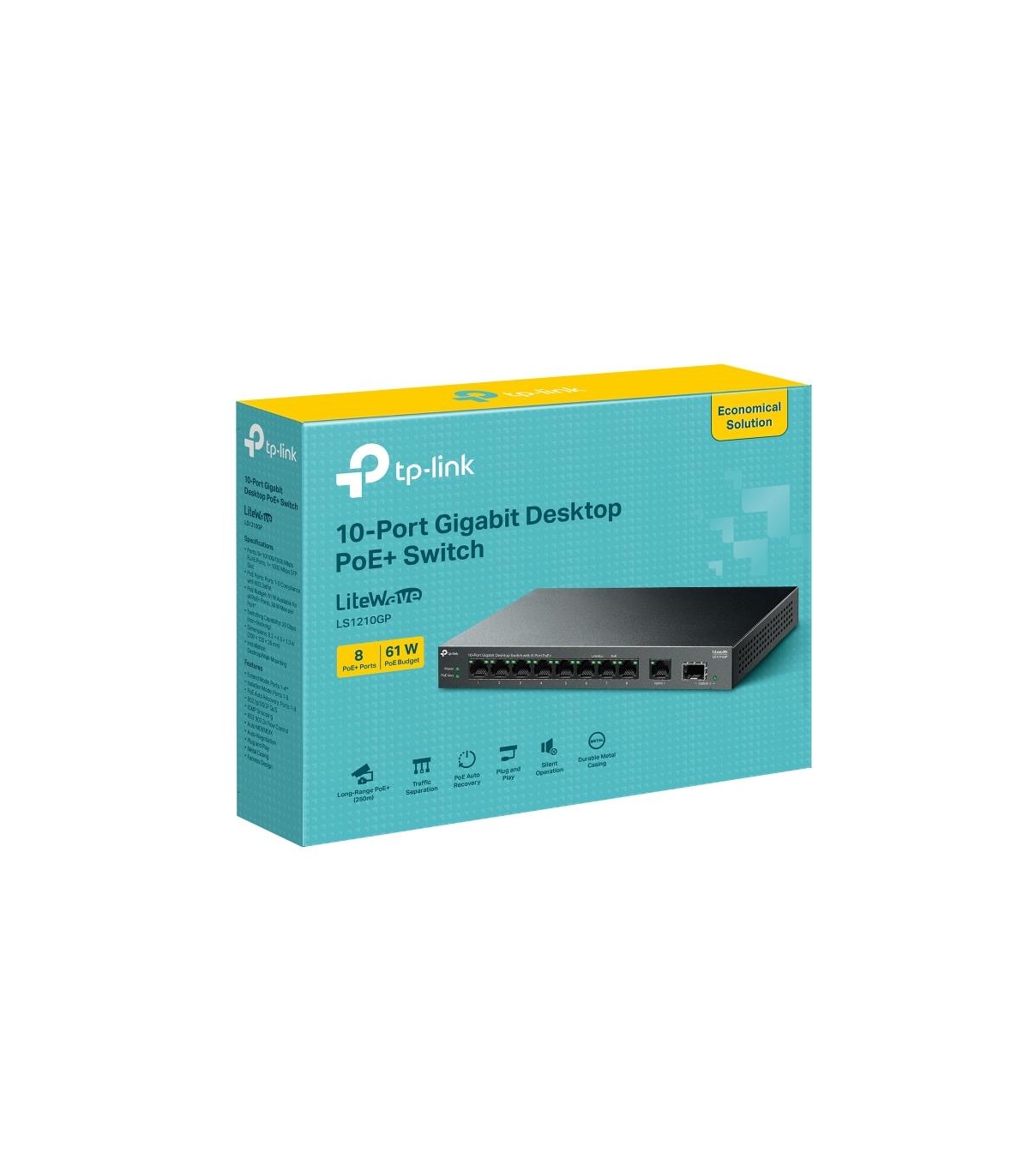

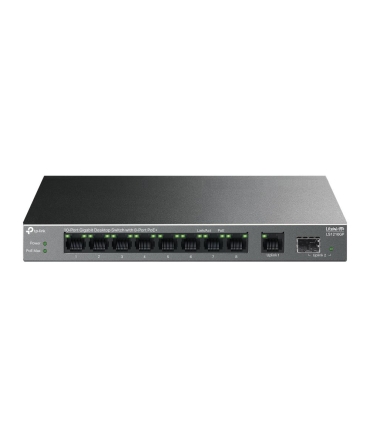

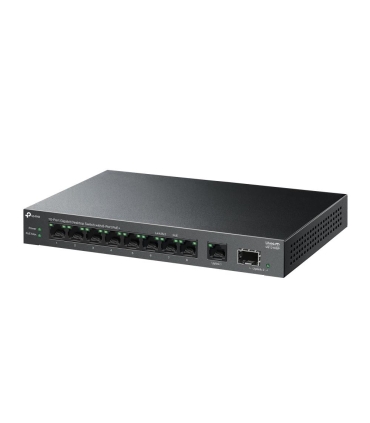

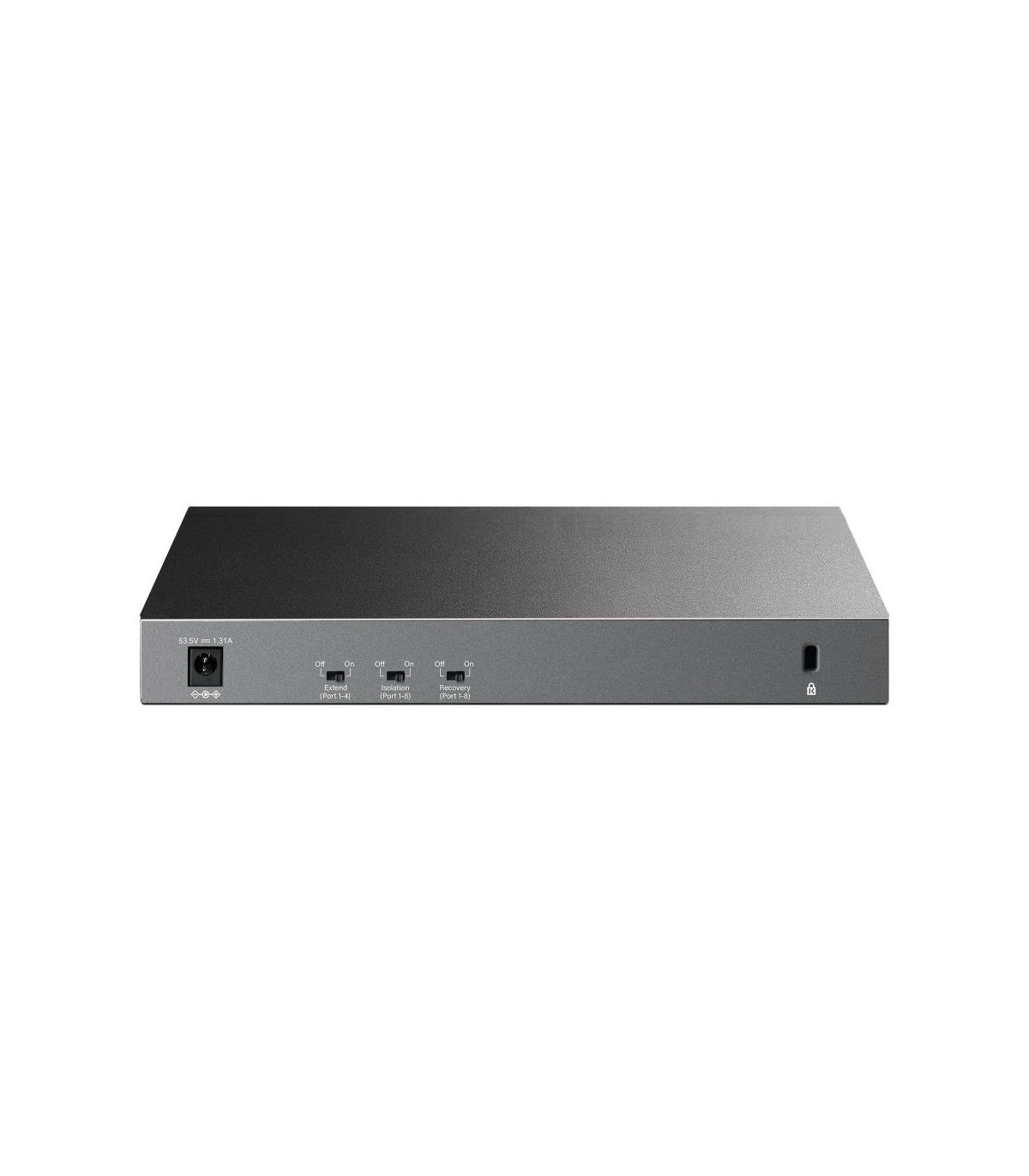

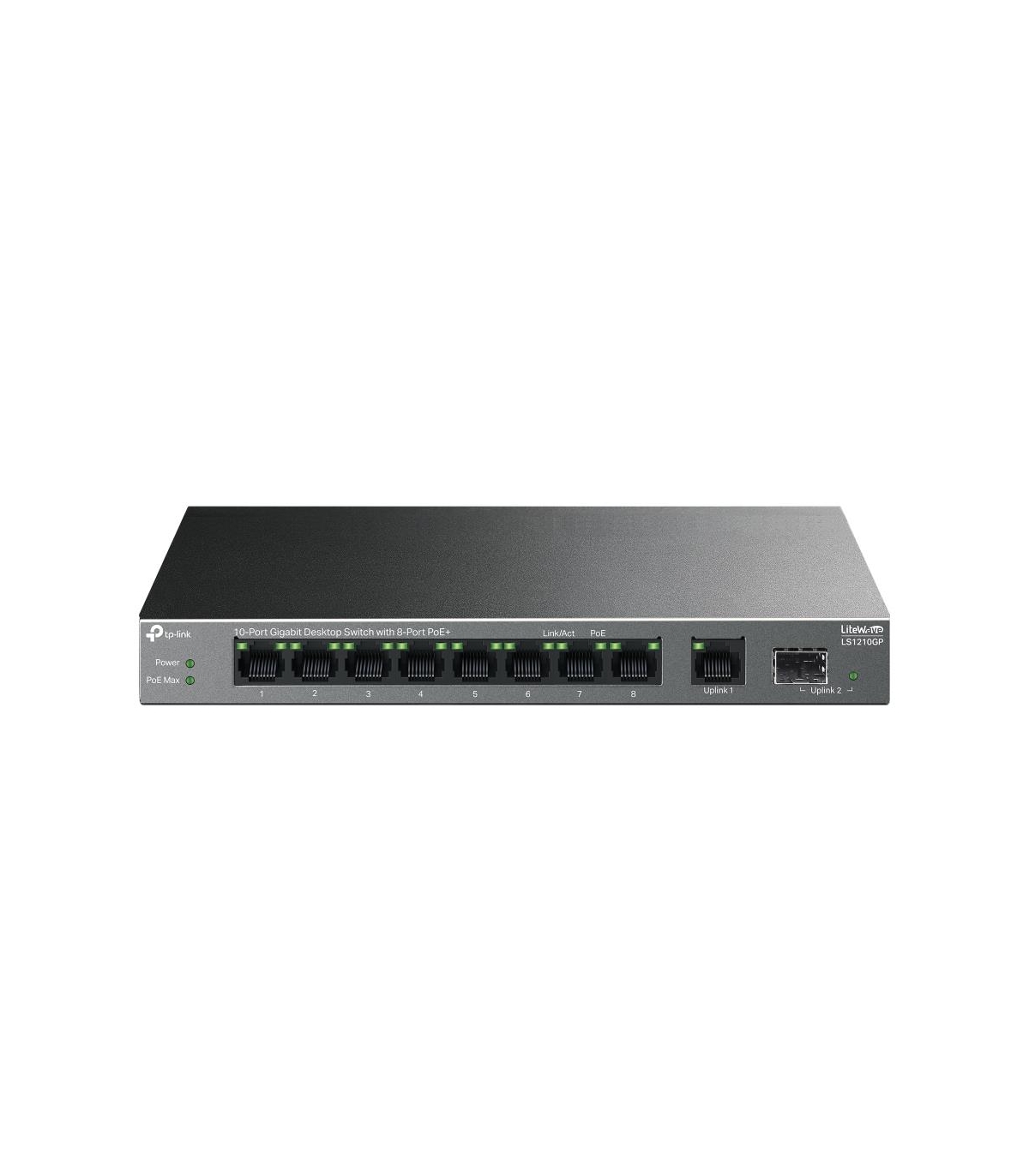

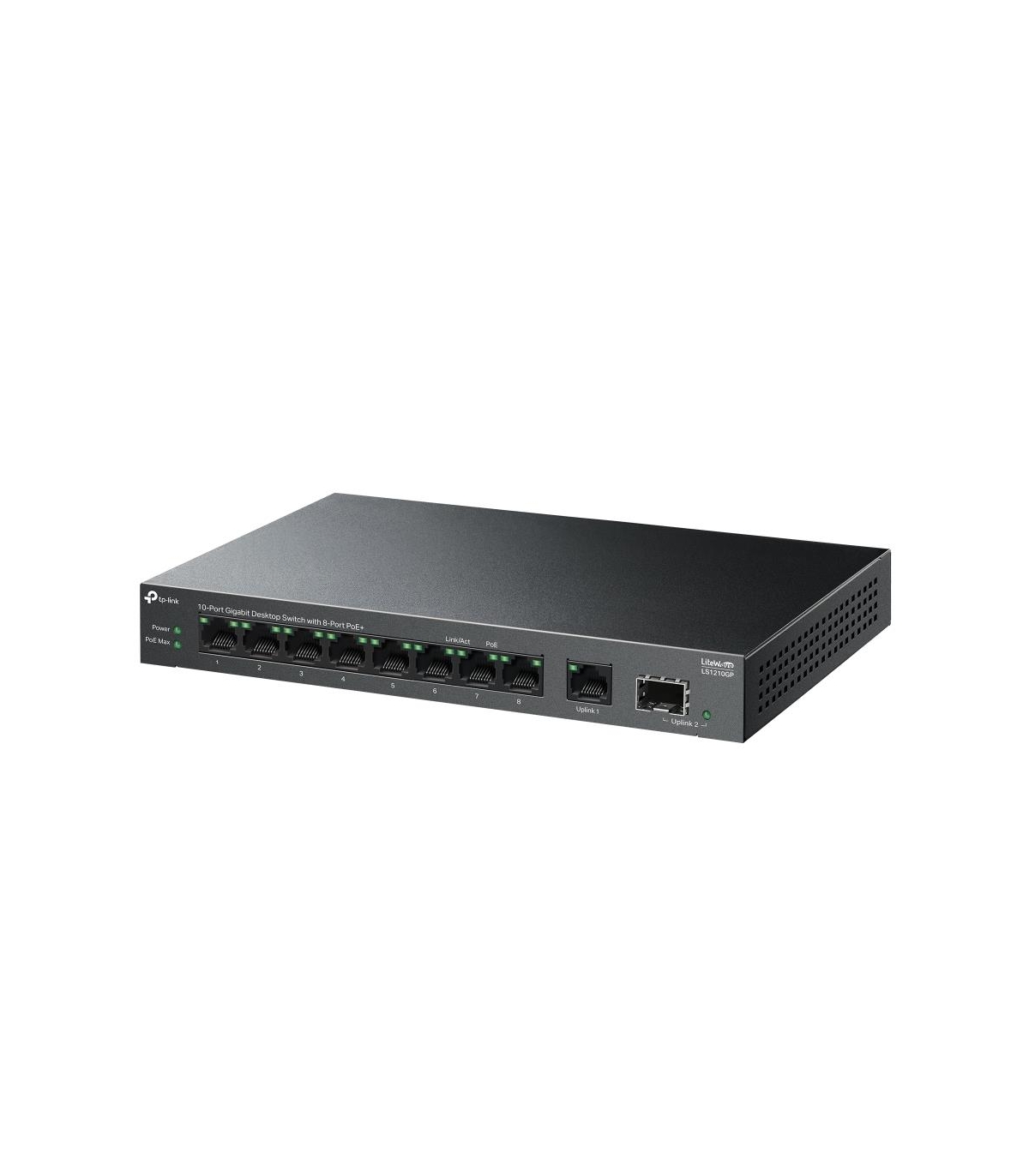

TP-LINK Switch LS1210GP PoE+ ports 8 LS1210GP

Tehniline kirjeldus

Töötemperatuur

0 – 40 °C

PSU komplektis

+

Mõõtmed

Sügavus (mm)

126

Muu

Värv

Must

Muud funktsioonid

Sertifikaat (DEL)

CE, FCC, RoHS

Operating relative humidity (H-H)

10 - 90 %

Power consumption (max)

76.96 W

Model name (del)

LS1210GP

Power Source

DC/PoE

Switching capacity

20 Gbit/s

Networking standards

IEEE 802.1p/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z

Forwarding rate

14.88 Mpps

Power over Ethernet (PoE)

Yes

Basic switching RJ-45 Ethernet ports quantity

9

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Flow control support

Yes

MAC address table

4000 entries

10G support

No

Auto MDI/MDI-X

Yes

Power over Ethernet (PoE) ports quantity

8

Store-and-forward

Yes

Quality of Service (QoS) support

Yes

SFP module slots quantity

1

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

61 W

Auto-negotiation

Yes

Heat dissipation

261.66 BTU/h

Jumbo frames

16000

AC input voltage

220 V

Height

26 mm

Width

209 mm

Unit Calculated Volume

0.005376 cubm

Summary

TP-Link LiteWave 10-Port Gigabit Desktop Switch with 8-Port PoE+. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 9. MAC address table: 4000 entries, Switchi

DC input voltage

53.5 V

Cable types supported

Cat3/Cat4/Cat5/Cat5e
