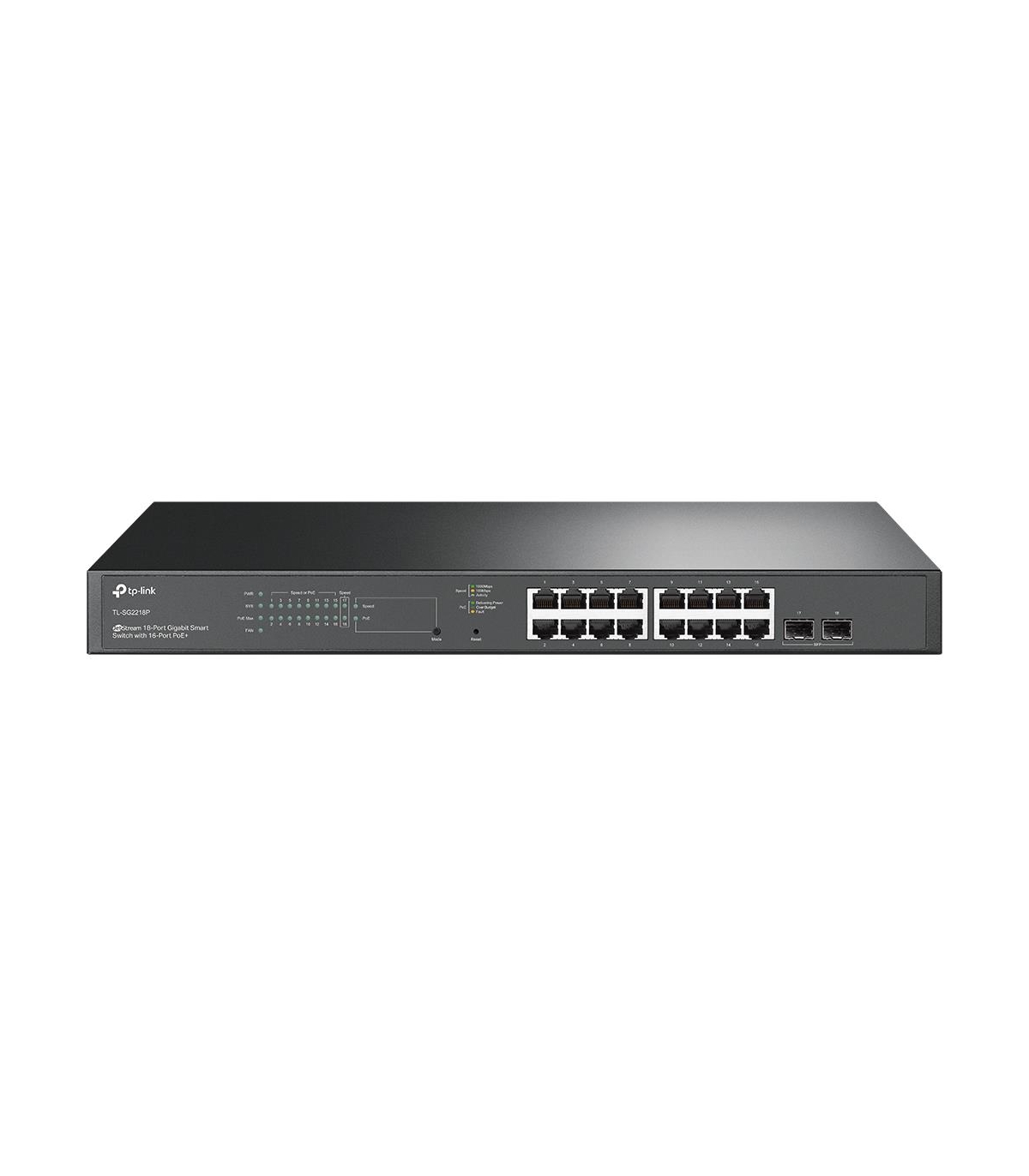

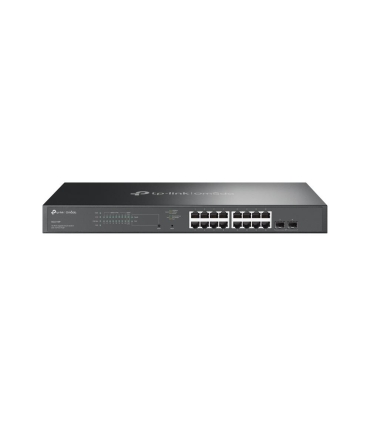

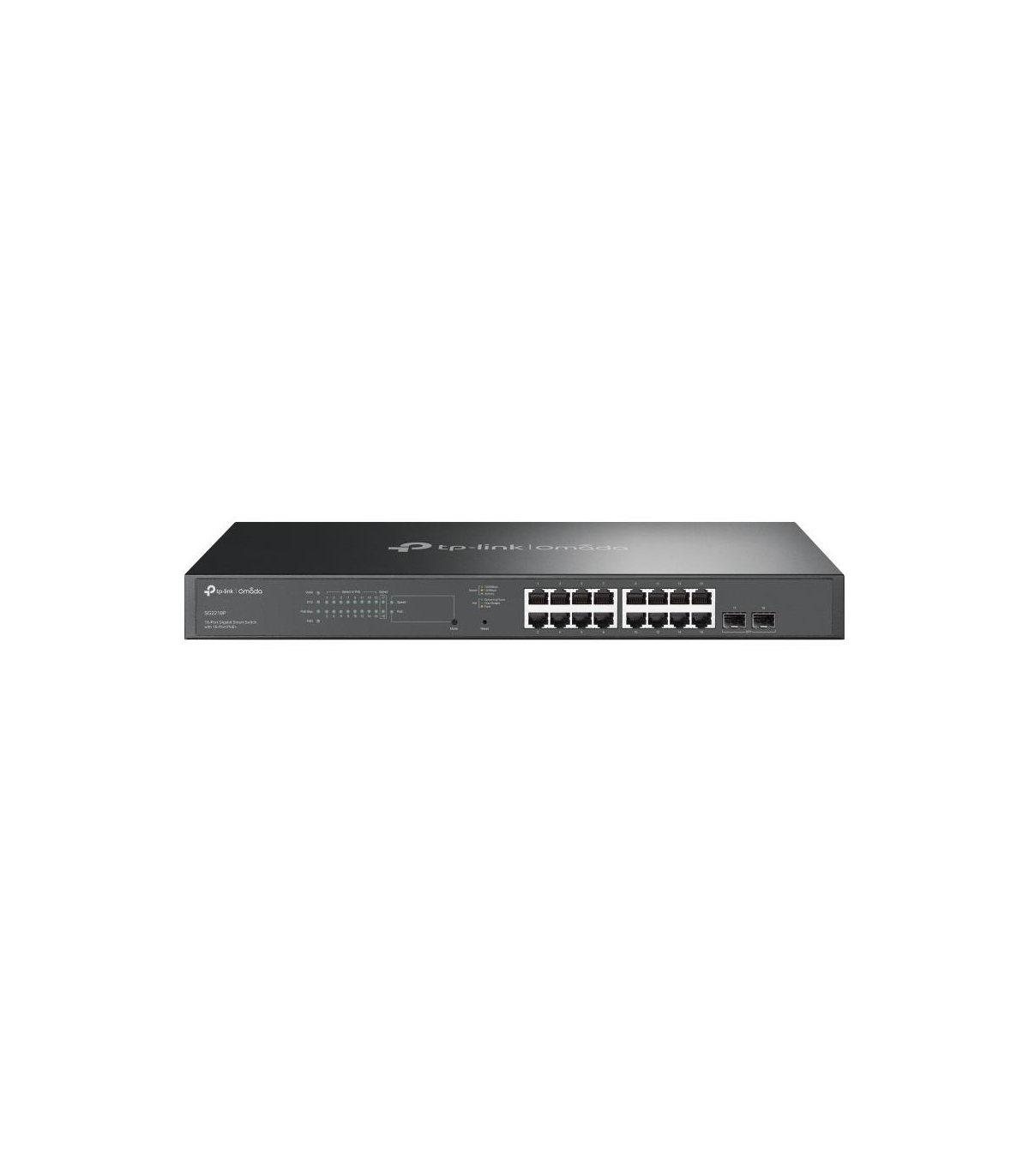

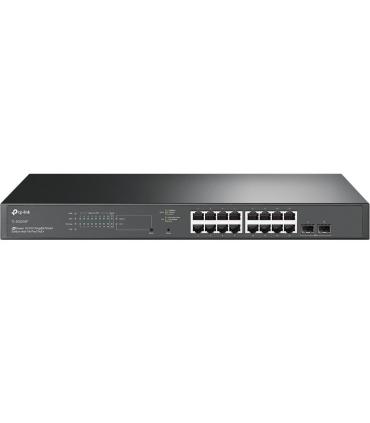

TP-LINK Switch JetStream TL-SG2218P Desktop/pedestal 16x10Base-T / 100Base-TX / 1000Base-T 2xSFP PoE+ ports 16 150 Watts TL-SG2

Tehniline kirjeldus

PSU komplektis

+

Mõõtmed

Sügavus (mm)

180

Muu

Värv

Must

Muud funktsioonid

Sertifikaat (DEL)

CE, FCC, RoHS

Cables included

LAN (RJ-45)

Operating relative humidity (H-H)

10 - 90 %

Power consumption (max)

181.4 W

Model name (del)

TL-SG2218P

Form factor

1U

Power Source

DC/PoE

Switching capacity

26.78 Gbit/s

Networking standards

IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z

Switch type

Managed

Rack mounting

Yes

Forwarding rate

26.78 Mpps

Power over Ethernet (PoE)

Yes

Web-based management

Yes

Basic switching RJ-45 Ethernet ports quantity

16

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Flow control support

Yes

Jumbo frames support

Yes

MAC address filtering

Yes

MAC address table

8000 entries

Packet buffer memory

4.1 MB

10G support

No

Auto MDI/MDI-X

Yes

Broadcast storm control

Yes

Multicast support

Yes

Switch layer

L2/L2+

VLAN support

Yes

Quality of Service (QoS) support

Yes

SFP module slots quantity

2

Total Power over Ethernet (PoE) budget

150 W

Auto-negotiation

Yes

Heat dissipation

619.06 BTU/h

Jumbo frames

9

Access Control List (ACL)

Yes

Link aggregation

Yes

Static port security

Yes

IP routing

Yes

Rate limiting

Yes

MIB support

MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIBs, RMON MIB(RFC1757, rmon 1,2,3,9)

Spanning tree protocol

Yes

System event log

Yes

ARP inspection

Yes

Height

44 mm

Width

440 mm

Operating temperature (T-T)

0 - 50 °C

Ethernet LAN data rates

10,100,1000 Mbit/s

SSH/SSL support

Yes

Series

JetStream

Summary

TP-Link Omada 18-Port Gigabit Smart Switch with 16-Port PoE+. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000

DHCP features

DHCP client/DHCP relay/DHCP snooping

Loop protection

Yes

Configuring Location Settings (CLI)

Yes

Policy-based routing

Yes

Authentication

MAC-based authentication,Port-based authentication

BPDU filtering/protection

Yes

Multicast features

Multicast forwarding
