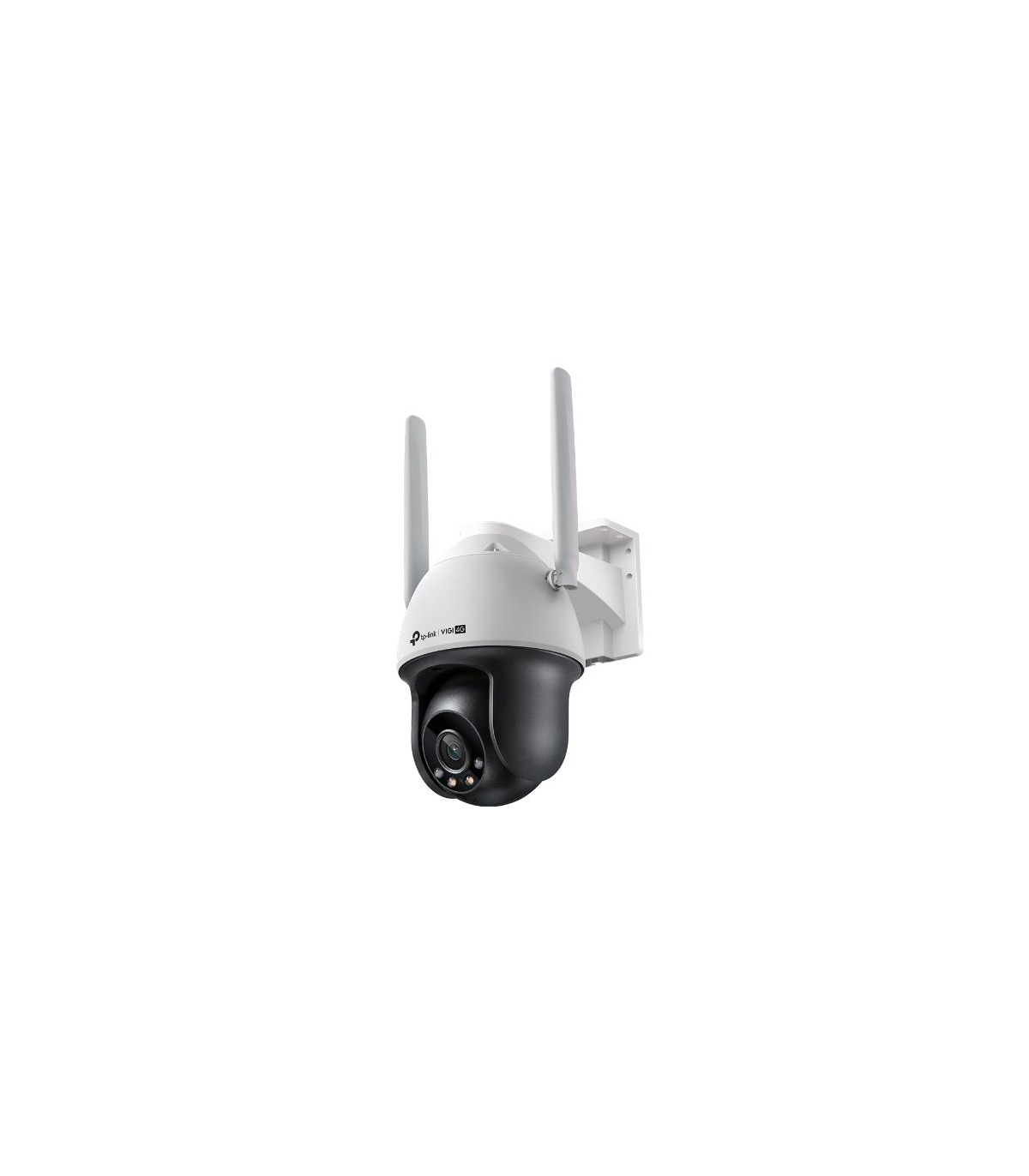

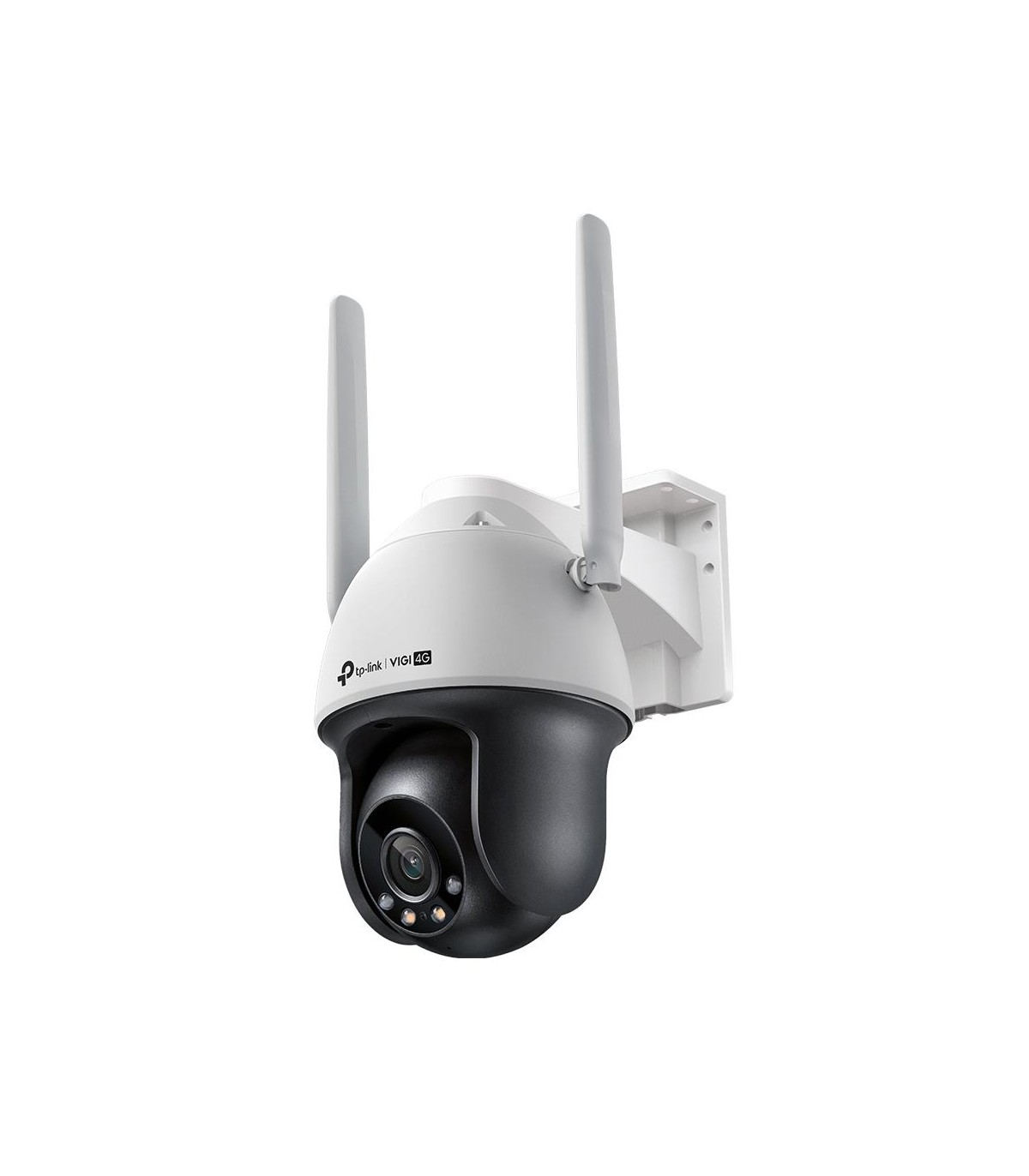

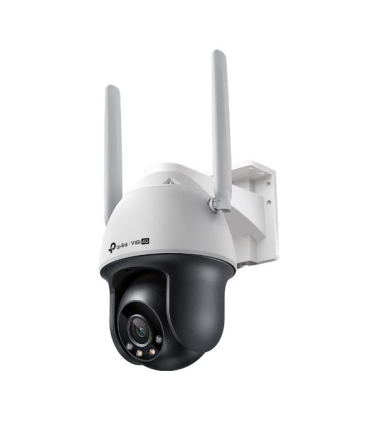

TP-LINK WRL CAMERA 4MP PAN/TILT/VIGI C540-4G(4MM)

Tehniline kirjeldus

Mürasummutus

+

Kinnitustüüp

Ceiling/wall

Öönägemine

+

Videopakkimise formaadid

H.264/H.264+/H.265/H.265+

Liidesed

Ühendusliides

Juhtmega

Integreeritud kaardilugeja

+

Mälukaardi pesa

MicroSD

Andmeside

4G

+

3G

+

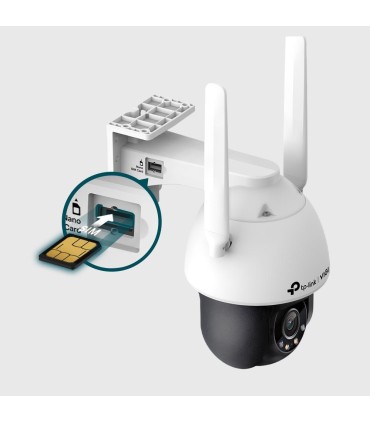

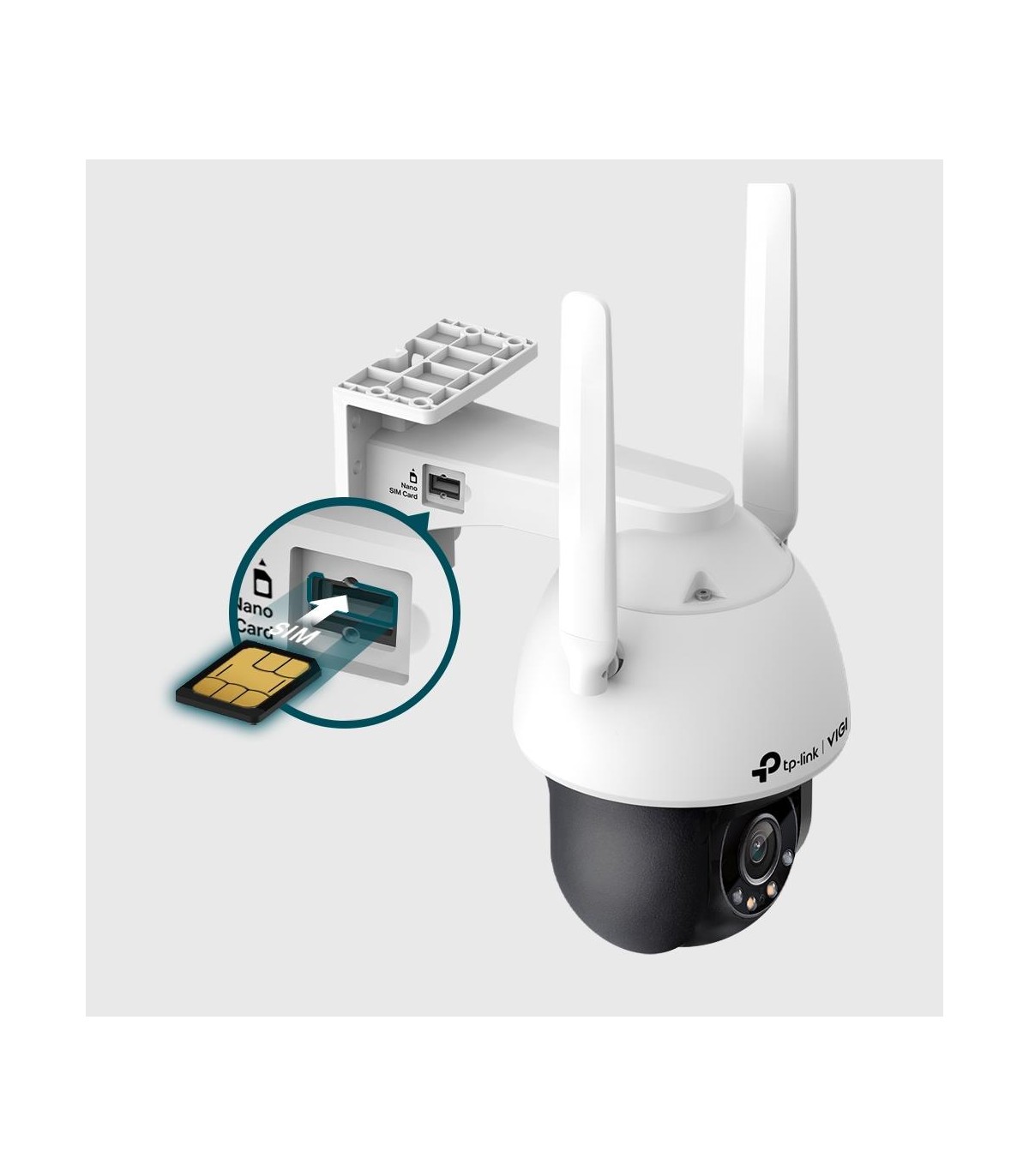

SIM-kaardi tüüp

Nano SIM

LAN

1

+

Multimeedia

Mikrofon

+

Sisseehitatud kõlar(id)

+

Mõõtmed

Sügavus (mm)

182

Kaal (kg)

0,69

Muu

Korpuse materjal

Plastic

Sensor

Sensori tüüp

CMOS

Muud funktsioonid

Sertifikaat (DEL)

RCM, BSMI, VCCI, NTRA, KC

Maximum resolution

2560 x 1440 pixels

Type (DEL)

IP security camera

Supported graphics resolutions (del)

1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440/320 x 240/352 x 288/640 x 480 (VGA)

Placement supported

Indoor & outdoor

Model name (del)

VIGI C540-4G

Form factor

Turret

Ethernet interface type

Fast Ethernet

Night vision distance

30 m

Supported network protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

Zoom capability

Yes

Wide Dynamic Range (WDR)

Yes

International Protection (IP) code

IP66

Sample Rate

8 kHz

Day/night mode

Yes

Height

201 mm

Package weight

1160 g

Width

120 mm

Package depth

213 mm

Package height

243 mm

Package width

163 mm

Bit rate

256 Kbps - 4 Mbps

Maximum memory card size

256 GB

Operating temperature (T-T)

-30 - 60 °C

Storage relative humidity (H-H)

0 - 95 %

Storage temperature (T-T)

-40 - 60 °C

Signal-to-Noise Ratio (SNR)

52 dB

Number of illumination LEDs

4

Frame rate

30 fps

Lens diameter

4 mm

Built-in HDD

No

Unit Calculated Volume

0.009408 cubm

Summary

TP-Link VIGI C540-4G. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Turret. Lens viewing angle, horizontal: 80°, Lens viewing angle

Product colour

Black/White

Tilt angle range

0 - 120 °

Compliance certificates

CE/RoHS

Camera shutter speed

1/3 - 1/10000 s

Optical sensor size

1/3.06 "

Live view

Yes

Maximum aperture number

1.6

Minimum aperture number

1.6

Total megapixels

4 MP

Number of lenses

1

LED type

IR/White

DC output voltage

12

Auto patrol mode

Yes

Infrared (IR) cut-off filter

Yes

Luminous flux

0.005 lm

Camera pan control

Yes

Camera tilt control

Yes

Lens viewing angle, diagonal

94 °

Lens viewing angle, horizontal

80 °

Lens viewing angle, vertical

43 °

Number of Privacy masking areas

4

Pan range

0 - 348 °

Pan speed

44 °/sec

Tilt speed

44 °/sec

Detect distance

80 m

Identify distance

8 m

Observe distance

33 m

Recognize distance

16 m

3D positioning

Yes

Bit rate control

Constant Bit Rate (CBR),Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Digital Wide Dynamic Range (DWDR)

Yes

Image quality adjustment

Brightness/Contrast/Mirror/Saturation/Sharpness

Noise reduction technology

3D noise reduction

Privacy masking

Yes

Video streaming

Yes

Bit rate range

64 - 64 Kbit/s

Number of simultaneous live view channels

3 channels

SIM card slot

Yes

Digest authentication

Yes

HTTPS encryption

Yes

Intelligent Video Surveillance (IVS) system features

Human detection

IP address filtering

Yes

Mirror

Yes

Behavior analysis

Intrusion detection,Line crossing detection

Basic event

Motion Detection, Camera Tampering Detection, Exception
