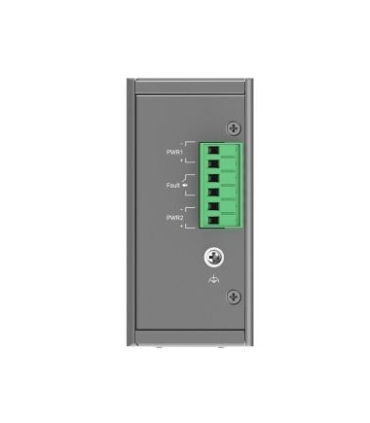

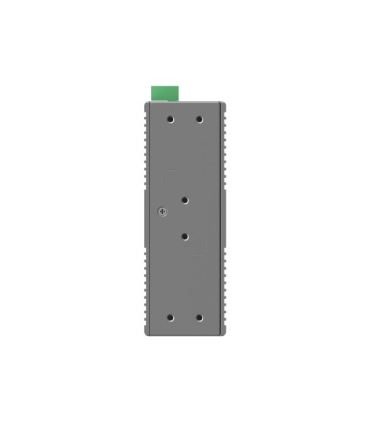

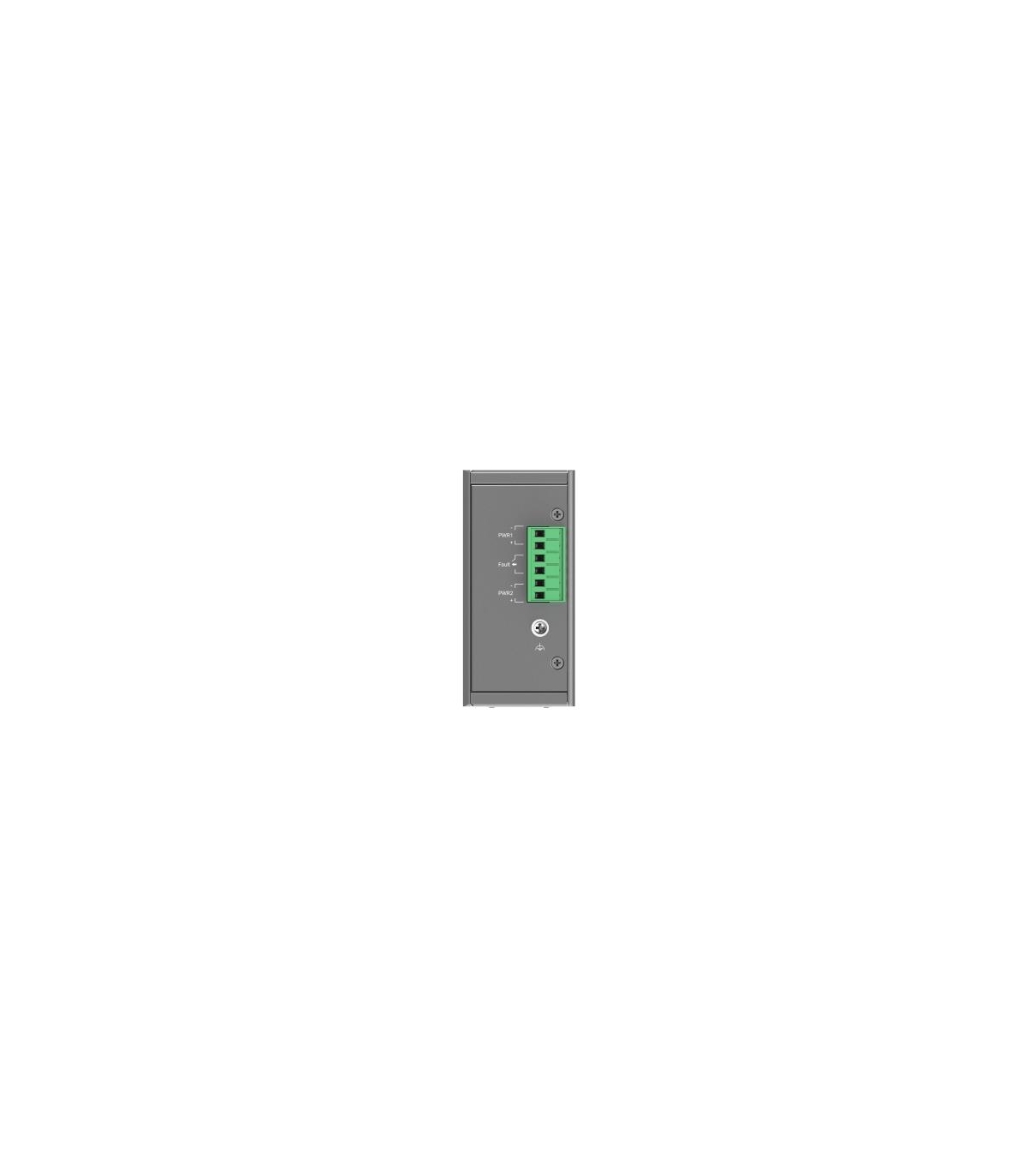

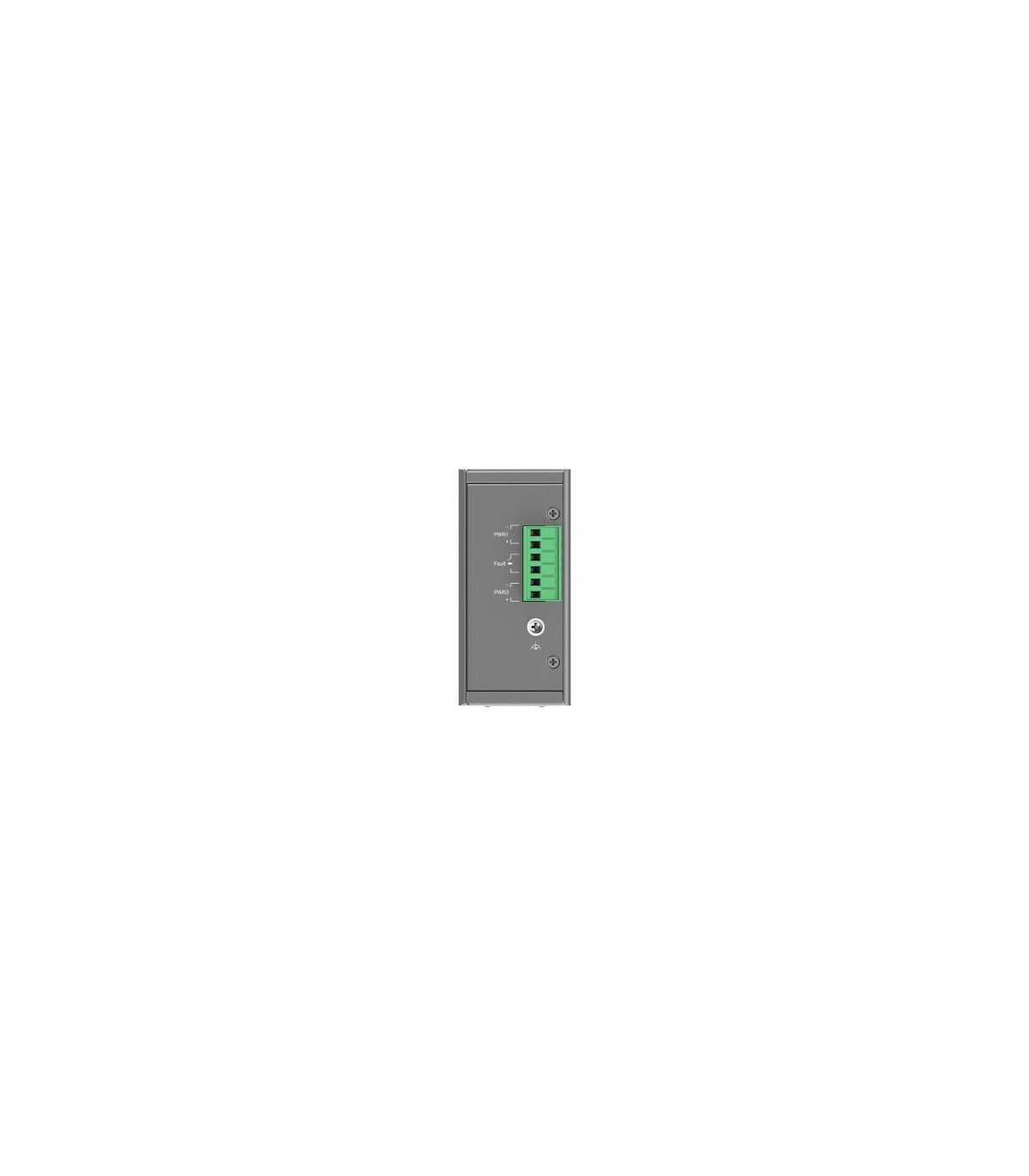

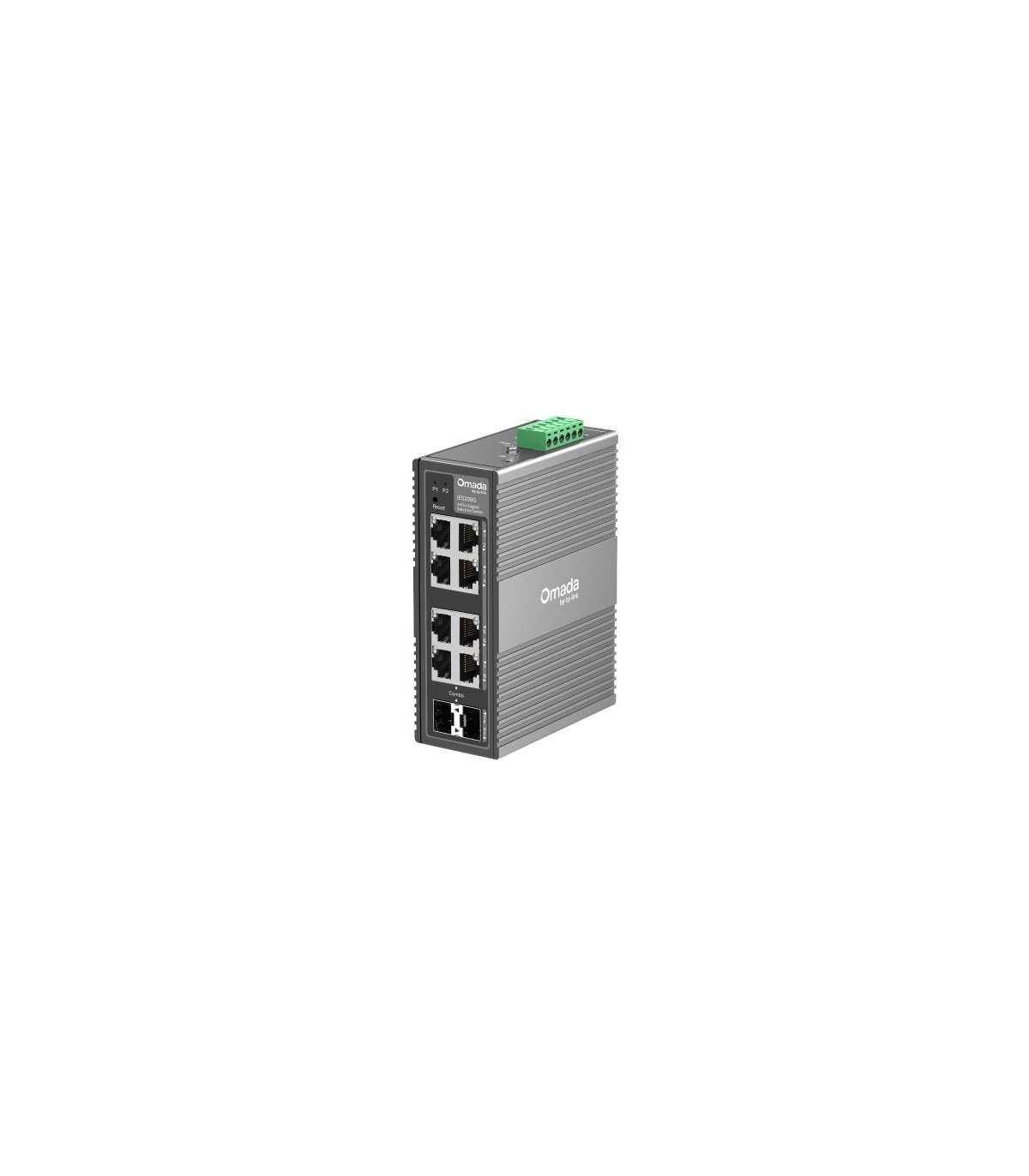

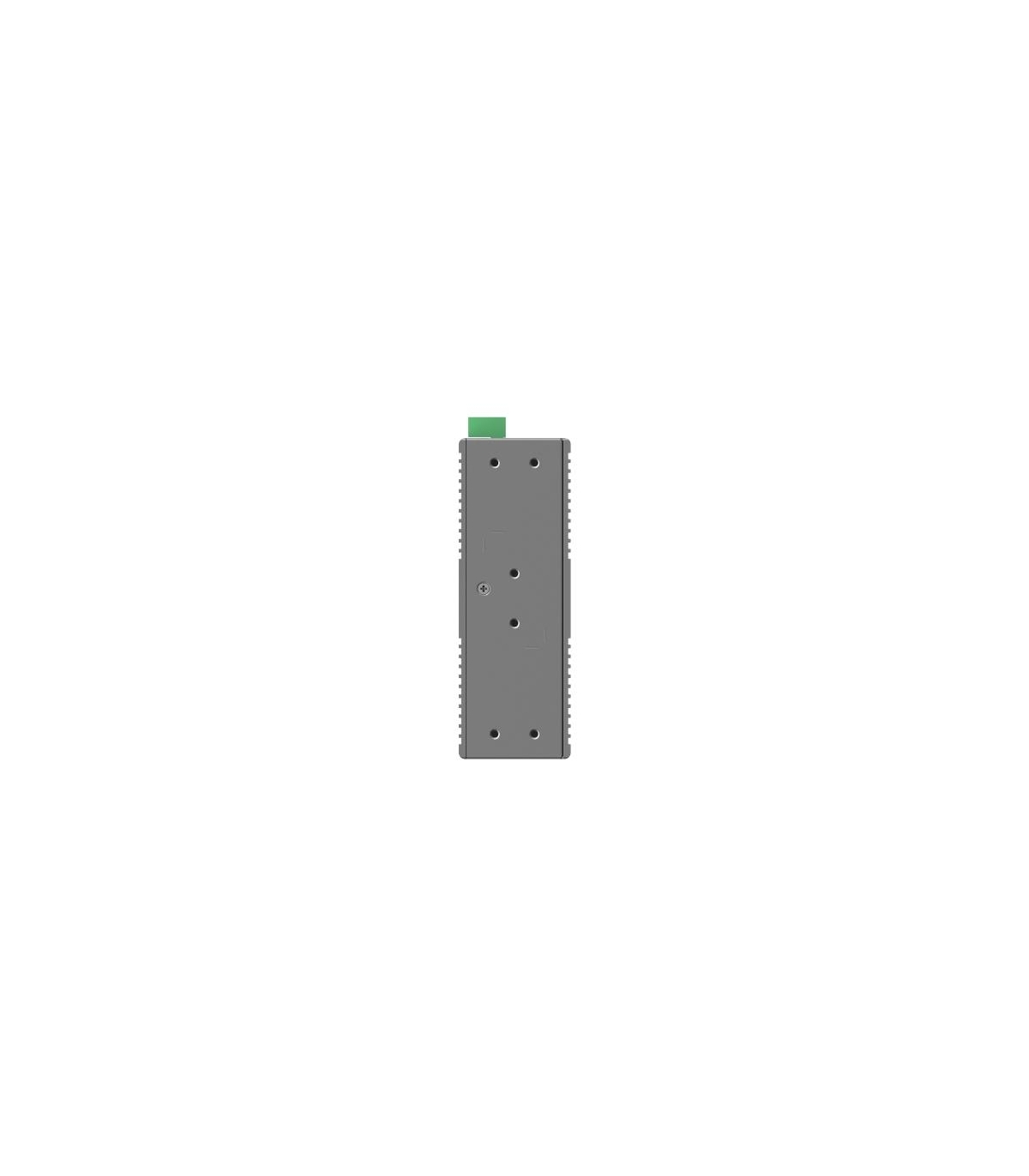

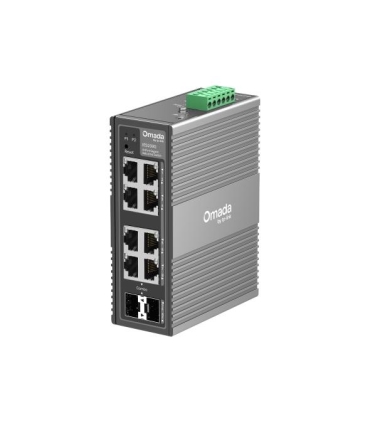

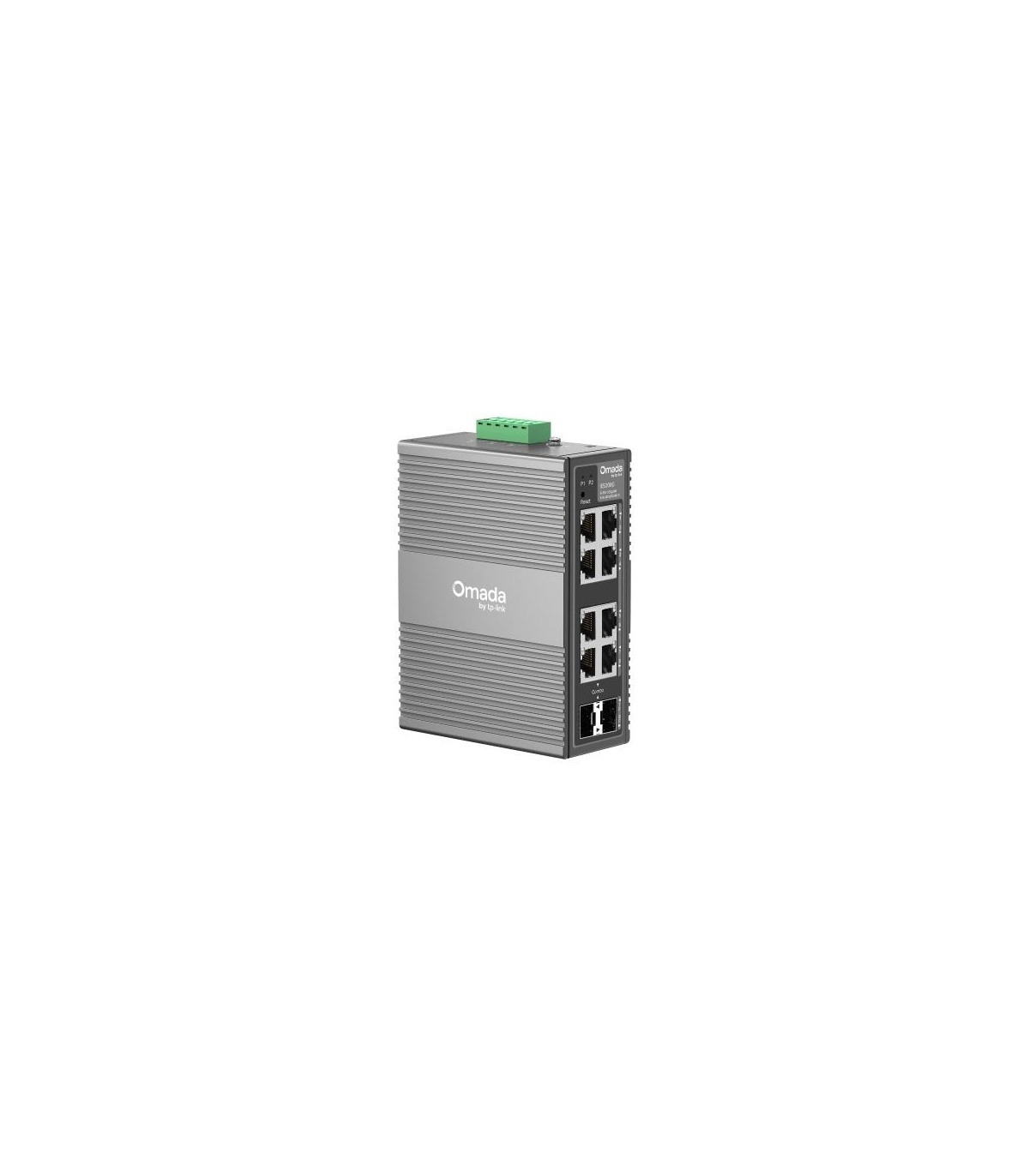

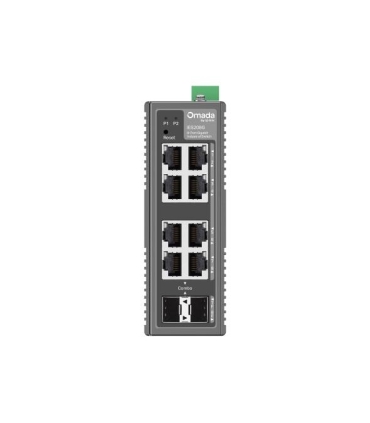

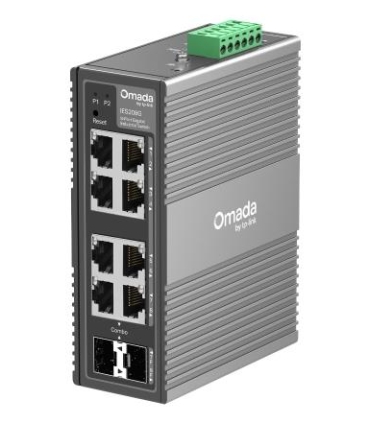

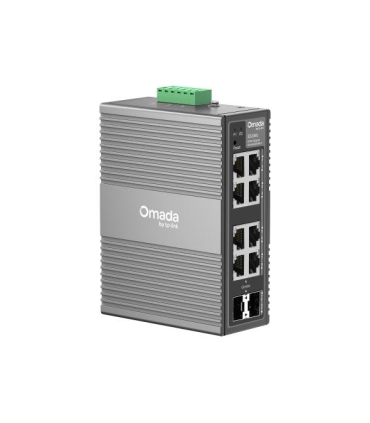

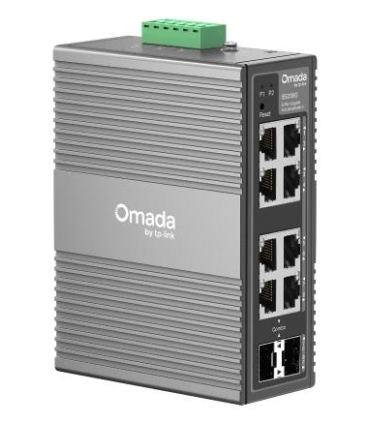

TP-LINK Switch Omada IES208G Type L2 IES208G

Другие свойства

Model name

IES208G

Power Source

DC

Switching capacity

16 Gbit/s

Networking standards

IEEE 802.1D/IEEE 802.1p/IEEE 802.1w/IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x

Switch type

Managed

Forwarding rate

11.9 Mpps

Power over Ethernet (PoE)

No

Web-based management

Yes

Basic switching RJ-45 Ethernet ports quantity

6

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Flow control support

Yes

Jumbo frames support

Yes

MAC address table

8000 entries

10G support

No

Auto MDI/MDI-X

Yes

Broadcast storm control

Yes

IGMP snooping

Yes

Port mirroring

Yes

Redundant power supply (RPS) support

Yes

Quality of Service (QoS) support

Yes

Auto-negotiation

Yes

Combo SFP ports quantity

2

Jumbo frames

15000

Link aggregation

Yes

Static port security

Yes

Spanning tree protocol

Yes

Depth

95 mm

Width

129 mm

Unit Calculated Volume

0.002244 cubm

Unit Calculated Weight

0.766 kg

Summary

TP-Link Omada IES208G. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 6. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards:

DC input voltage

9.6 - 60 V

DIN rail mounting

Yes
