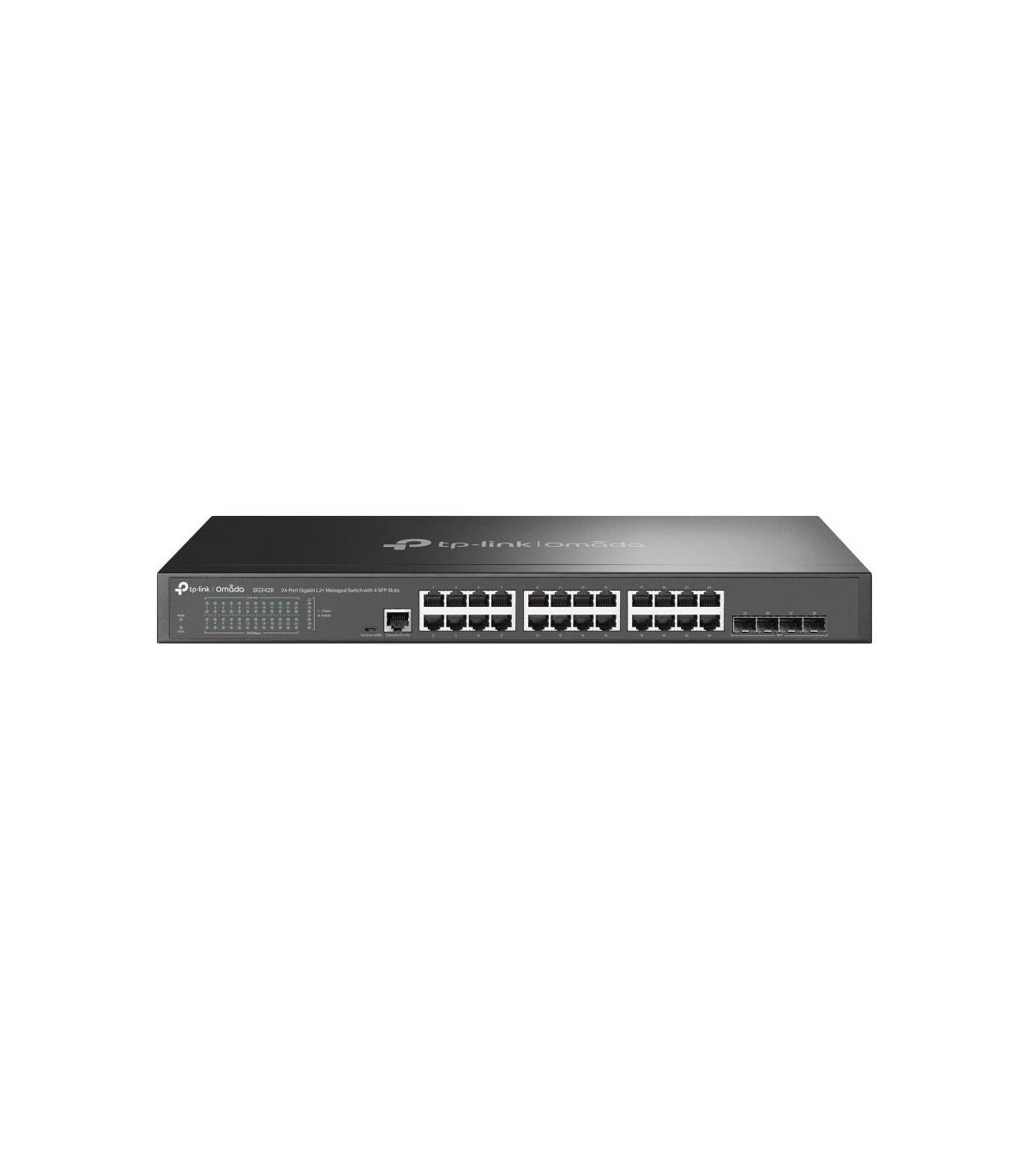

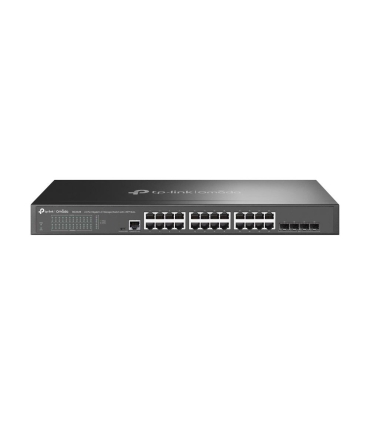

TP-LINK Switch Omada TL-SG3428 Type L2 Rack 4xSFP 1xConsole 1 TL-SG3428

Технические характеристики

Power supply included

-

Сеть

LAN

24

Размеры

Глубина (мм)

180

Другое

Цвет

Черный

Другие свойства

Cables included

LAN (RJ-45)

Operating relative humidity (H-H)

10 - 90 %

Power consumption (max)

20.6 W

Model name

Omada 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots

Form factor

1U

Switching capacity

56 Gbit/s

Management protocols

SNMPv1/v2c/v3, SNTP

Networking standards

IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3z

Switch type

Managed

Rack mounting

Yes

Forwarding rate

41.66 Mpps

Power over Ethernet (PoE)

No

Web-based management

Yes

Basic switching RJ-45 Ethernet ports quantity

24

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Flow control support

Yes

Jumbo frames support

Yes

MAC address filtering

Yes

MAC address table

16000 entries

Packet buffer memory

12 MB

10G support

No

Broadcast storm control

Yes

IGMP snooping

Yes

Multicast support

Yes

Port mirroring

Yes

Switch layer

L2/L3

VLAN support

Yes

Store-and-forward

Yes

Quality of Service (QoS) support

Yes

SFP module slots quantity

4

Number of fans

0 fan(s)

Heat dissipation

70.3 BTU/h

Jumbo frames

9000

Head-of-line (HOL) blocking

Yes

Console port

RJ-45/micro-USB

Access Control List (ACL)

Yes

Link aggregation

Yes

Static port security

Yes

IP routing

Yes

Rate limiting

Yes

MIB support

Yes

Number of VLANs

4000

Spanning tree protocol

Yes

System event log

Yes

ARP inspection

Yes

Number of static routes

48

Height

44 mm

Width

440 mm

Ethernet LAN data rates

10,100,1000 Mbit/s

SSH/SSL support

Yes

Summary

TP-Link Omada 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45

DHCP features

DHCP client/DHCP relay/DHCP server/DHCP snooping/DHCPv6 client/DHCPv6 snooping

Virtual LAN features

Private VLAN/Protocol-based VLAN/Tagged VLAN/Voice VLAN

Loop protection

Yes

Configuring Location Settings (CLI)

Yes

Policy-based routing

Yes

Authentication

MAC-based authentication,Port-based authentication

BPDU filtering/protection

Yes

IP-MAC-Port binding

Yes

IPv4 routes

48

IPv6 routes

48

Static route

Yes

Authentication type

AAA,RADIUS,TACACS+

Multicast Listener Discovery (MLD) snooping

Y

GARP VLAN Registration Protocol (GVRP)

Yes

IPv4 & IPv6 features

IPv4/IPv6 access-control list (ACL)/IPv6 ping/IPv6 Telnet/IPv6 tracert
