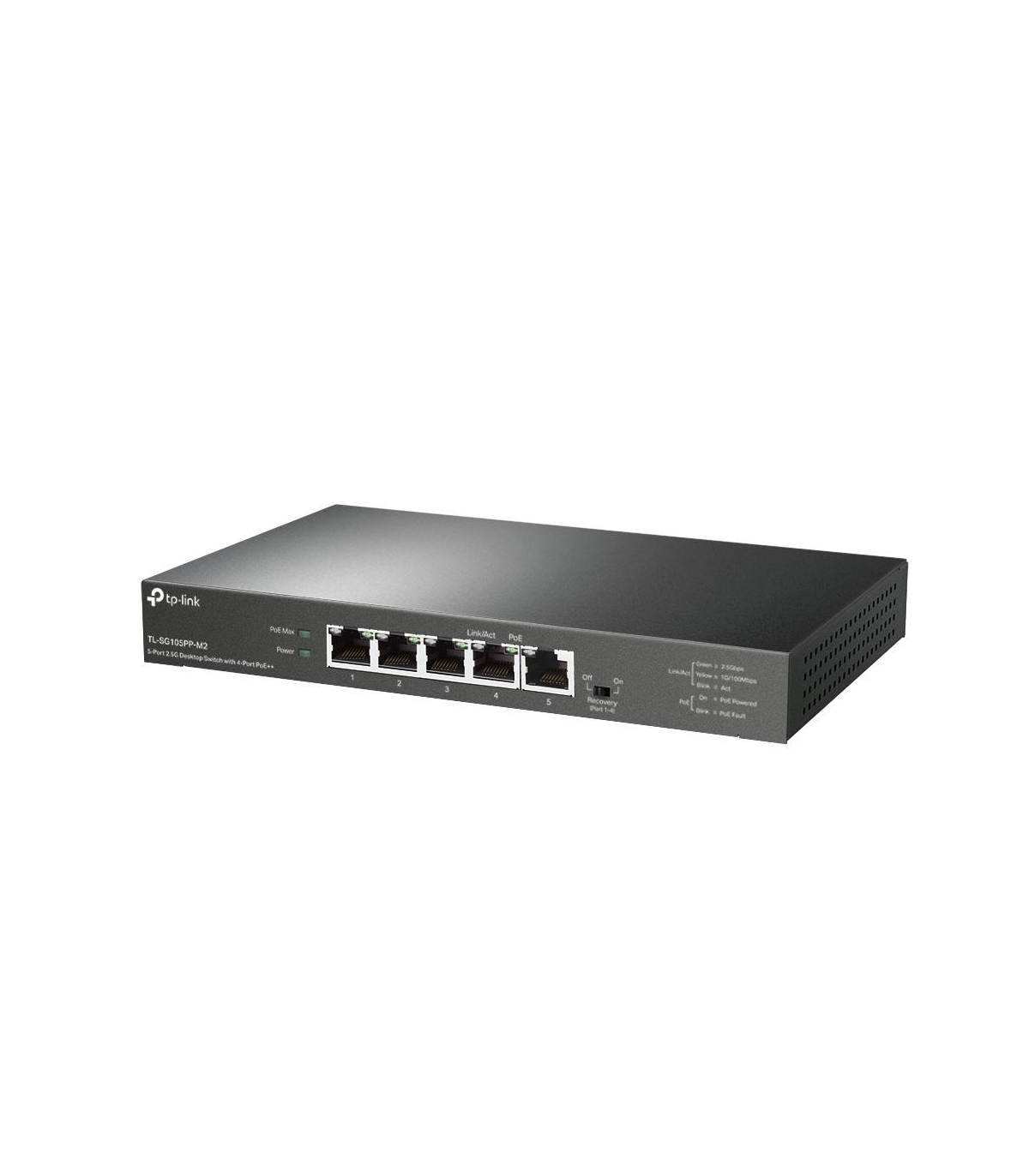

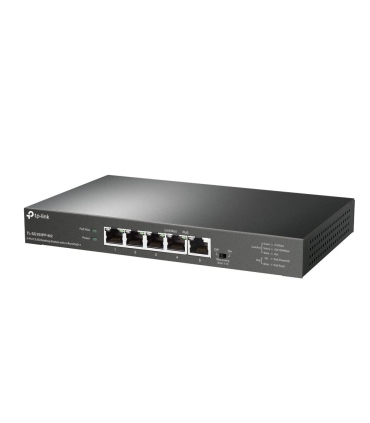

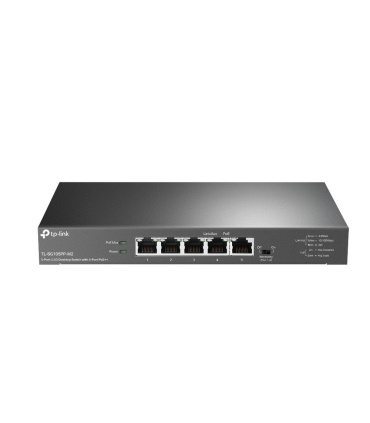

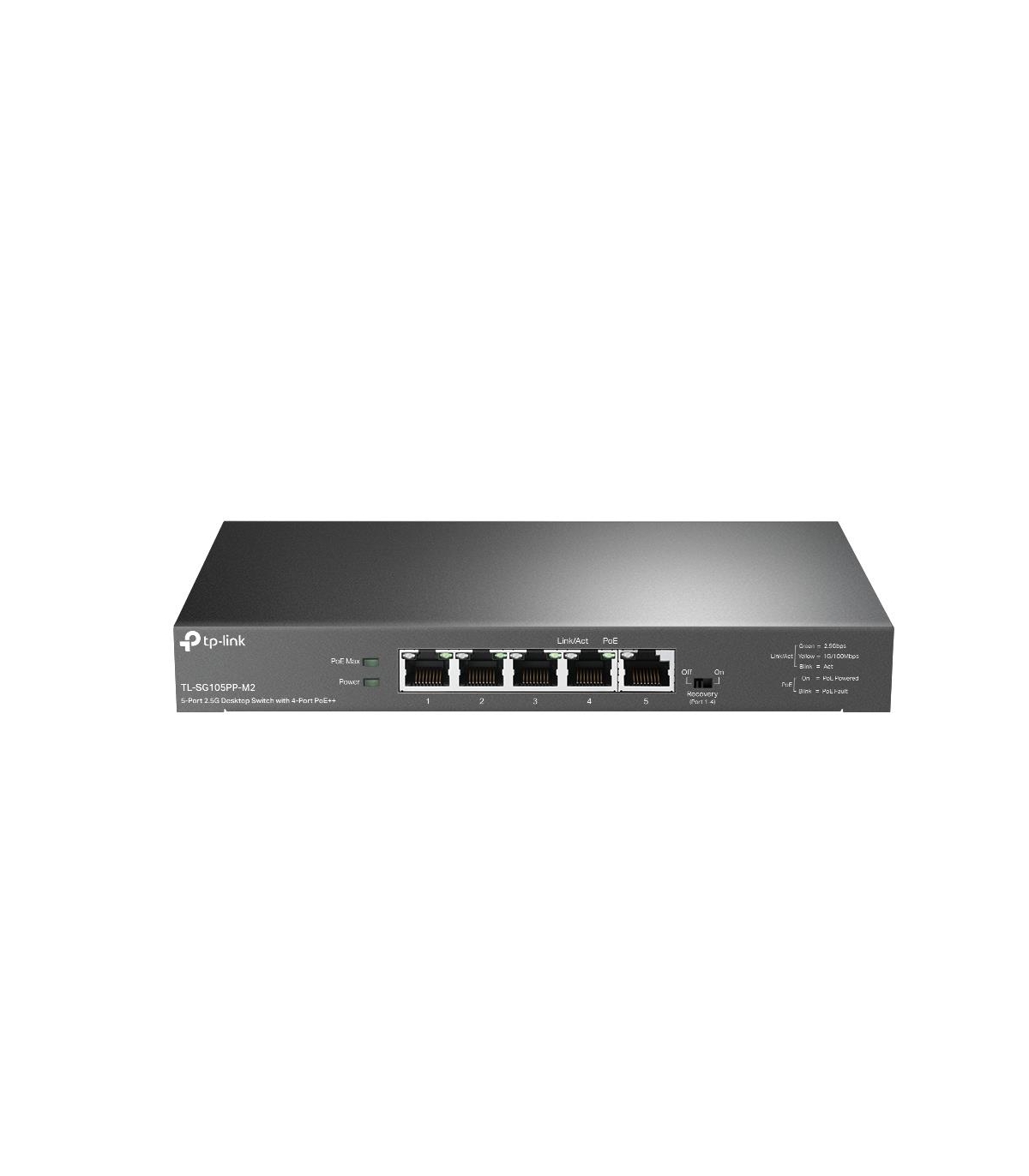

TP-LINK Switch TL-SG105PP-M2 Desktop/pedestal 5x2.5GbE TL-SG105PP-M2

Tehniline kirjeldus

PSU komplektis

Yes

Mõõtmed

Sügavus (mm)

126

Muu

Värv

Must

Korpuse materjal

Steel

Muud funktsioonid

Sertifikaat (DEL)

CE, FCC, RoHS

Power consumption (max)

143.37 W

Input current

2.43 A

Model name (del)

TL-SG105PP-M2

Power Source

DC/PoE

Switching capacity

25 Gbit/s

Networking standards

IEEE 802.1p/IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x

Input voltage

53.5 V

Rack mounting

No

Forwarding rate

18.6 Mpps

Power over Ethernet (PoE)

Yes

Basic switching RJ-45 Ethernet ports quantity

5

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Copper ethernet cabling technology

1000BASE-T/100BASE-TX/10BASE-T

Flow control support

Yes

MAC address table

4000 entries

10G support

No

Auto MDI/MDI-X

Yes

IGMP snooping

Yes

Store-and-forward

Yes

Quality of Service (QoS) support

Yes

Power over Ethernet (PoE) power per port

60 W

Total Power over Ethernet (PoE) budget

123 W

Auto-negotiation

Yes

Heat dissipation

488.89 BTU/h

AC input voltage

220 V

Height

26 mm

Width

209 mm

Fanless

Yes

Unit Calculated Volume

0.005376 cubm

Summary

TP-Link 5-Port 2.5G Desktop Switch with 4-Port PoE++. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 4000 entries, Switching capacity:

Cable types supported

Cat3/Cat4/Cat5/Cat5e

MAC address auto-aging supported

Yes

MAC address auto-learning supported

Yes

Power over Ethernet 4PPoE (PoE++) ports quantity

4

2.5G Ethernet (copper) ports quantity

5
