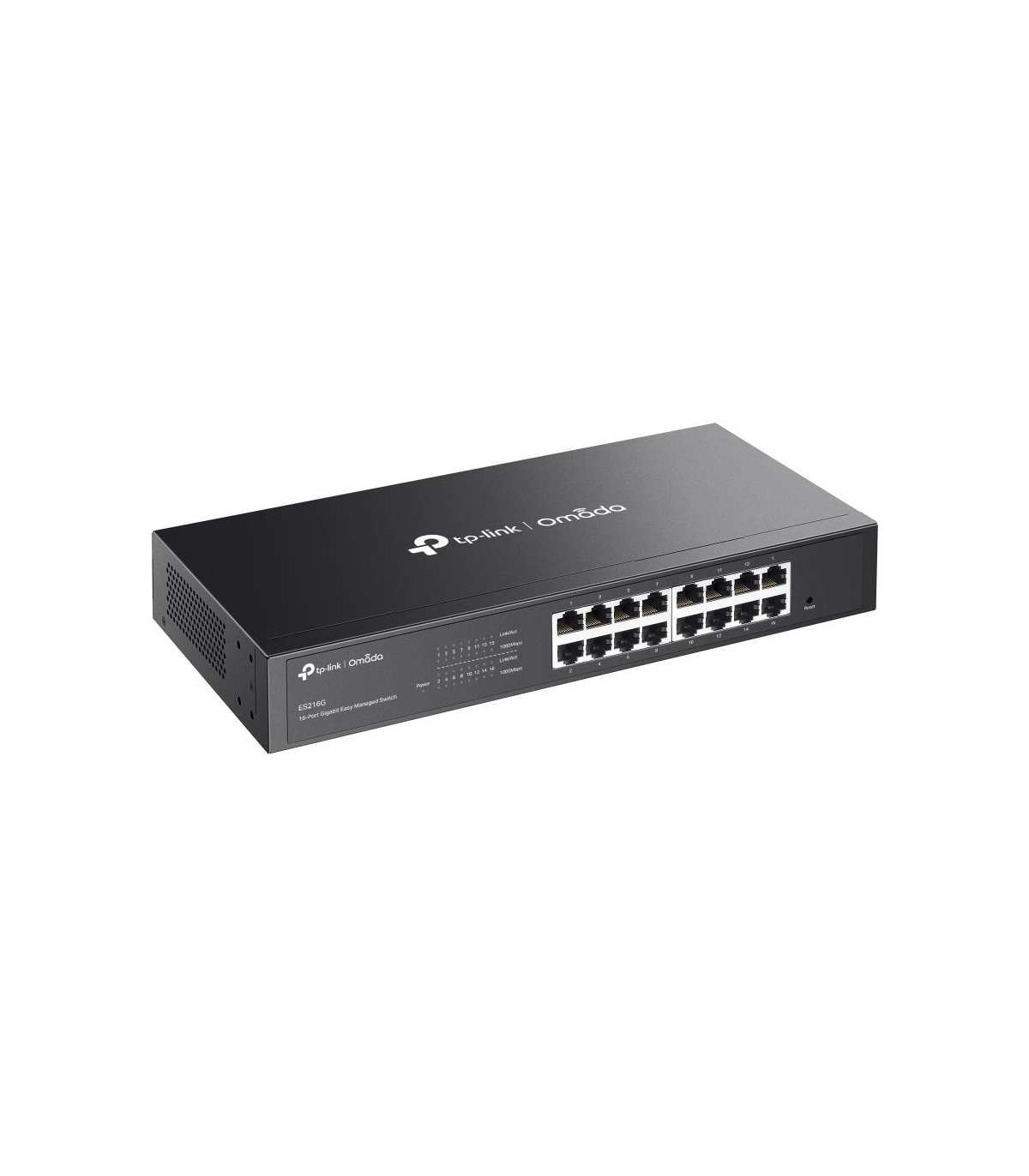

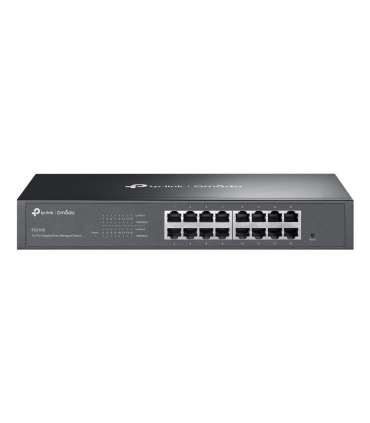

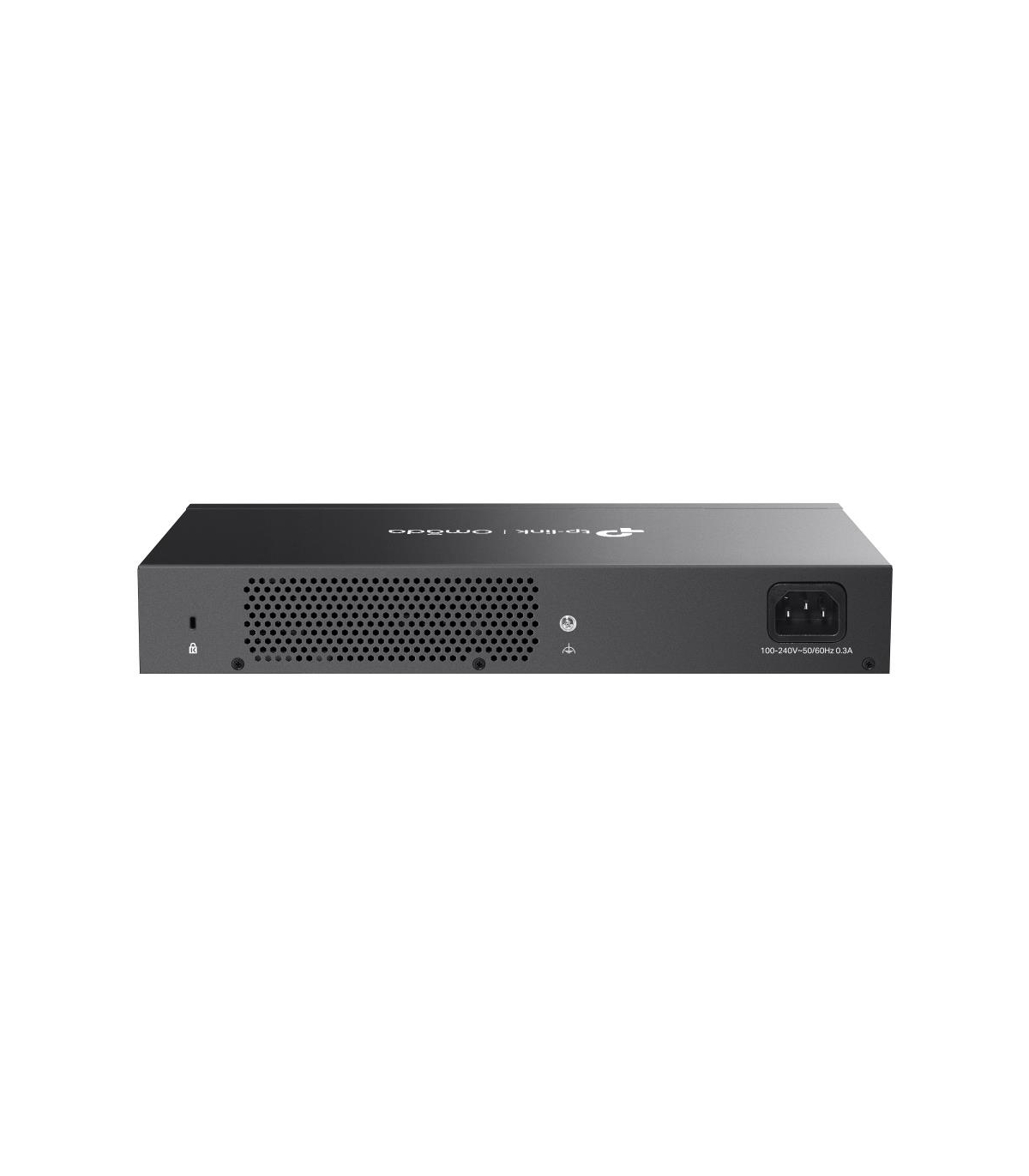

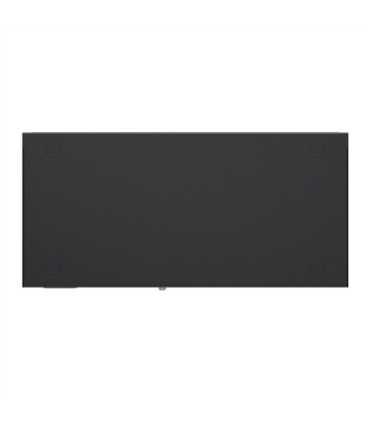

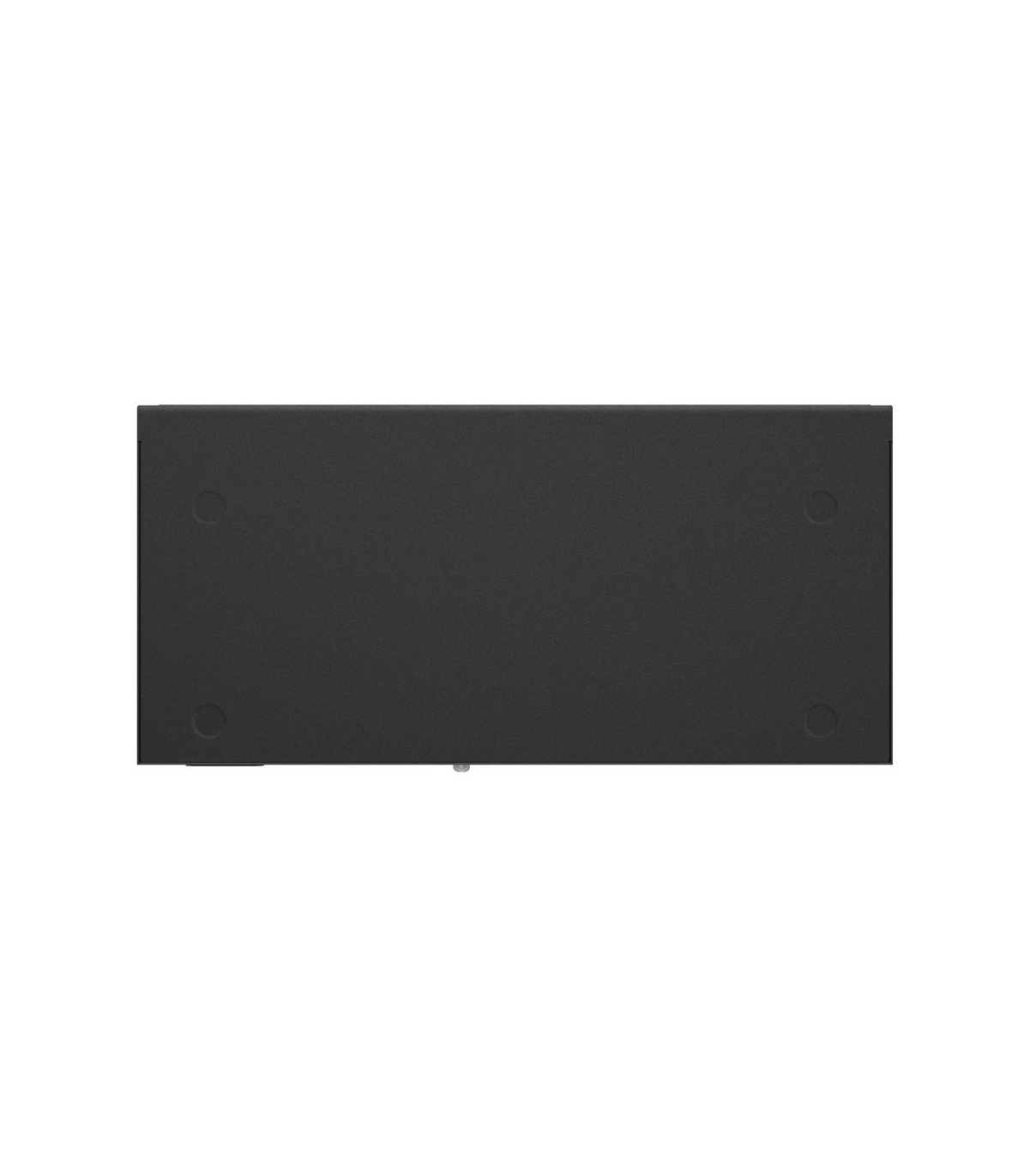

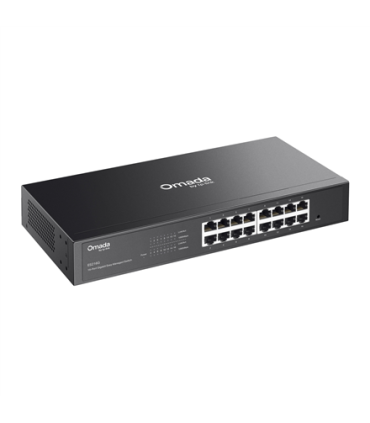

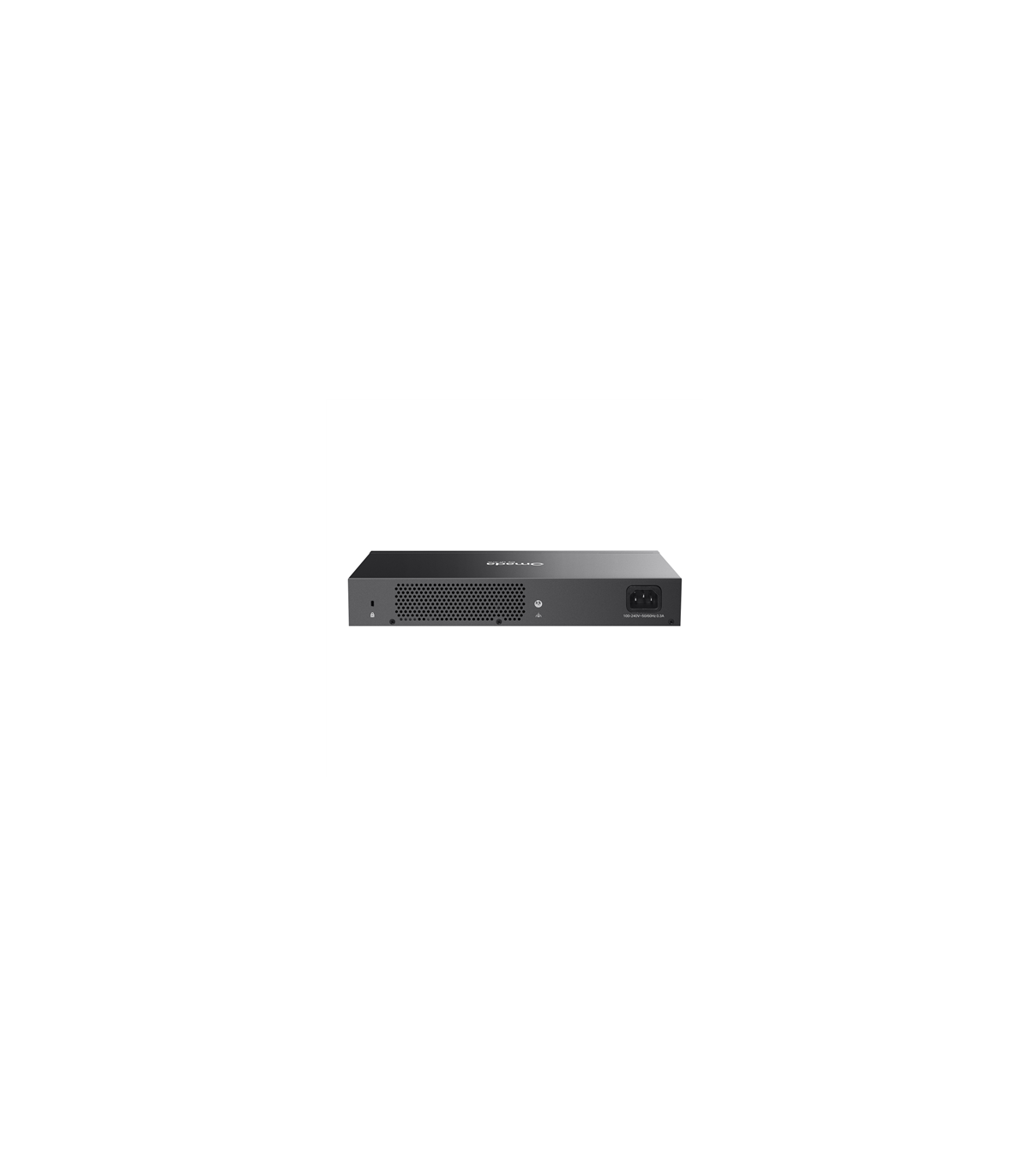

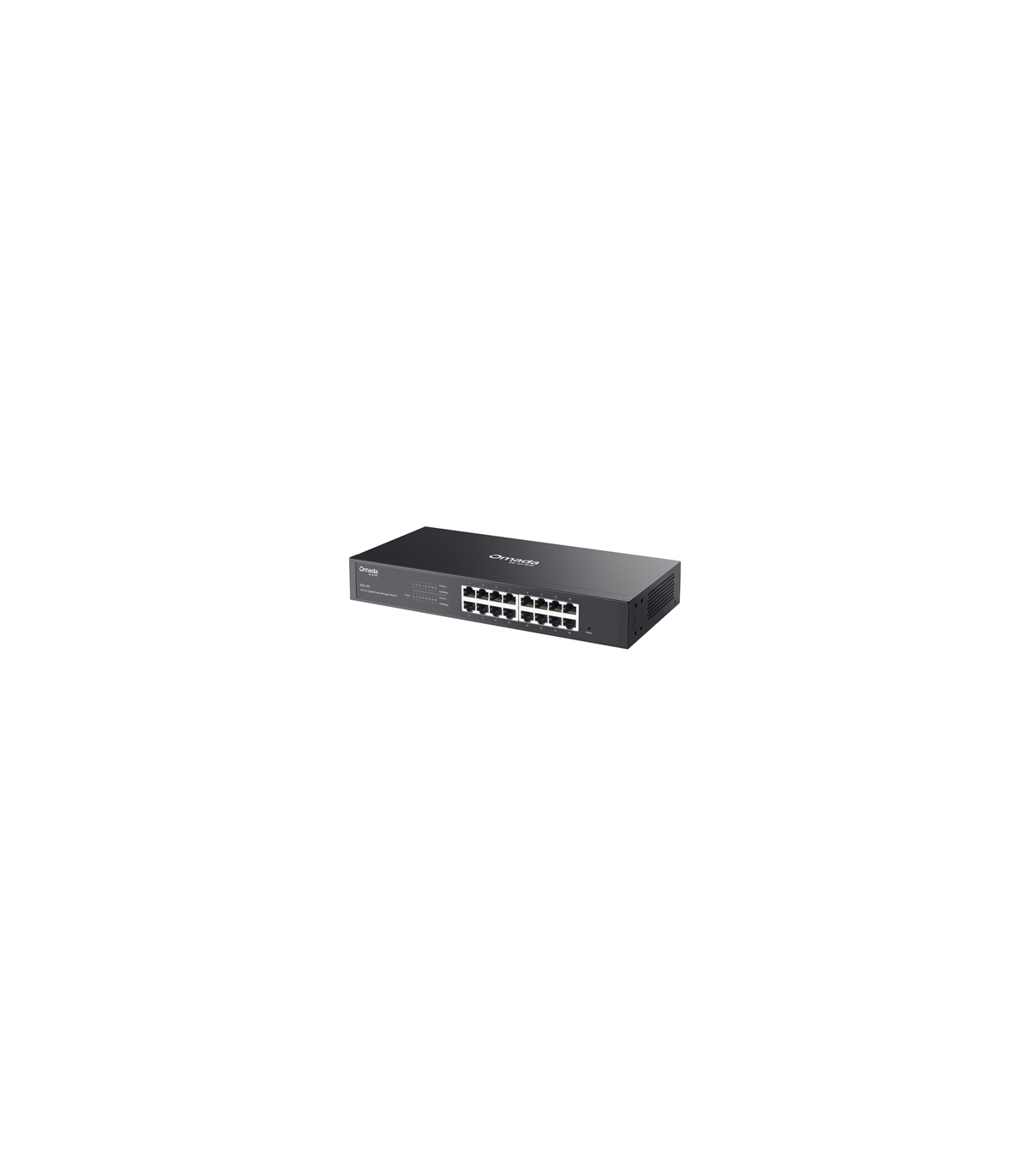

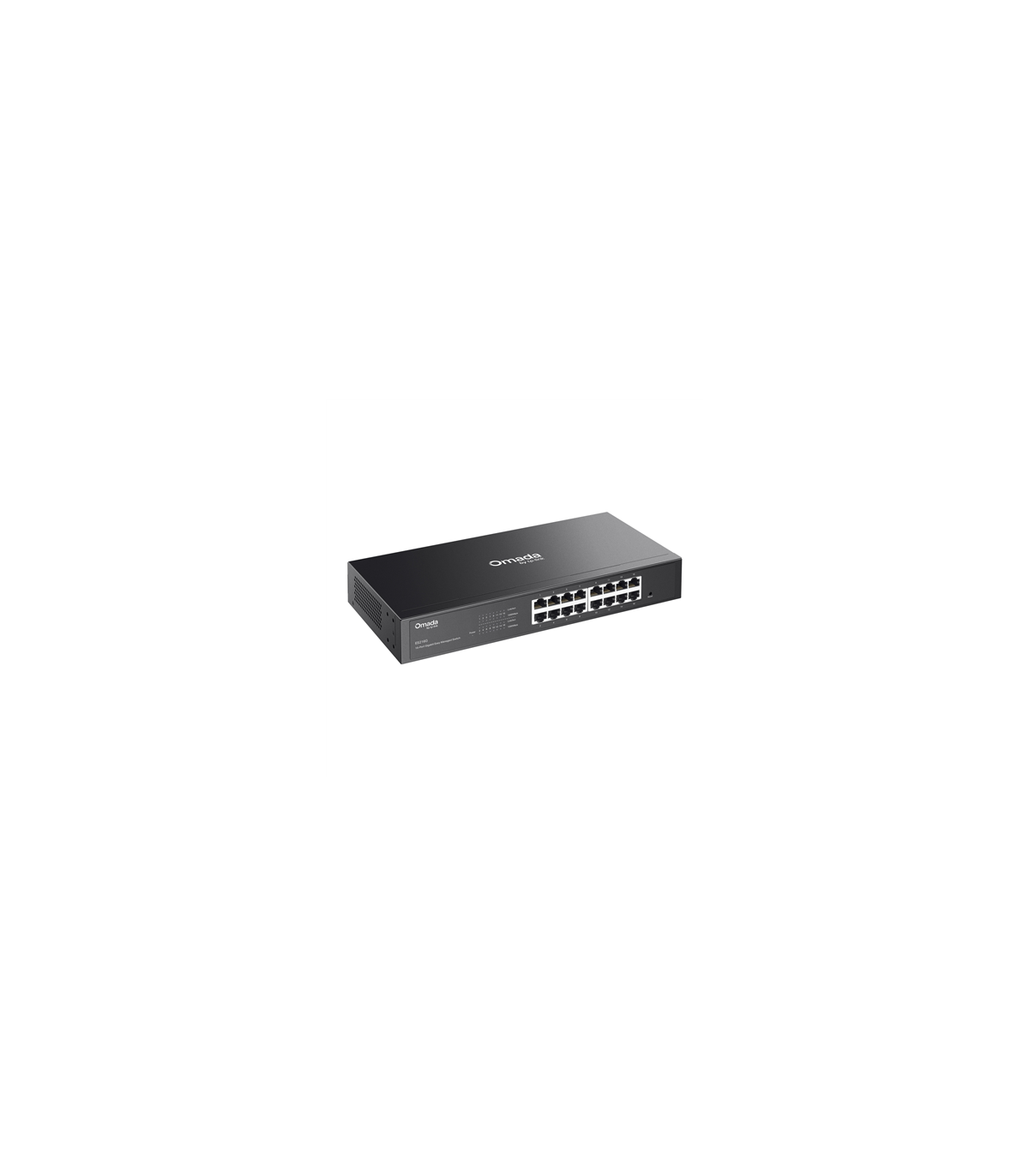

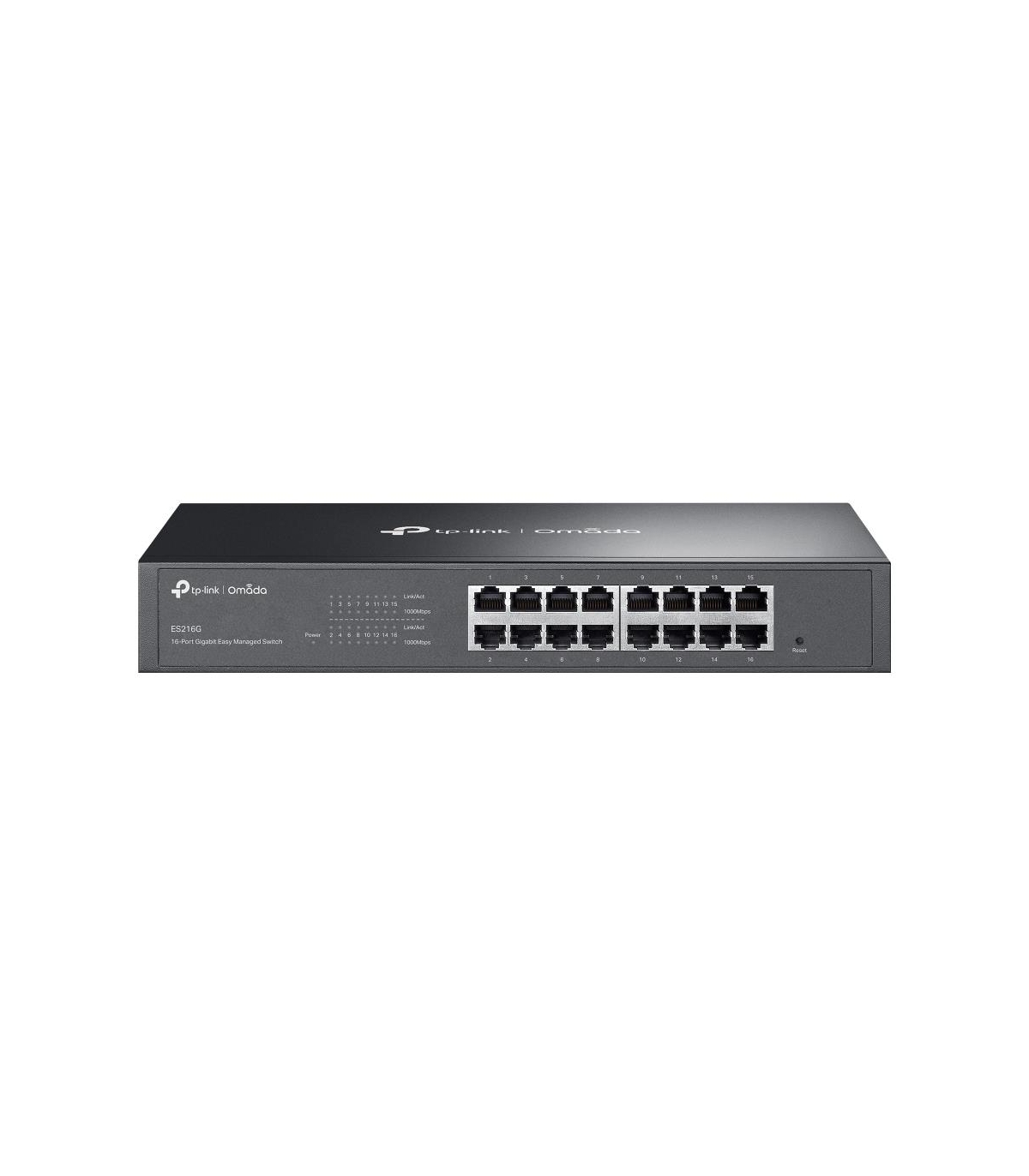

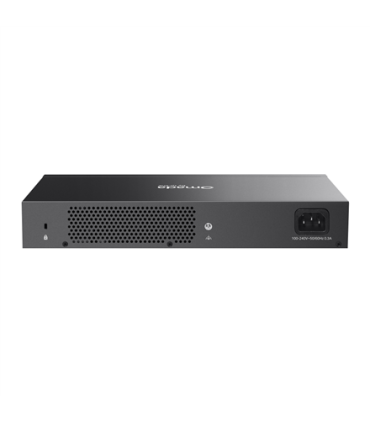

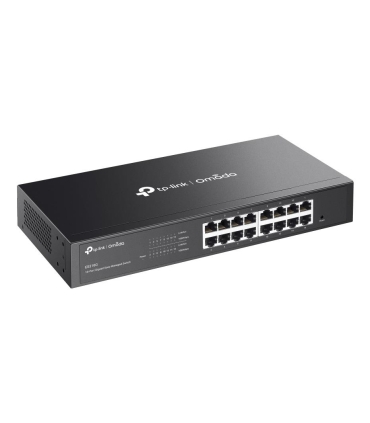

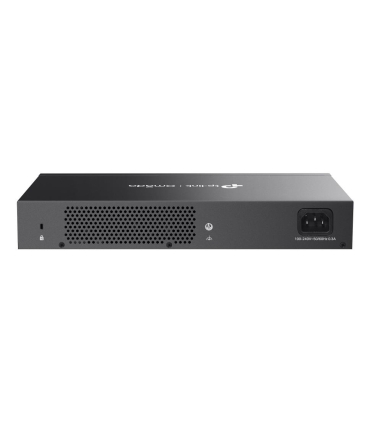

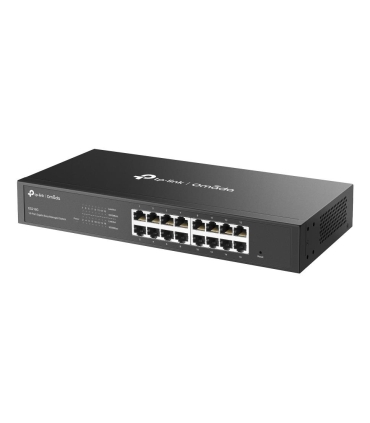

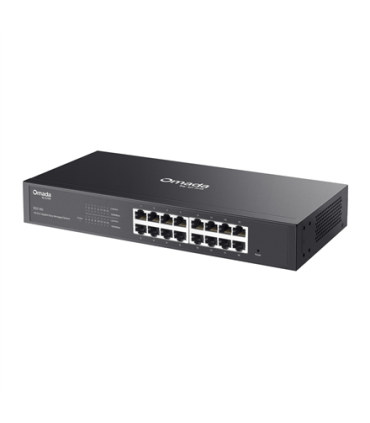

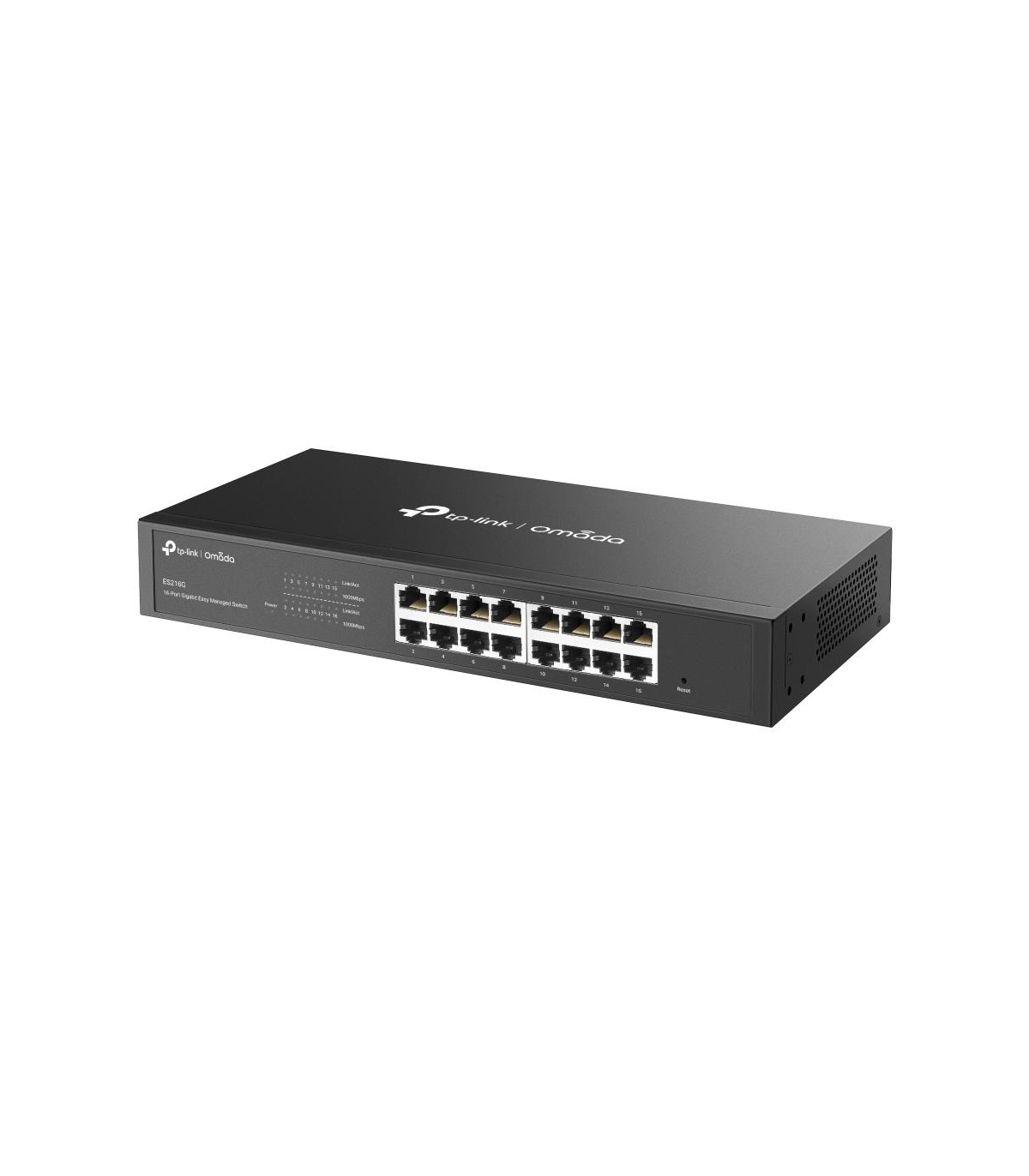

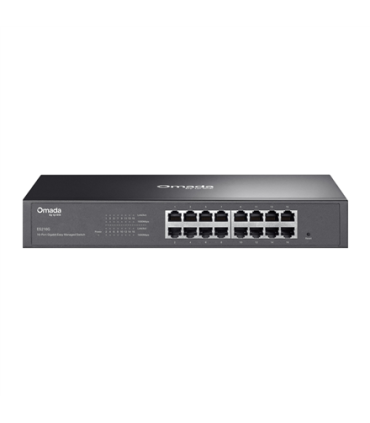

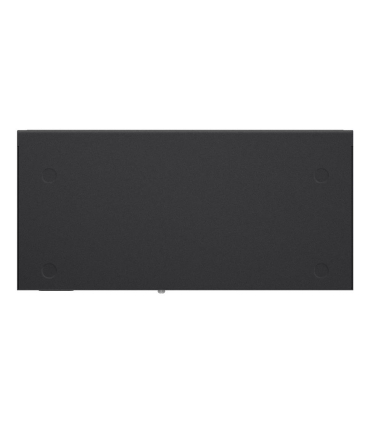

TP-LINK Switch ES216G Type L4 ES216G

Технические характеристики

Power supply included

+

Размеры

Глубина (см)

14

Другое

Цвет

Черный

Другие свойства

Model

TP-LINK OMADA ES216G

Operating relative humidity (H-H)

10 - 90 %

Power consumption (max)

8.4 W

Mean time between failures (MTBF)

2131140 h

Model name

ES216G

Switching capacity

32 Gbit/s

Networking standards

IEEE 802.1ab/IEEE 802.1p/IEEE 802.1Q/IEEE 802.3ab/IEEE 802.3at/IEEE 802.3i/IEEE 802.3x

Switch type

Managed

Rack mounting

Yes

Forwarding rate

23.8 Mpps

Gigabit Ethernet (copper) ports quantity

16

Flash memory

64 MB

Power over Ethernet (PoE)

No

Web-based management

Yes

Basic switching RJ-45 Ethernet ports quantity

16

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Flow control support

Yes

Jumbo frames support

Yes

MAC address table

8000 entries

Packet buffer memory

4 MB

10G support

No

Auto MDI/MDI-X

Yes

IGMP snooping

Yes

Port mirroring

Yes

Switch layer

L2

VLAN support

Yes

Store-and-forward

Yes

Quality of Service (QoS) support

Yes

Auto-negotiation

Yes

Heat dissipation

28.52 BTU/h

Jumbo frames

15000

Link aggregation

Yes

Number of VLANs

32

Rack mount kit

Yes

Surge protection

Yes

Height

44 mm

Width

294 mm

Operating temperature (T-T)

-5 - 50 °C

Fanless

Yes

Unit Calculated Volume

0.008379 cubm

Summary

TP-Link Omada ES216G. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Net

Power connector

AC-in jack

DHCP features

DHCP client

Virtual LAN features

MTU VLAN/Port-based VLAN/Tagged VLAN

Loop protection

Yes

Queue scheduling algorithms

Weighted Round Robin (WRR)

Unified static configuration

Yes

Fast leave

Yes

Surge protection voltage

6 kV

Zero Touch Provisioning (ZTP)

Yes
