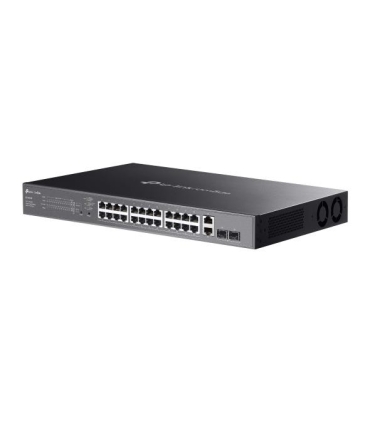

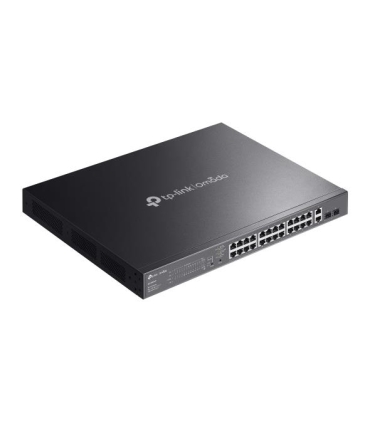

TP-LINK Switch Omada SG2428P Type L2+ 384 Watts ES228GMP

Технические характеристики

Power supply included

+

Другое

Цвет

Черный

Материал корпуса

Metal

Другие свойства

Сертификация

FCC, CE, RoHS

Operating relative humidity (H-H)

10 - 90 %

Power consumption (max)

454.8 W

Mean time between failures (MTBF)

224143 h

Model name

SG2428P

Switching capacity

56 Gbit/s

Networking standards

IEEE 802.1ab/IEEE 802.1p/IEEE 802.1Q/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z

Switch type

Managed

Noise level

46.2 dB

Rack mounting

Yes

Forwarding rate

41.66 Mpps

Gigabit Ethernet (copper) ports quantity

26

Flash memory

64 MB

Power over Ethernet (PoE)

Yes

Web-based management

Yes

Basic switching RJ-45 Ethernet ports quantity

26

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Copper ethernet cabling technology

1000BASE-T/1000BASE-X/100BASE-X/10BASE-T

Flow control support

Yes

Jumbo frames support

Yes

MAC address table

8000 entries

Packet buffer memory

4 MB

10G support

No

Auto MDI/MDI-X

Yes

Broadcast storm control

Yes

IGMP snooping

Yes

Multicast support

Yes

Port mirroring

Yes

Switch layer

L2

VLAN support

Yes

Store-and-forward

Yes

Quality of Service (QoS) support

Yes

SFP module slots quantity

2

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

384 W

Heat dissipation

1546.15 BTU/h

Jumbo frames

15000

Link aggregation

Yes

Number of VLANs

32

Rack mount kit

Yes

Surge protection

Yes

Depth

330 mm

Height

44 mm

Width

440 mm

Operating temperature (T-T)

-5 - 45 °C

Ethernet LAN data rates

10,100,1000 Mbit/s

Power over Ethernet plus (PoE+) ports quantity

24

Fanless

No

Unit Calculated Volume

0.02491 cubm

Unit Calculated Weight

6.125 kg

Summary

TP-Link Omada ES228GMP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 26. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. N

Power over Ethernet (PoE) type supported

PoE+

DHCP features

DHCP client

Virtual LAN features

MTU VLAN/Port-based VLAN/Tagged VLAN

Queue scheduling algorithms

Weighted Round Robin (WRR)

Unified static configuration

Yes

Fast leave

Yes

Surge protection voltage

6 kV
