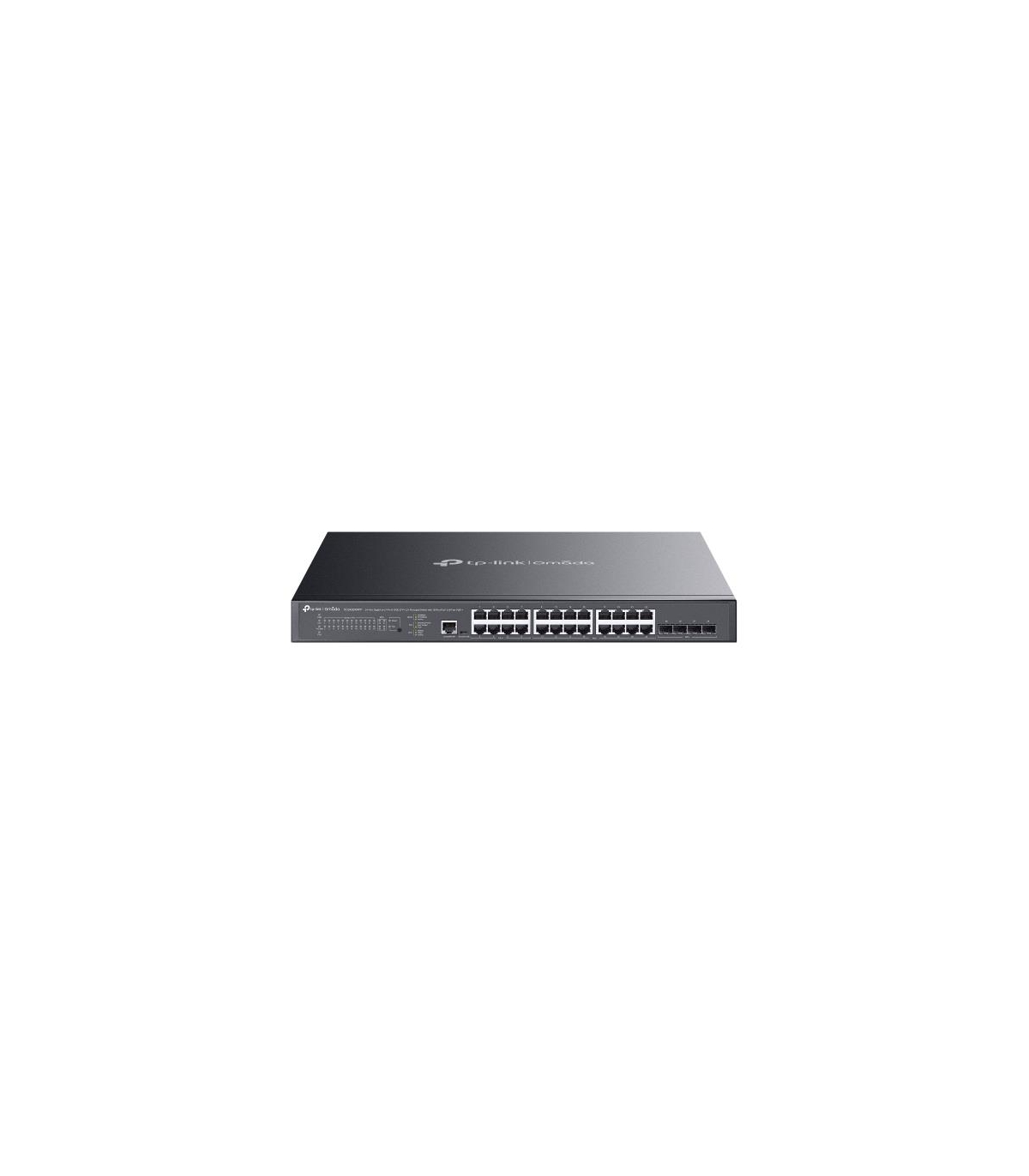

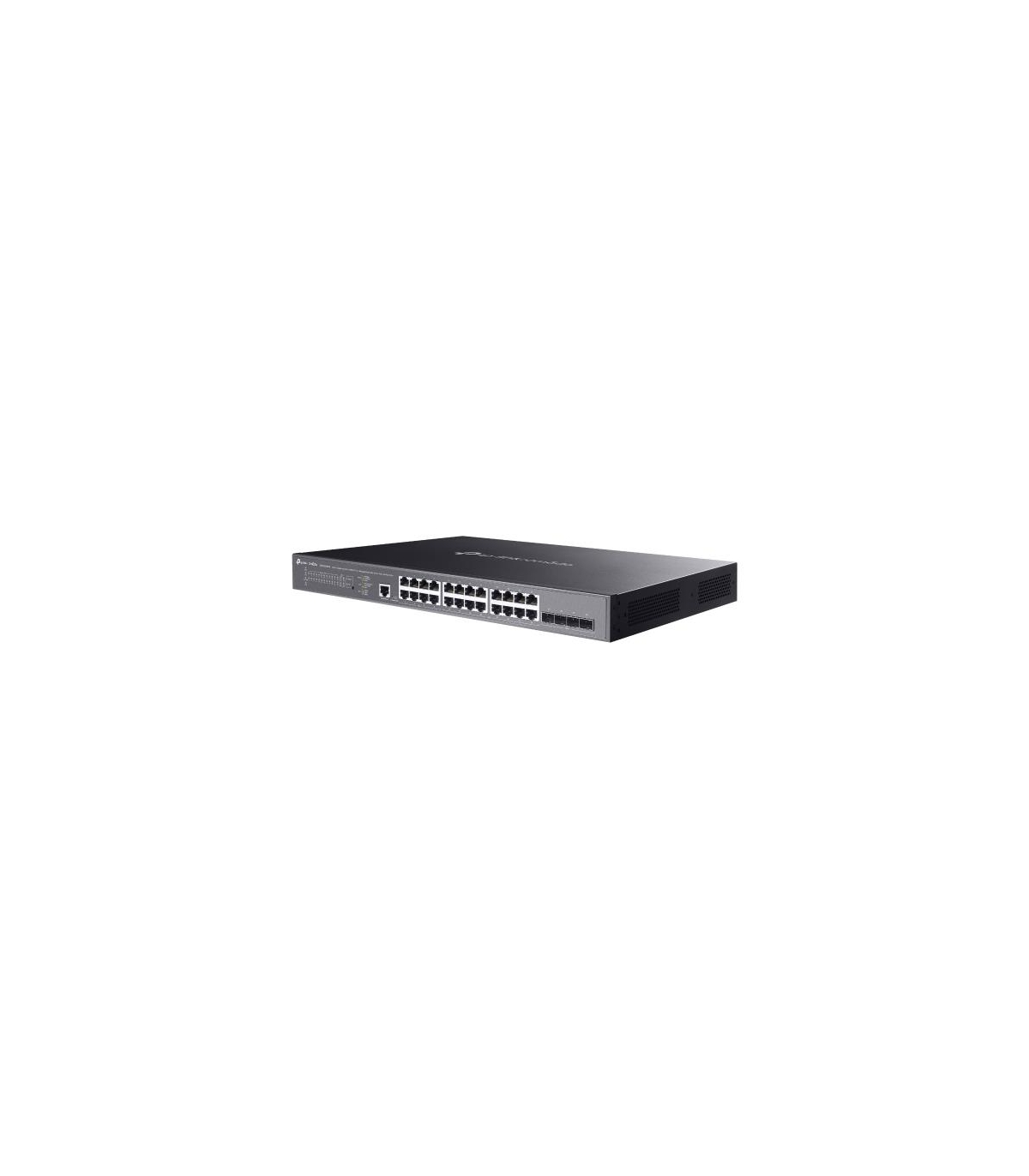

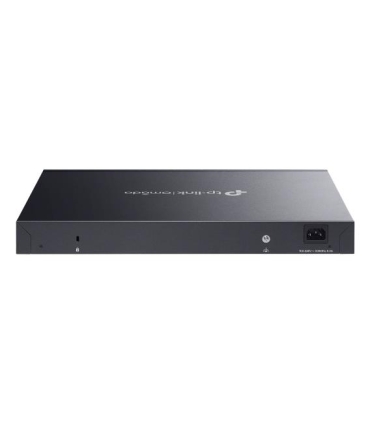

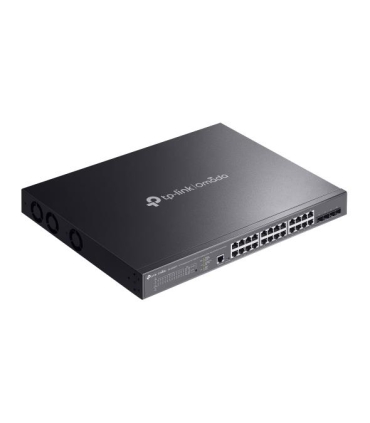

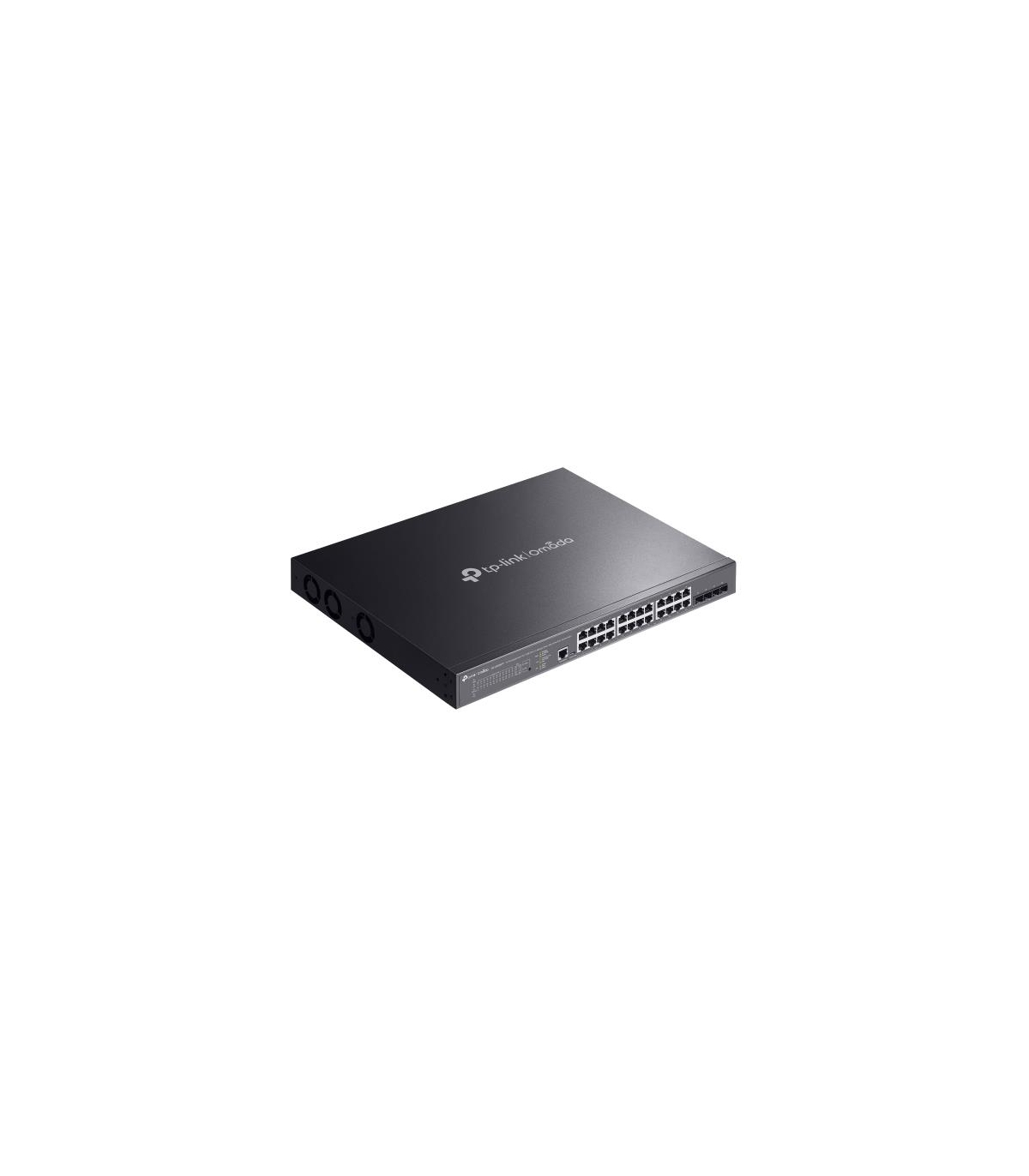

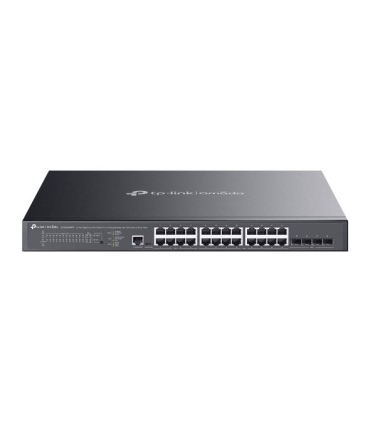

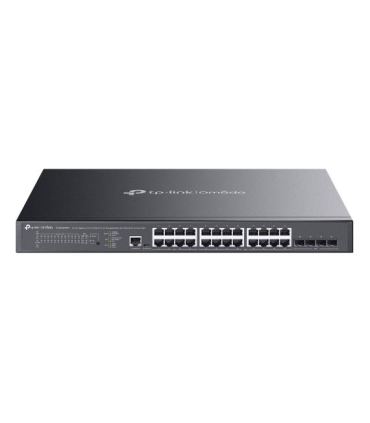

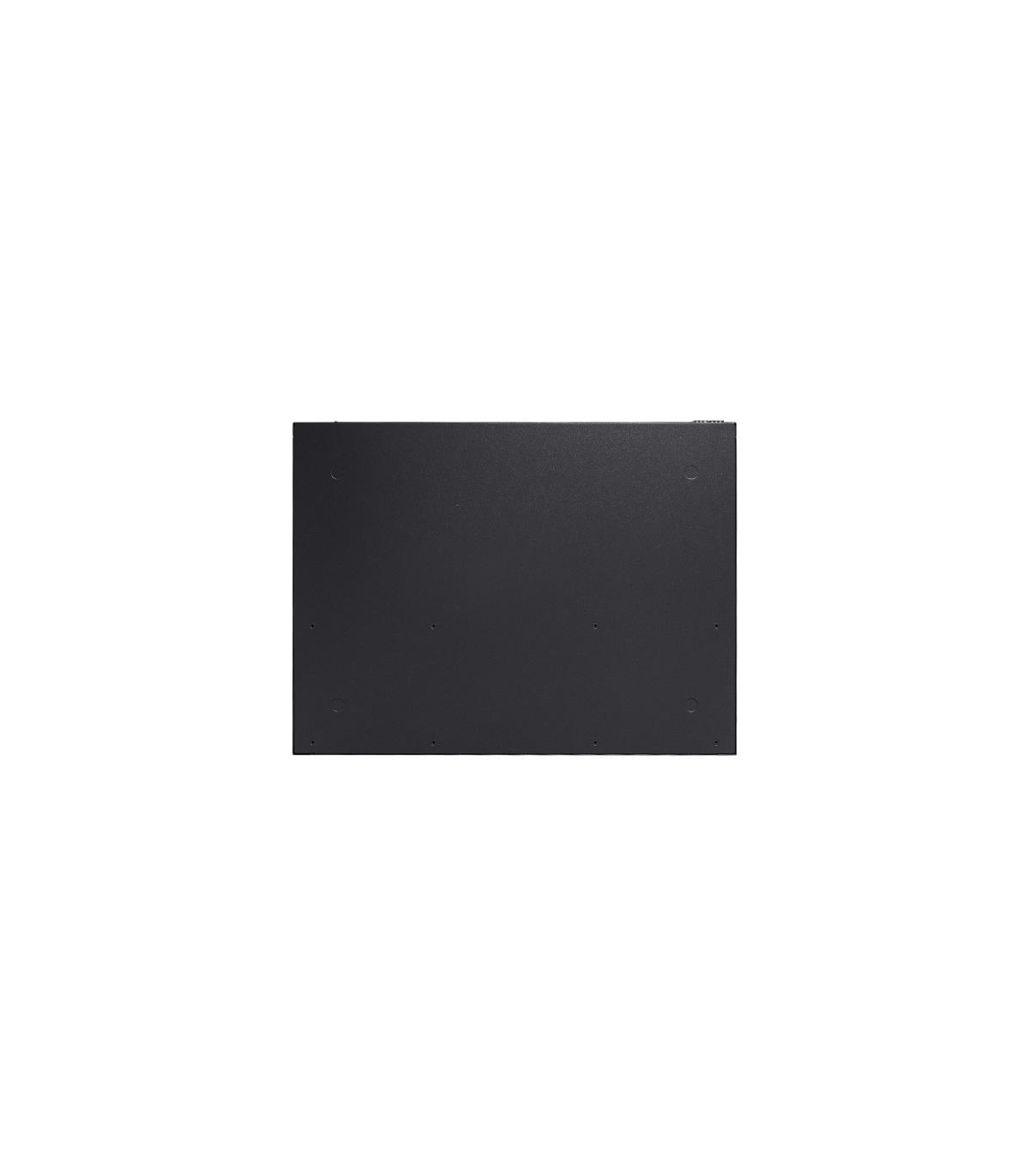

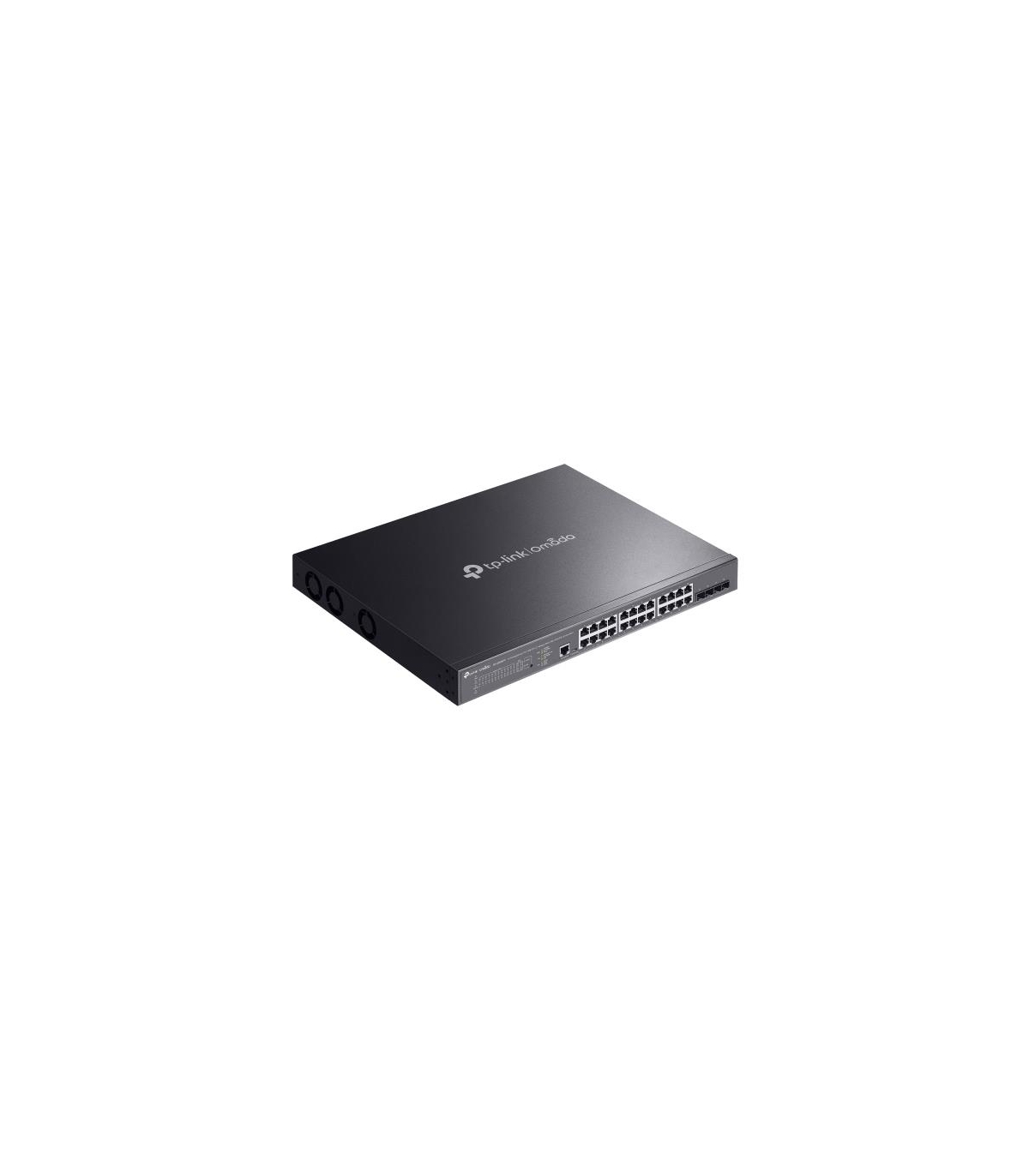

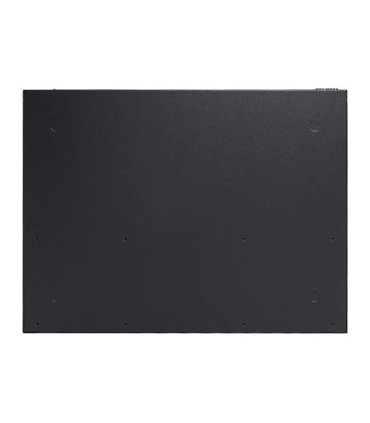

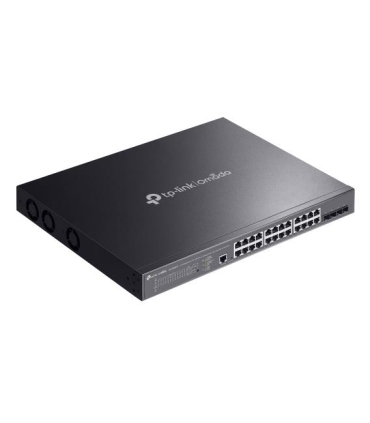

TP-LINK Switch Omada SG3428XMPP Rack 24x10Base-T / 100Base-TX / 1000Base-T 4xSFP+ 1xConsole 1 PoE+ ports 16 500 Watts SG3428XMP

Технические характеристики

Töötemperatuur

0 – 40 °C

Power supply included

+

Другое

Цвет

Черный

Другие свойства

Сертификация

CE, FCC, RoHS

Operating relative humidity (H-H)

10 - 90 %

Power consumption (max)

486.2 W

Model name

SG3428XMPP

Form factor

1U

Switching capacity

128 Gbit/s

Networking standards

IEEE 802.3af/IEEE 802.3at

Switch type

Managed

Rack mounting

Yes

Forwarding rate

95.23 Mpps

Power over Ethernet (PoE)

Yes

Web-based management

Yes

Basic switching RJ-45 Ethernet ports quantity

24

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Flow control support

Yes

Jumbo frames support

Yes

MAC address filtering

Yes

MAC address table

16000 entries

Packet buffer memory

12 MB

10G support

Yes

Broadcast storm control

Yes

IGMP snooping

Yes

Multicast support

Yes

Port mirroring

Yes

Switch layer

L2+

VLAN support

Yes

Store-and-forward

Yes

Quality of Service (QoS) support

Yes

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

500 W

Heat dissipation

1658.78 BTU/h

Jumbo frames

9000

Head-of-line (HOL) blocking

Yes

Console port

RJ-45/micro-USB

Access Control List (ACL)

Yes

Link aggregation

Yes

Static port security

Yes

Rate limiting

Yes

Spanning tree protocol

Yes

System event log

Yes

ARP inspection

Yes

SFP+ module slots quantity

4

Depth

330 mm

Height

44 mm

Width

440 mm

SSH/SSL support

Yes

Power over Ethernet plus (PoE+) ports quantity

16

Summary

TP-Link Omada SG3428XMPP. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/Micro-USB. MAC address table: 16000 entrie

Power connector

AC-in jack

DHCP features

DHCP client/DHCP relay/DHCP server

Configuring Location Settings (CLI)

Yes

Authentication

Auto VLAN,Guest VLAN

BPDU filtering/protection

Yes

IP-MAC-Port binding

Yes

Power over Ethernet 4PPoE (PoE++) ports quantity

8
