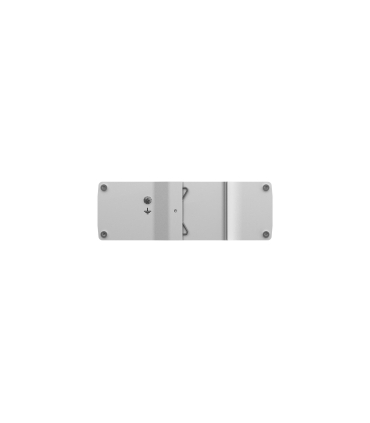

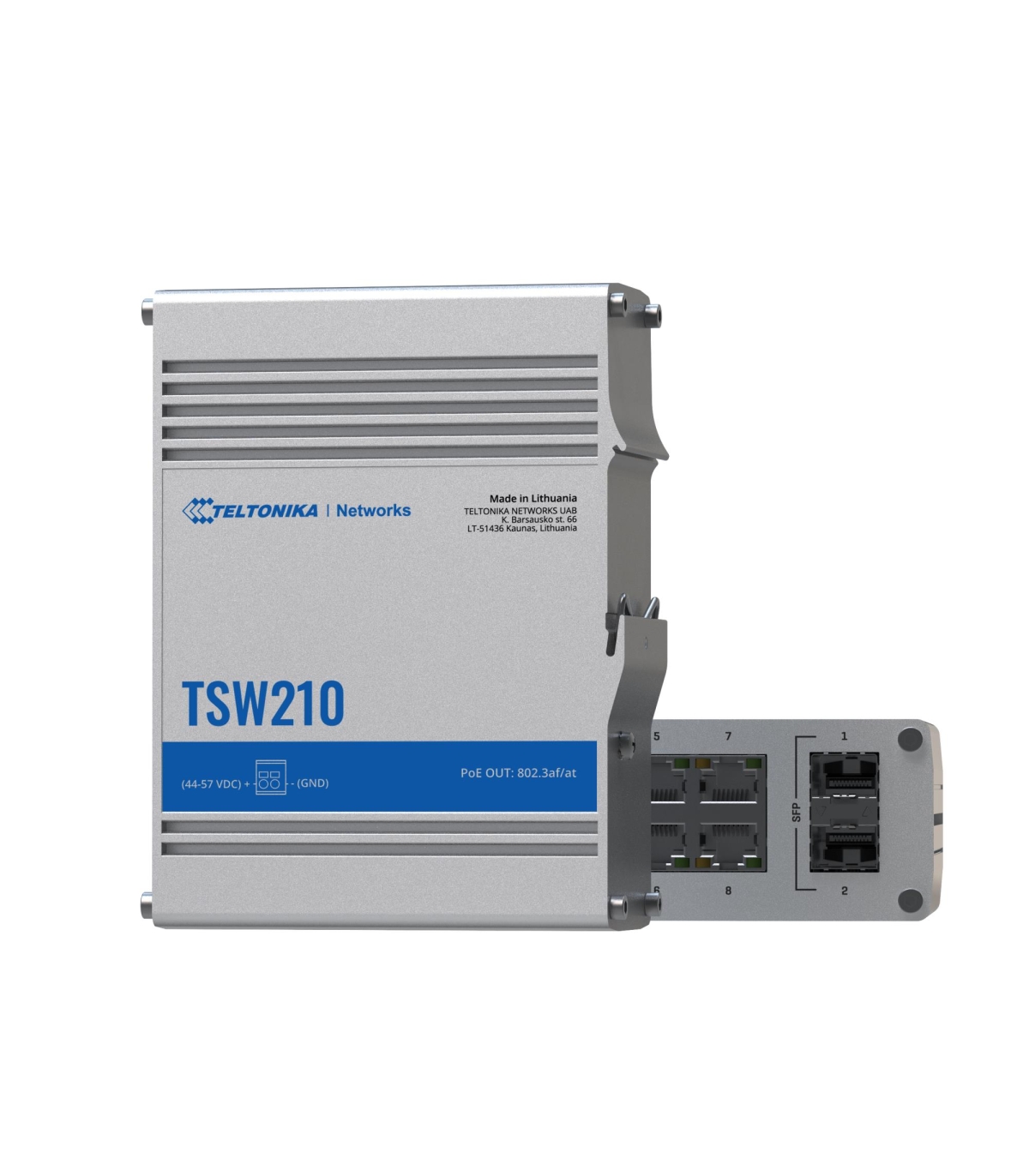

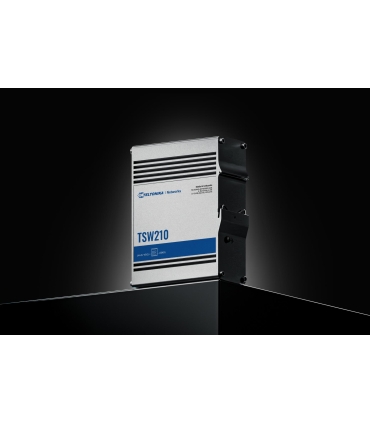

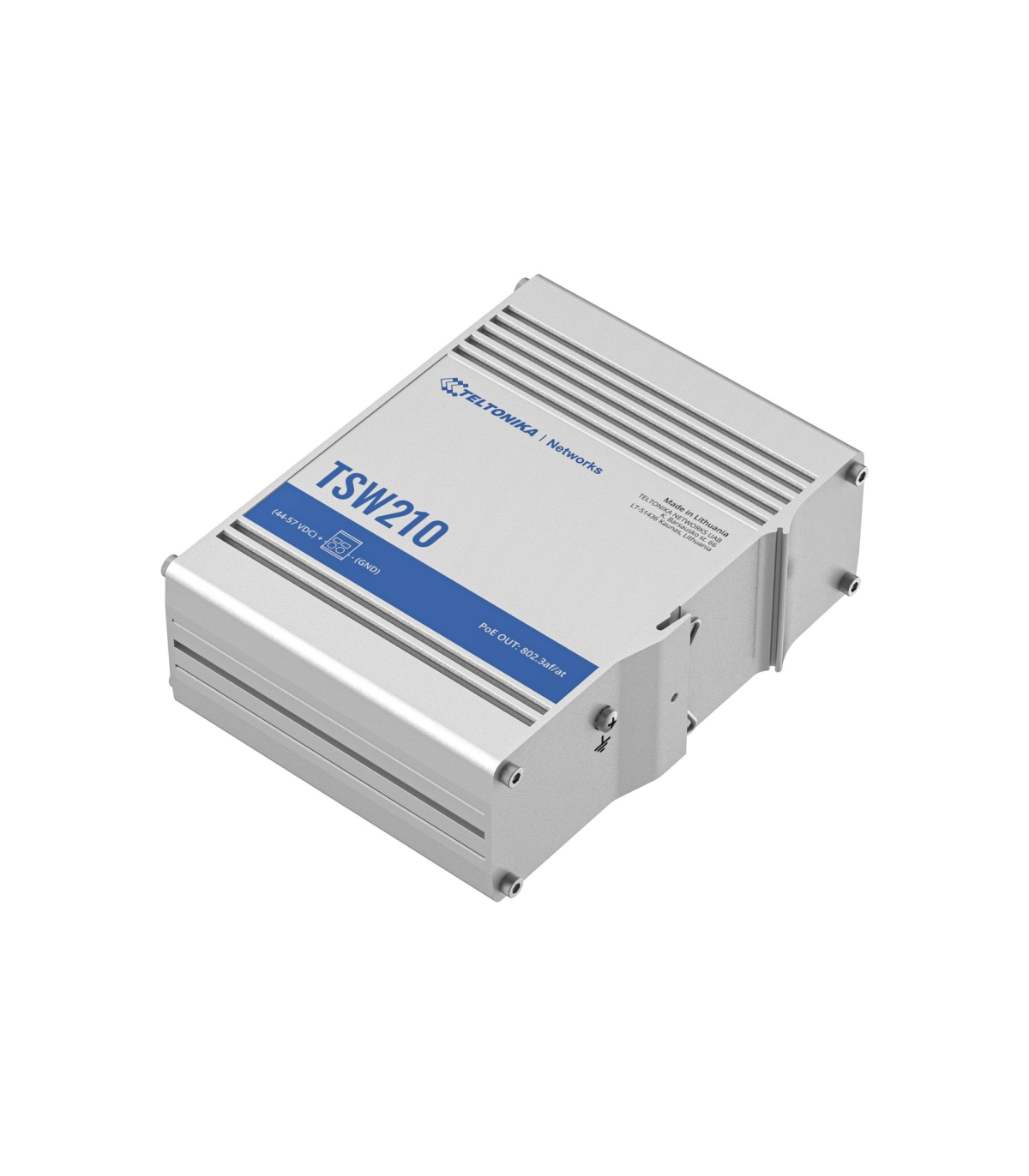

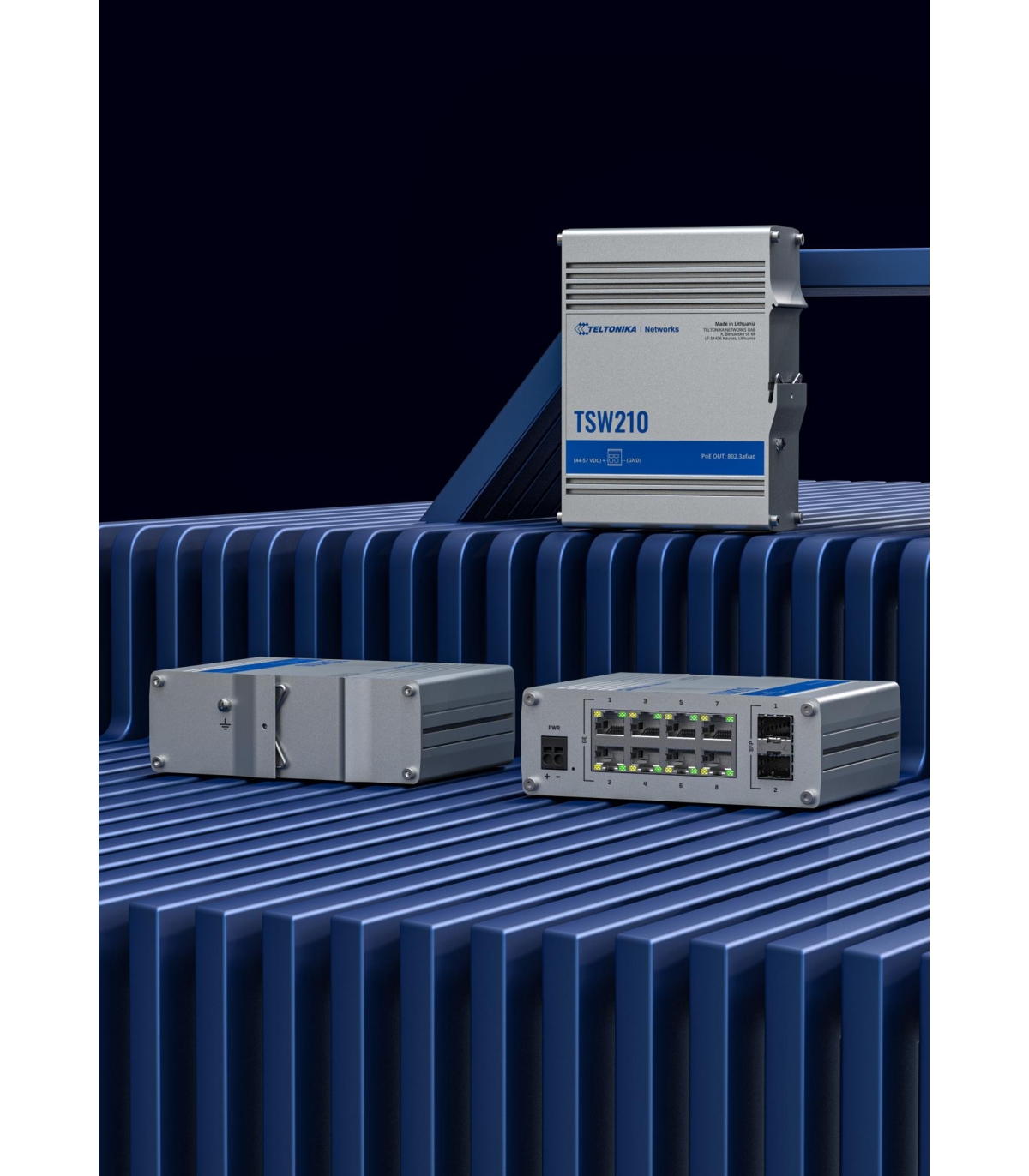

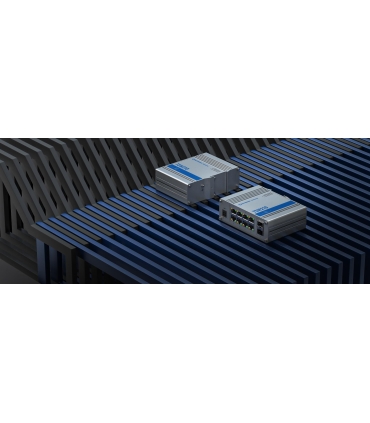

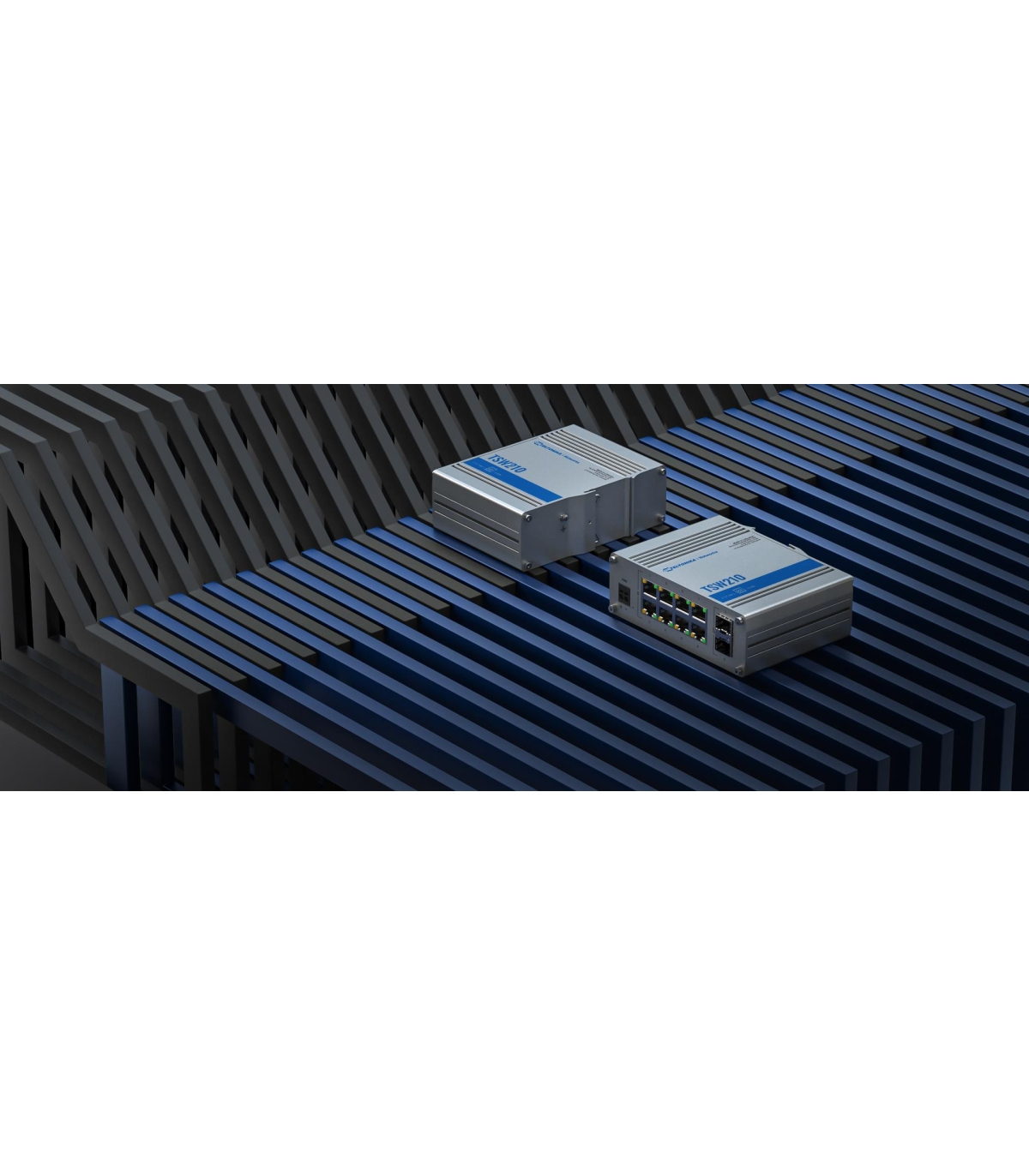

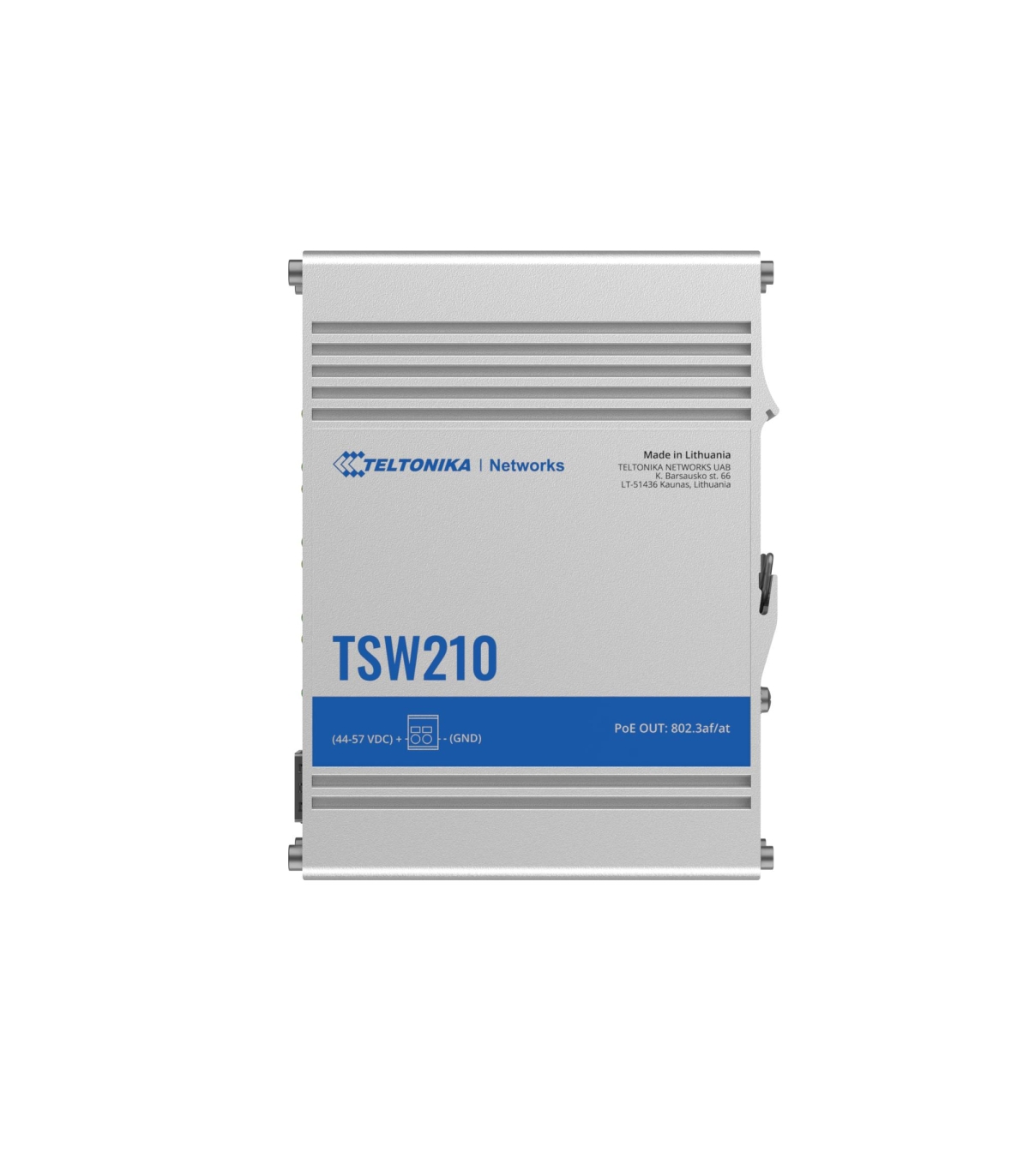

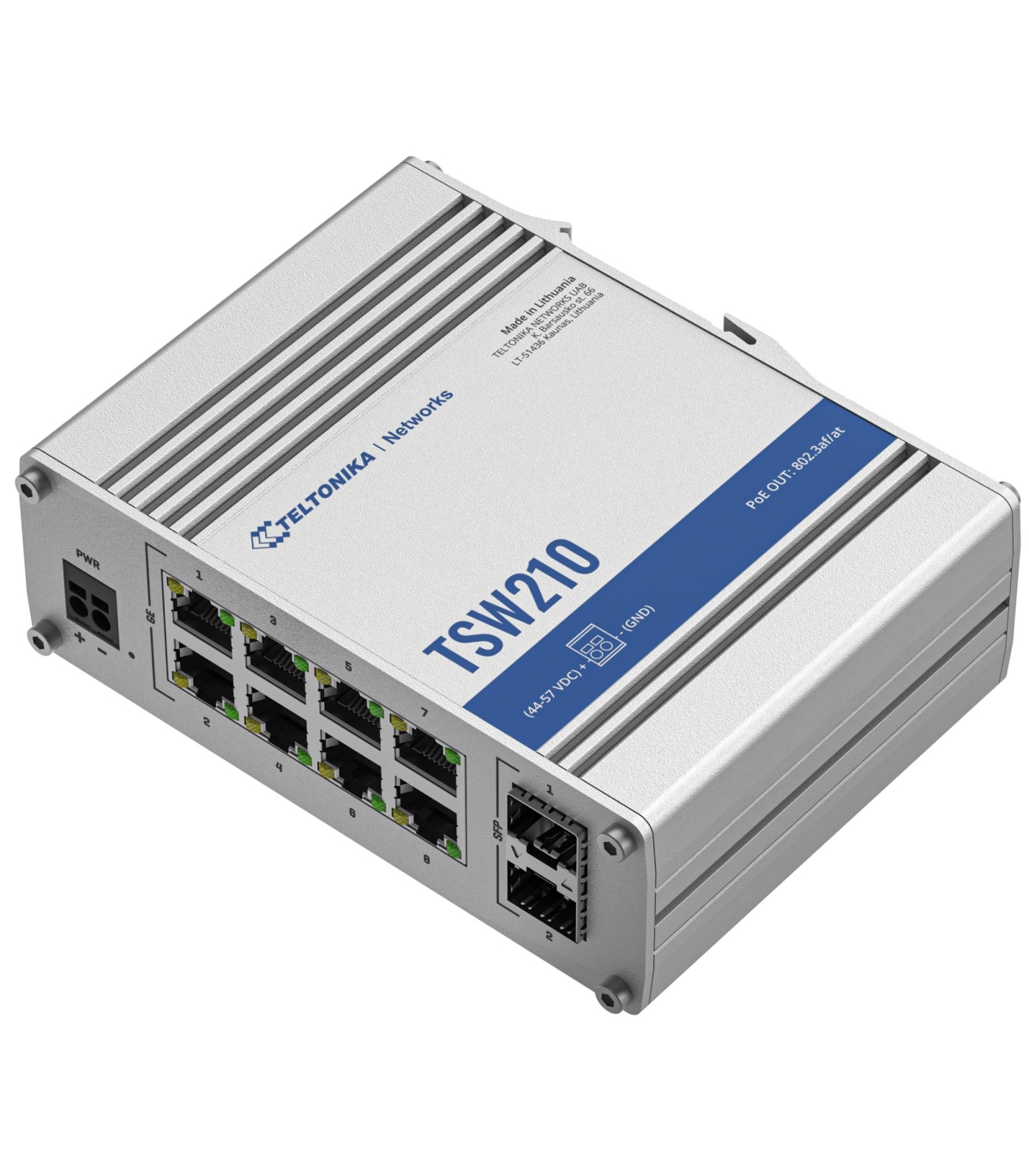

TELTONIKA Switch TSW210000040 TSW210

Технические характеристики

Power supply included

-

Другое

Материал корпуса

Aluminium

Другие свойства

Model

TSW210

Operating relative humidity (H-H)

10 - 90 %

Power consumption (max)

3.71 W

LED indicators

LAN/Power/Status

Model name

TSW210000040

Power Source

DC

Switching capacity

20 Gbit/s

Networking standards

IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x

Rack mounting

No

Power over Ethernet (PoE)

No

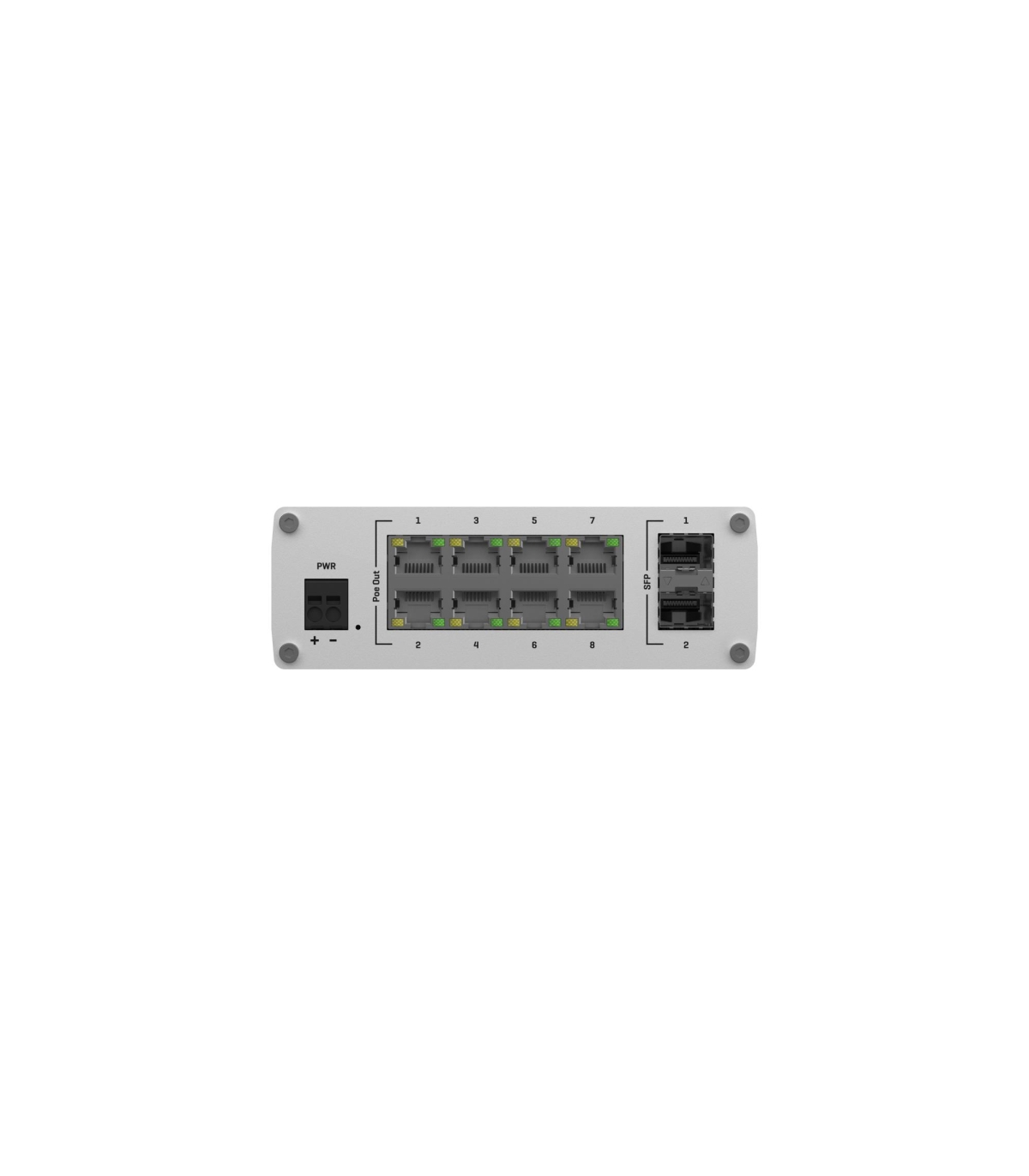

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Jumbo frames support

Yes

MAC address table

2048 entries

Packet buffer memory

128 MB

10G support

No

Auto MDI/MDI-X

Yes

Stackable

No

Auto-negotiation

Yes

International Protection (IP) code

IP30

Jumbo frames

9216

Depth

95.1 mm

Height

44.2 mm

Width

132 mm

Power consumption (typical)

1.03 W

Weight

500 g

Operating temperature (T-T)

-40 - 75 °C

Unit Box Height

0.148

Unit Calculated Volume

0.001761 cubm

Summary

Teltonika TSW210. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP modules quantity: 2. MAC address table: 2048 entries, Switching capacity:

Product colour

Aluminium

DC input voltage

7 - 57 V

DIN rail mounting

Yes

Installed SFP modules quantity

2
