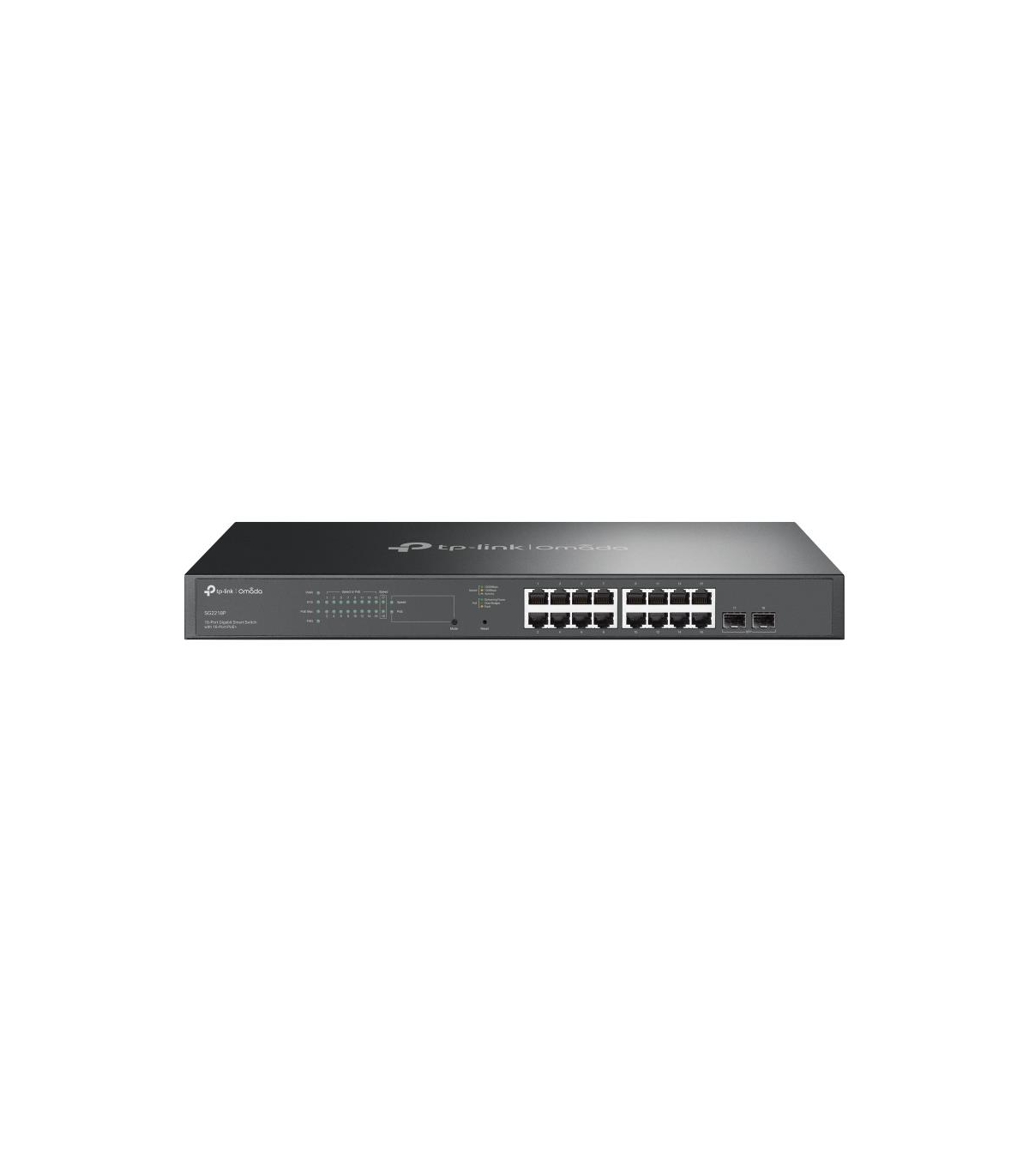

TP-LINK Switch Omada SG2218P Desktop/pedestal 16x10Base-T / 100Base-TX / 1000Base-T 2xSFP PoE+ ports 16 150 Watts SG2218P

Технические характеристики

Power supply included

Yes

Размеры

Bысота (cм)

4,4

Глубина (см)

18

Вес (кг)

2,1

Другое

Цвет

Черный

Другие свойства

Сертификация

CE, FCC, RoHS

Cables included

LAN (RJ-45)

Power consumption (max)

181.4 W

Model name

SG2218P

Form factor

1U

Power Source

DC/PoE

Switching capacity

26.78 Gbit/s

Networking standards

IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z

Switch type

Managed

Rack mounting

Yes

Forwarding rate

26.78 Mpps

Power over Ethernet (PoE)

Yes

Web-based management

Yes

Basic switching RJ-45 Ethernet ports quantity

16

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Flow control support

Yes

Jumbo frames support

Yes

MAC address filtering

Yes

MAC address table

8000 entries

Packet buffer memory

4.1 MB

10G support

No

Auto MDI/MDI-X

Yes

Broadcast storm control

Yes

Multicast support

Yes

Switch layer

L2/L2+

VLAN support

Yes

Quality of Service (QoS) support

Yes

SFP module slots quantity

2

Total Power over Ethernet (PoE) budget

150 W

Auto-negotiation

Yes

Heat dissipation

619.06 BTU/h

Jumbo frames

9

Access Control List (ACL)

Yes

Link aggregation

Yes

Static port security

Yes

IP routing

Yes

Rate limiting

Yes

MIB support

MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIBs, RMON MIB(RFC1757, rmon 1,2,3,9)

Spanning tree protocol

Yes

System event log

Yes

ARP inspection

Yes

Width

440 mm

Ethernet LAN data rates

10,100,1000 Mbit/s

SSH/SSL support

Yes

Unit Box Width

0.0867

Unit Calculated Weight

3.42 kg

Summary

TP-Link Omada 18-Port Gigabit Smart Switch with 16-Port PoE+. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000

DHCP features

DHCP client/DHCP relay/DHCP snooping

Loop protection

Yes

Configuring Location Settings (CLI)

Yes

Policy-based routing

Yes

Authentication

MAC-based authentication,Port-based authentication

BPDU filtering/protection

Yes

Multicast features

Multicast forwarding
