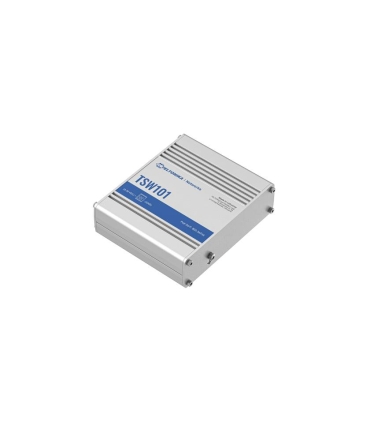

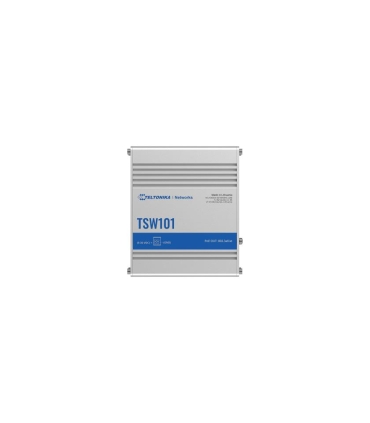

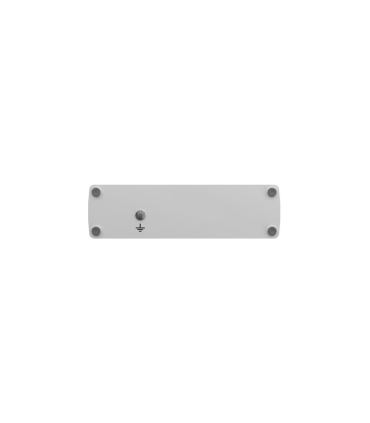

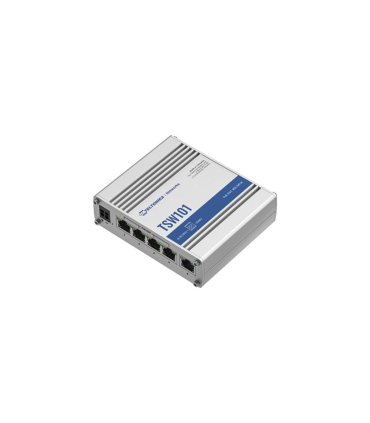

TELTONIKA Switch TSW101000000 PoE ports 4 60 Watts TSW101

Dimensions

Height (cm)

9,5

Other

Housing material

Aluminium

Other features

Certification

CE, REACH, RoHS, WEEETSW101 CETSW101 UKCATSW101 FCCTSW101 ICTSW101 CBTSW101 RCME-Mark

Model

TSW101

Operating relative humidity (H-H)

10 - 90 %

Power consumption (max)

2.31 W

LED indicators

Power/Status

Model name

TSW101000000

Power Source

DC

Switching capacity

10 Gbit/s

Networking standards

IEEE 802.3/IEEE 802.3az/IEEE 802.3u

Input voltage

9 - 30 V

Power over Ethernet (PoE)

Yes

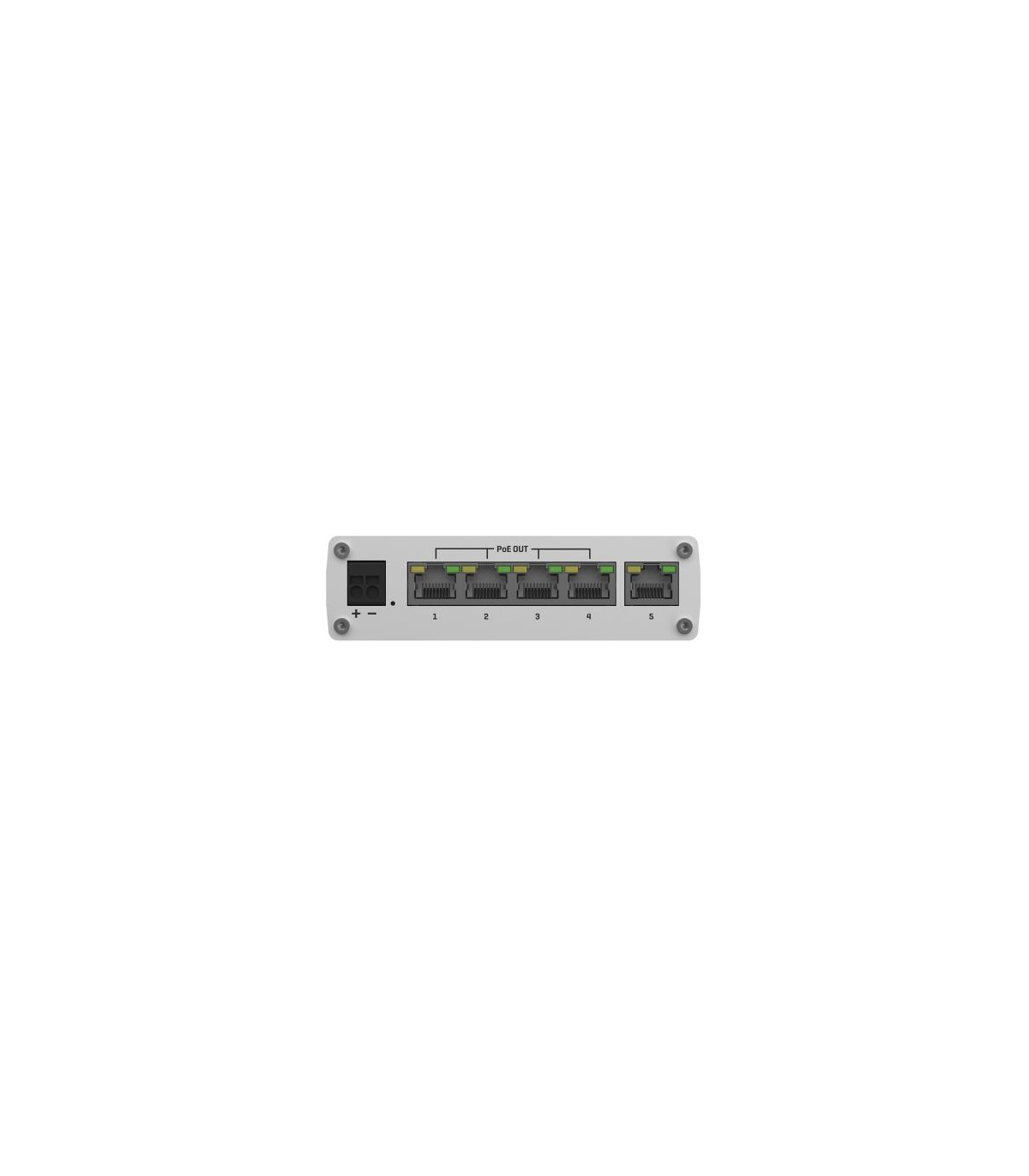

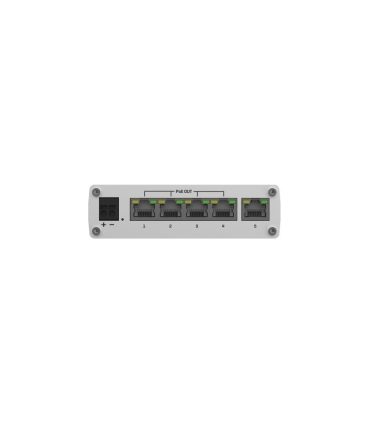

Basic switching RJ-45 Ethernet ports quantity

5

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Jumbo frames support

Yes

MAC address table

2000 entries

10G support

No

Auto MDI/MDI-X

Yes

Power over Ethernet (PoE) ports quantity

4

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

120 W

International Protection (IP) code

IP30

Jumbo frames

9216

Depth

32 mm

Width

115 mm

Power consumption (typical)

0.64 W

Weight

354 g

Operating temperature (T-T)

-40 - 75 °C

Ethernet LAN data rates

10,100,1000 Mbit/s

Summary

Teltonika TSW101. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3az,

Product colour

Metallic

Harmonized System (HS) code

851762

Power over Ethernet (PoE) type supported

Passive PoE

Power connector

Terminal block (2-pin)
