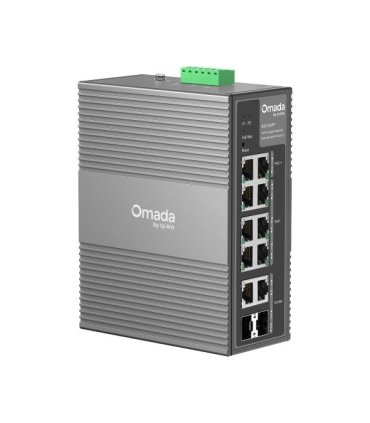

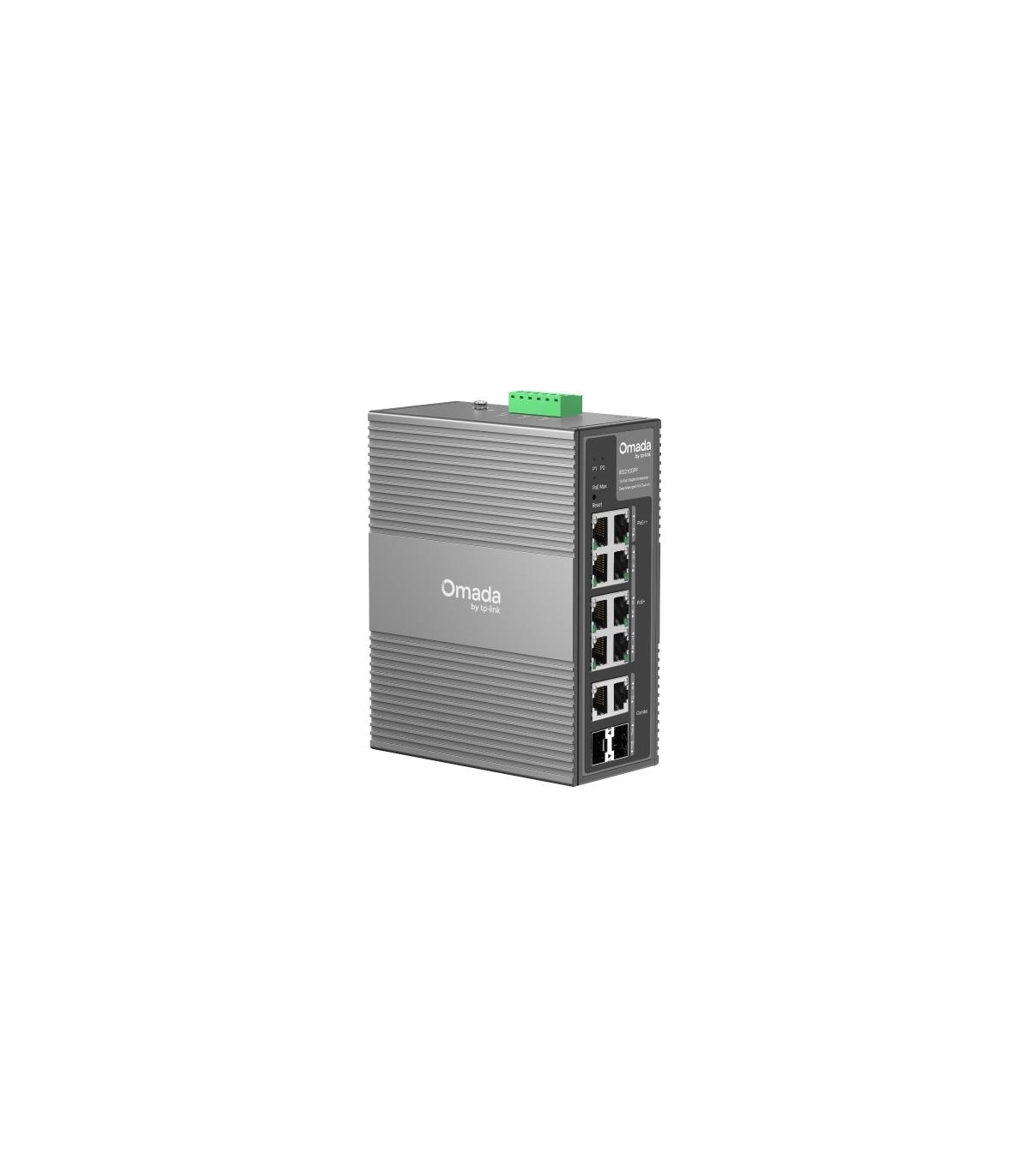

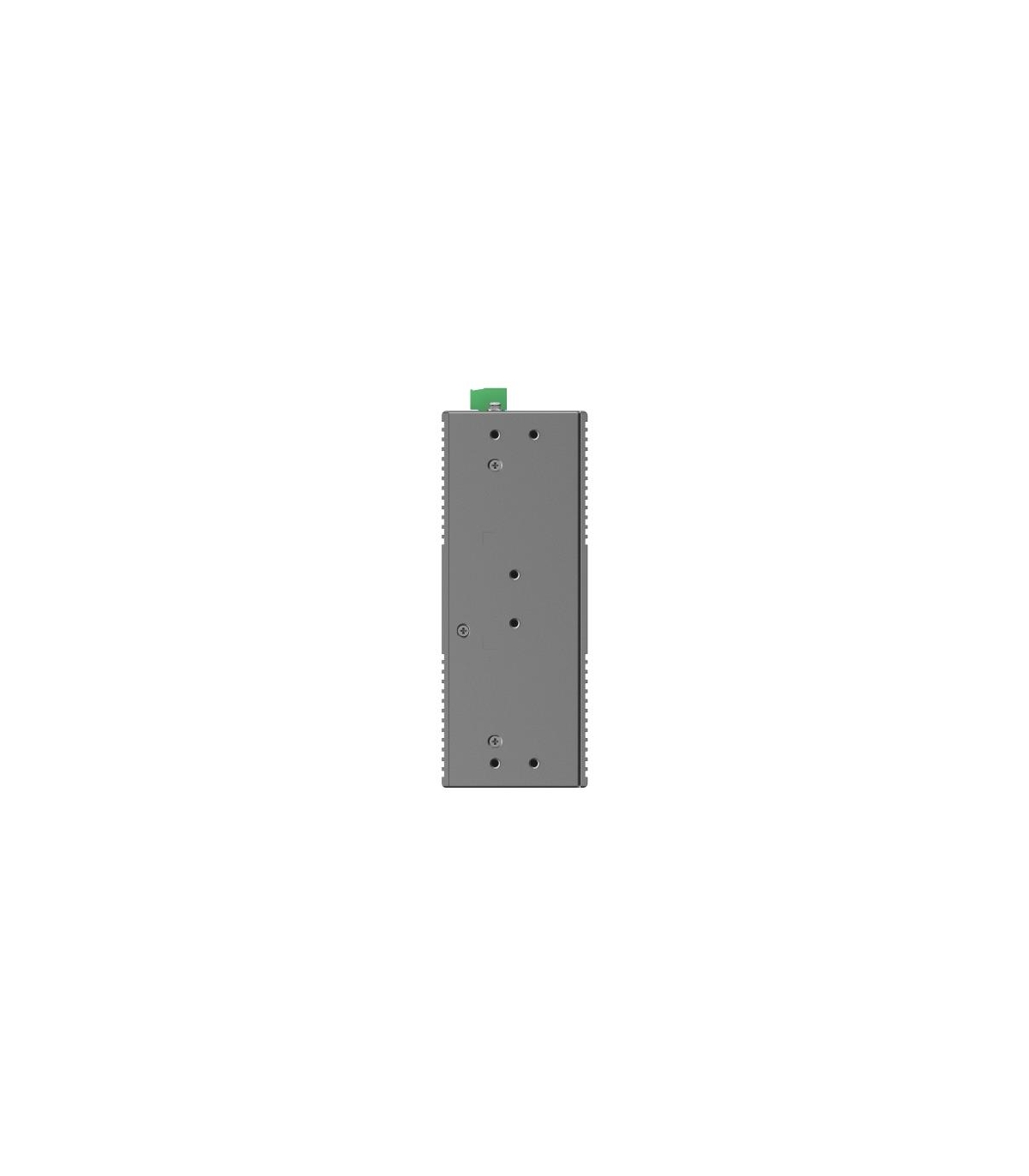

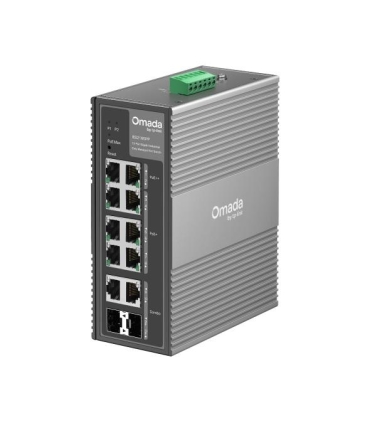

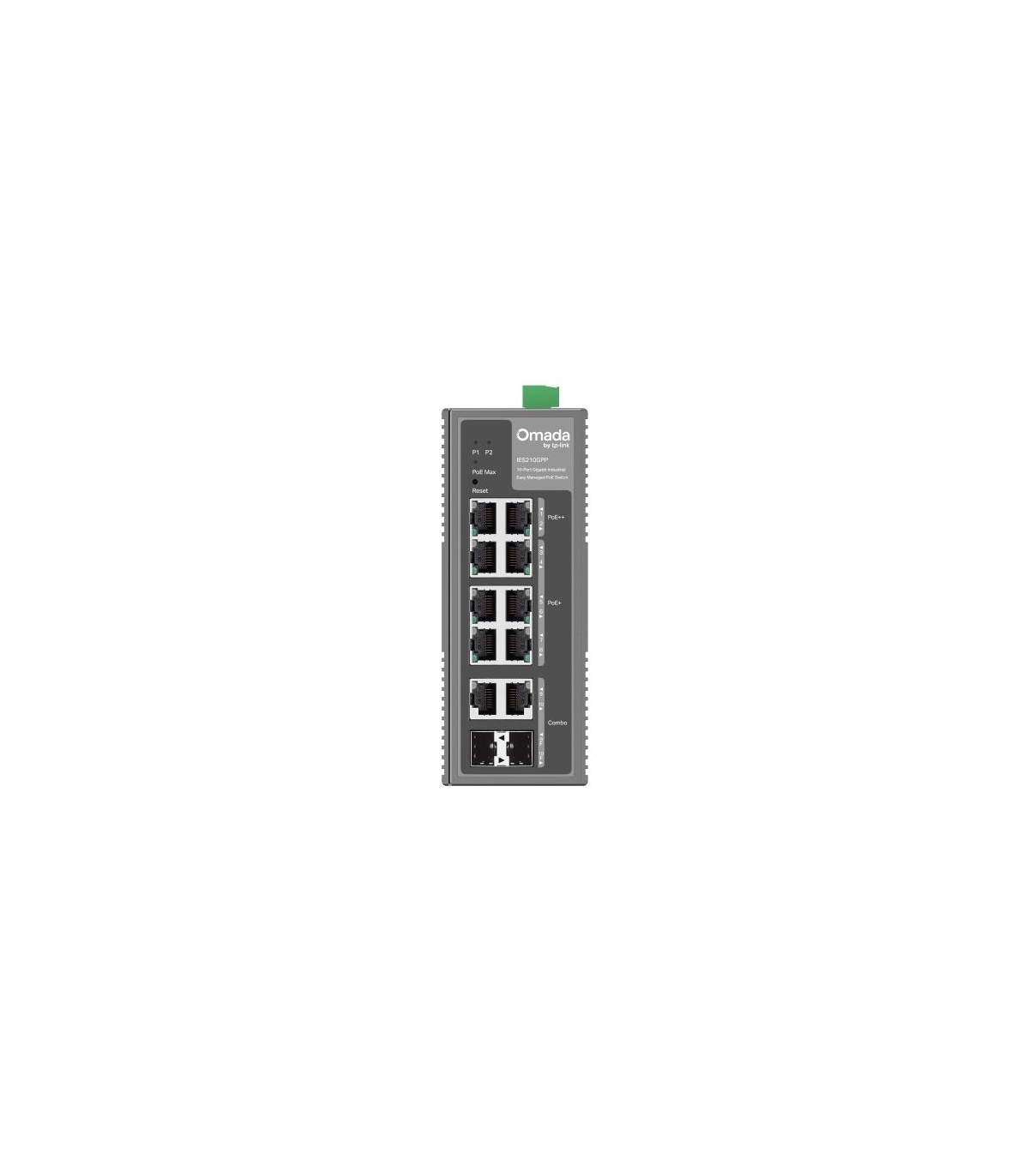

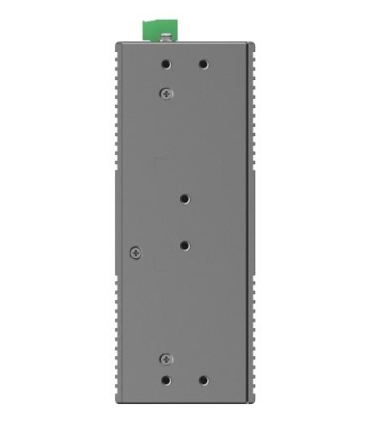

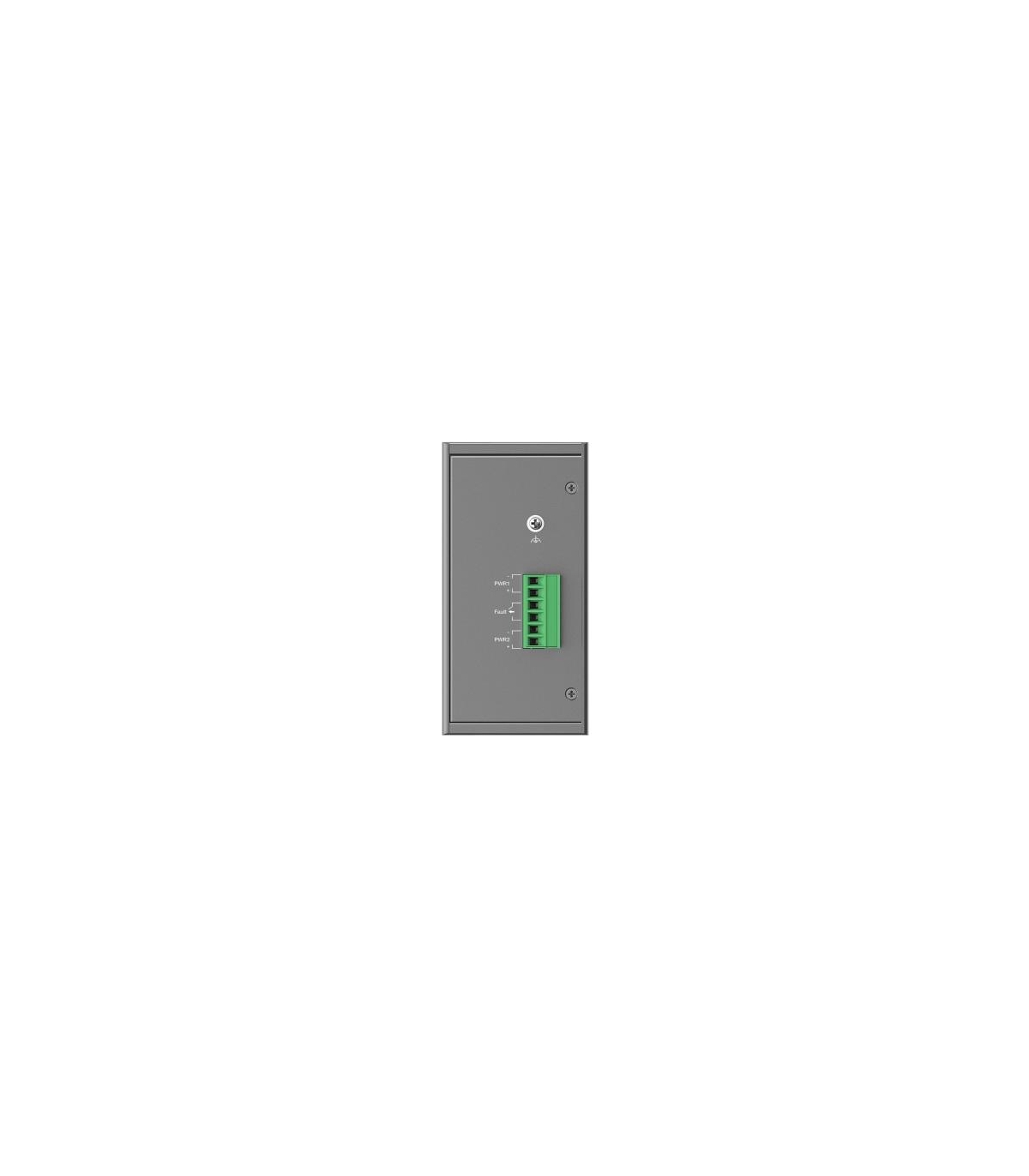

TP-LINK Switch IES210GPP Type L2 PoE+ ports 6 IES210GPP

Other

Color

Gray

Other features

Model

IES210GPP

Model name

IES210GPP

Form factor

DIN rail

Power Source

DC

Switching capacity

20 Gbit/s

Networking standards

IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt

Switch type

Managed

Rack mounting

Yes

Forwarding rate

14.88 Mpps

Power over Ethernet (PoE)

Yes

Web-based management

Yes

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Flow control support

Yes

Jumbo frames support

Yes

MAC address table

8000 entries

Packet buffer memory

4000 MB

10G support

No

Auto MDI/MDI-X

Yes

Broadcast storm control

Yes

IGMP snooping

Yes

Multicast support

Yes

Port mirroring

Yes

VLAN support

Yes

Store-and-forward

Yes

Quality of Service (QoS) support

Yes

Total Power over Ethernet (PoE) budget

240 W

Auto-negotiation

Yes

Combo SFP ports quantity

2

Jumbo frames

15000

Link aggregation

Yes

Number of VLANs

4000

Depth

120 mm

Height

60 mm

Width

155 mm

Ethernet LAN data rates

10,100,1000 Mbit/s

Power over Ethernet plus (PoE+) ports quantity

6

Unit Calculated Volume

0.00352 cubm

Summary

TP-Link Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address

DC input voltage

12 - 57 V

DHCP features

DHCP client

Loop protection

Yes

Power over Ethernet 4PPoE (PoE++) ports quantity

2
