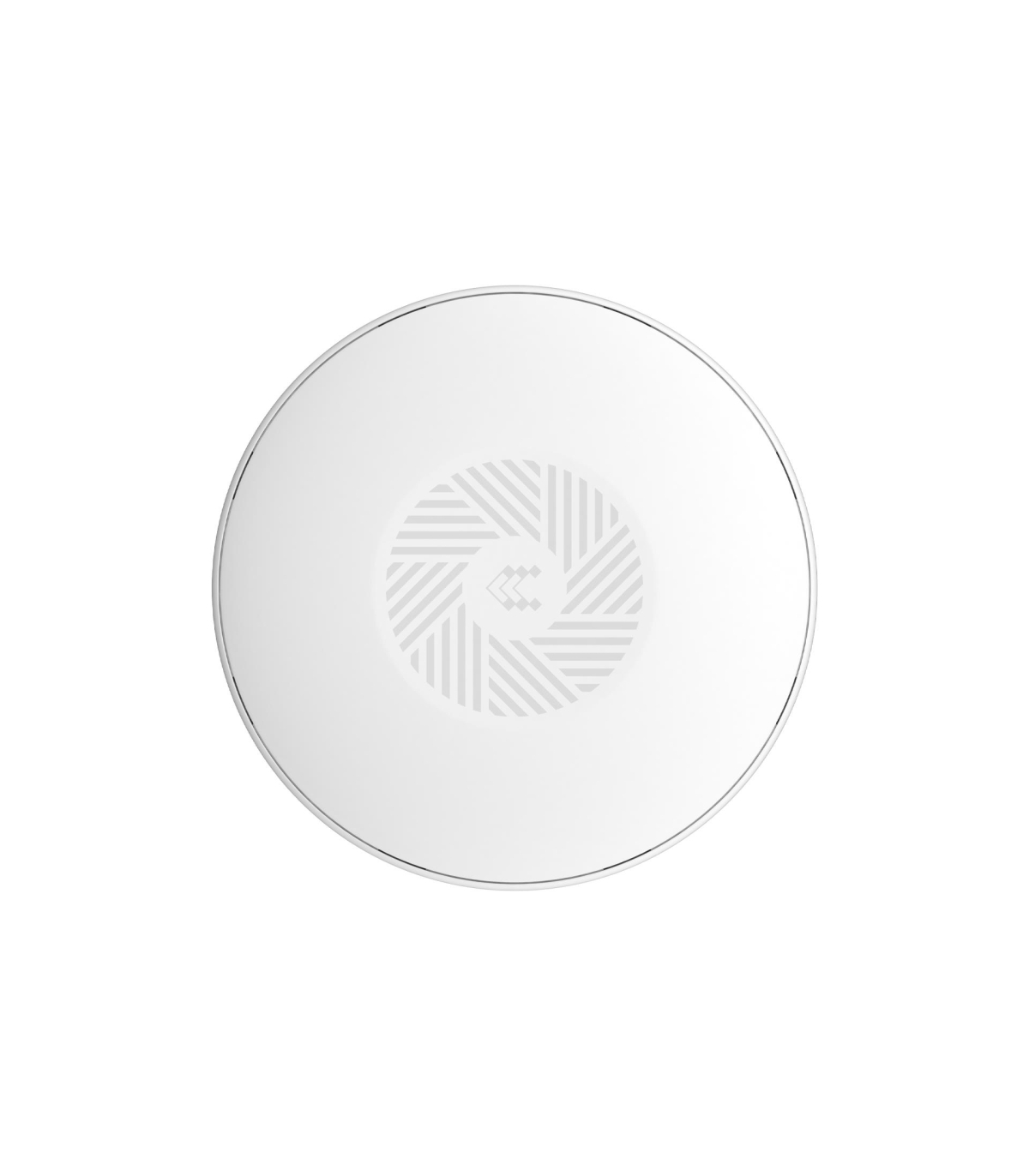

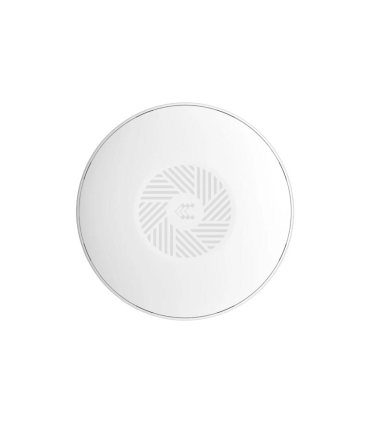

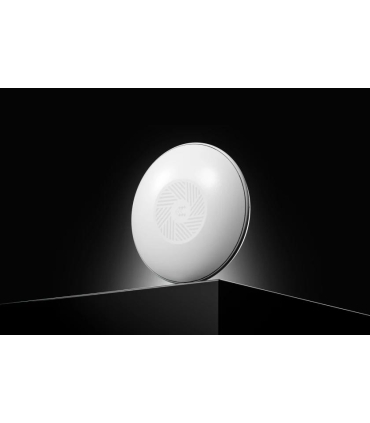

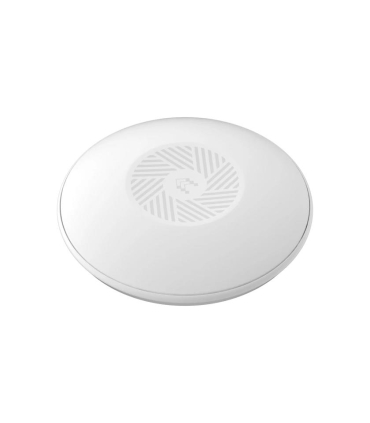

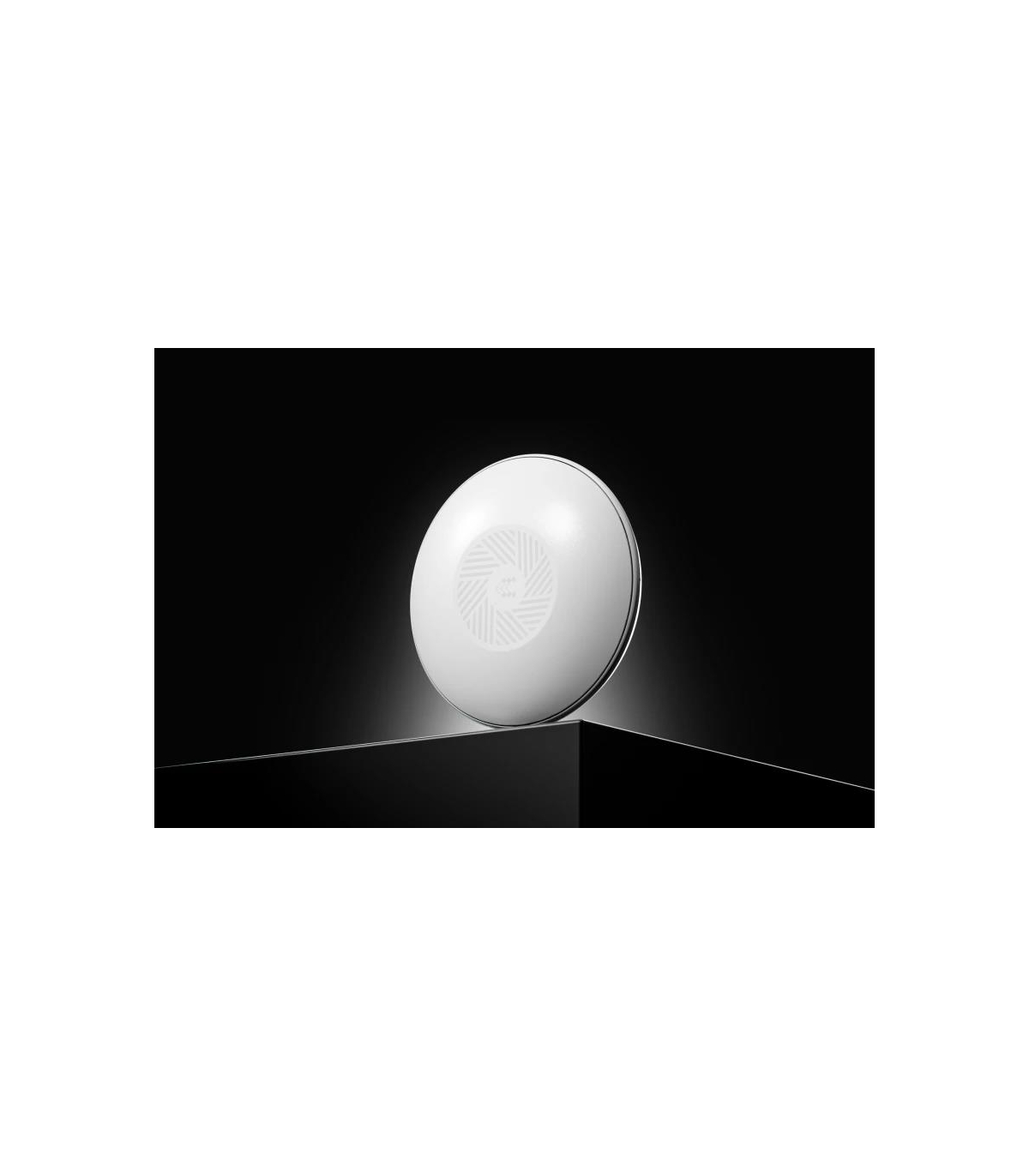

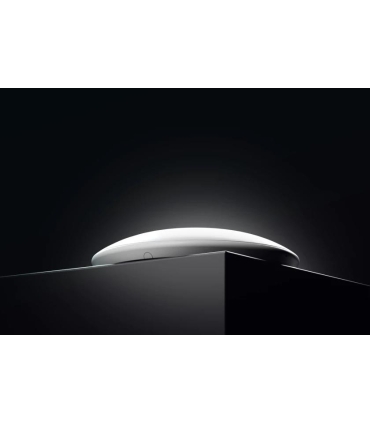

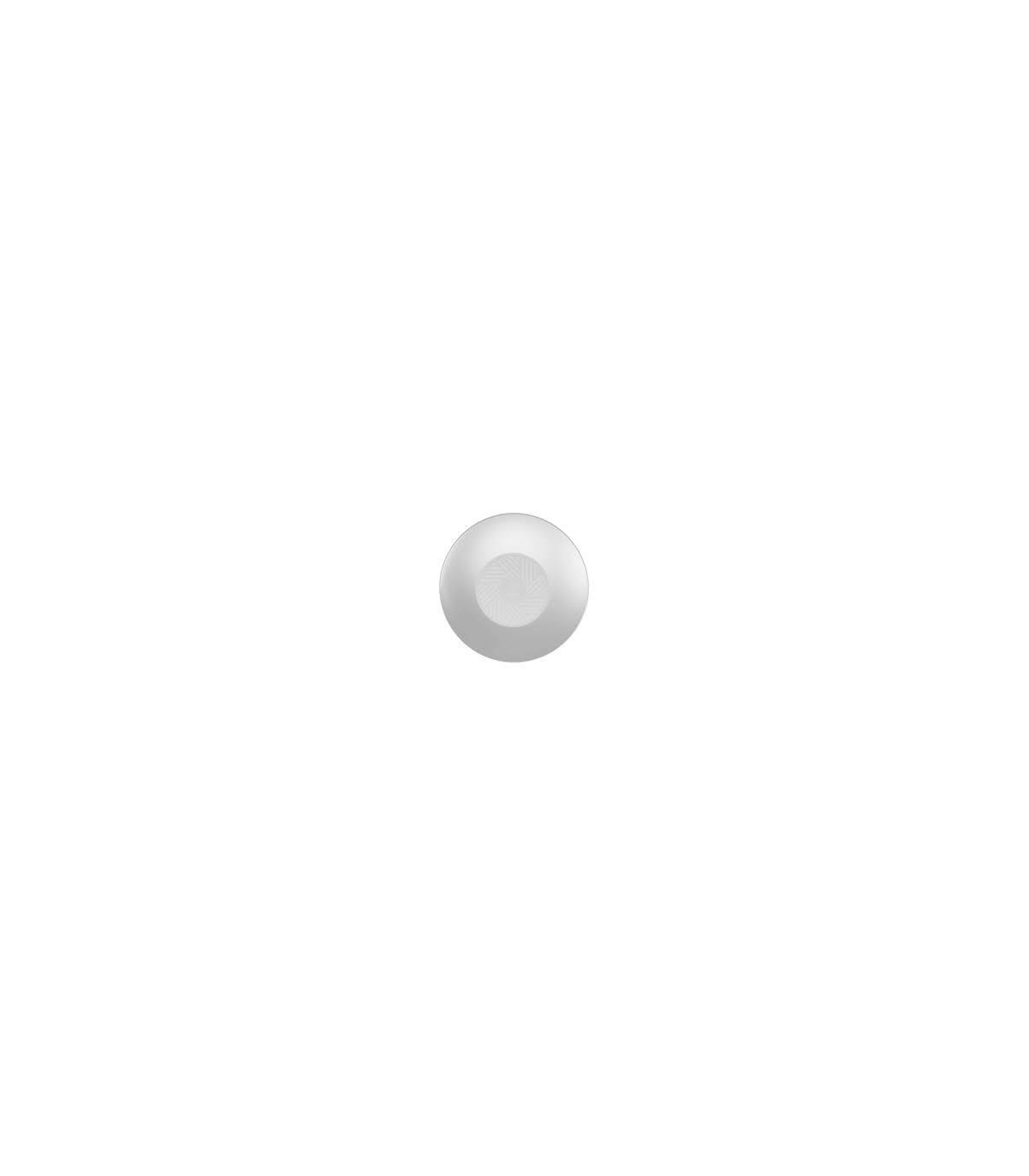

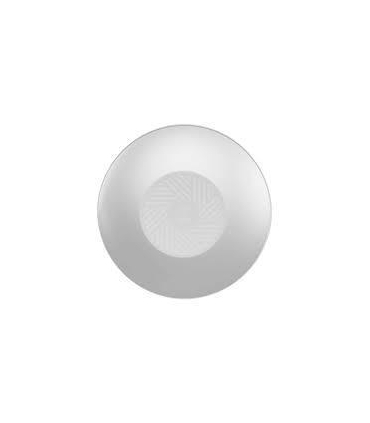

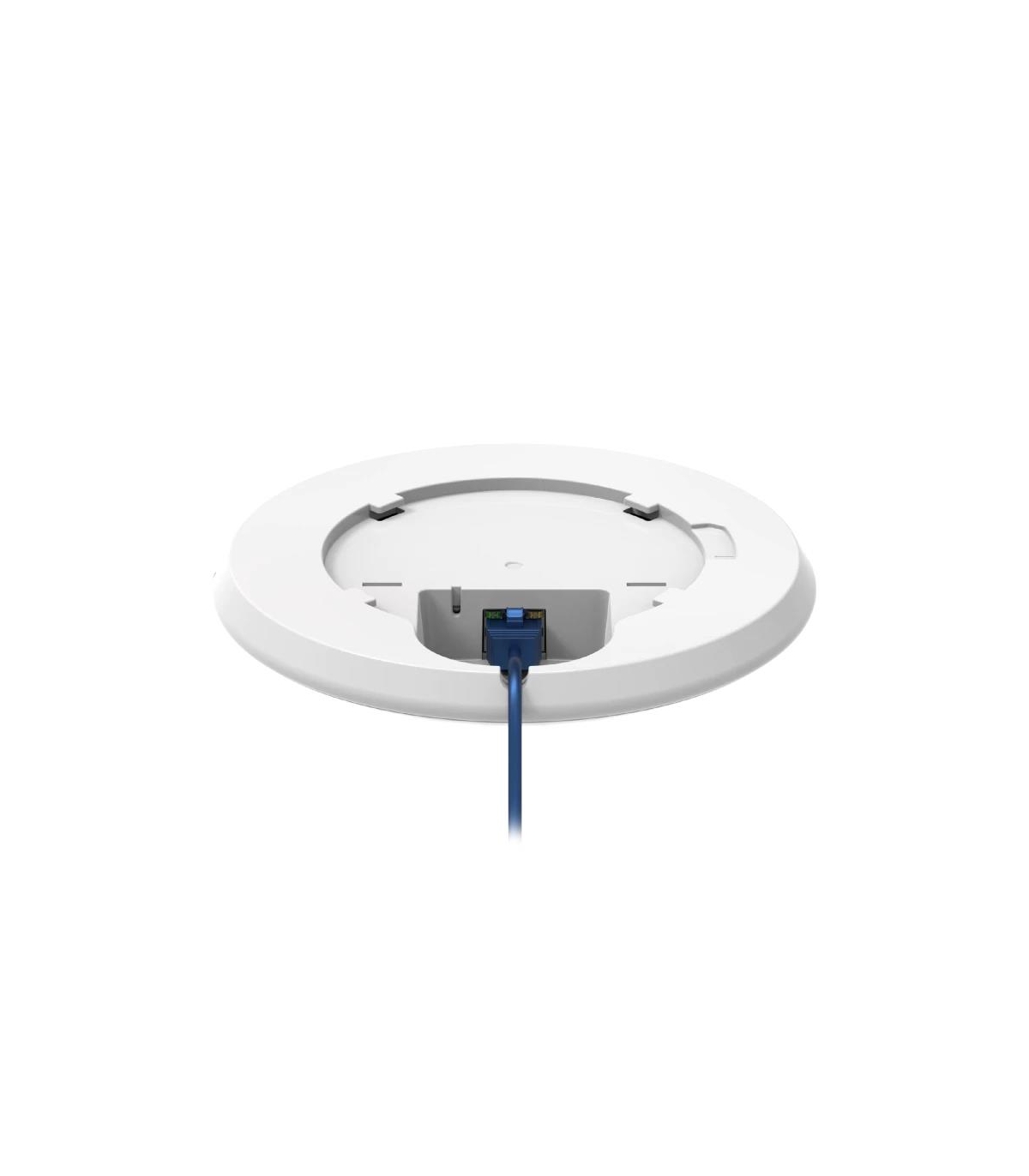

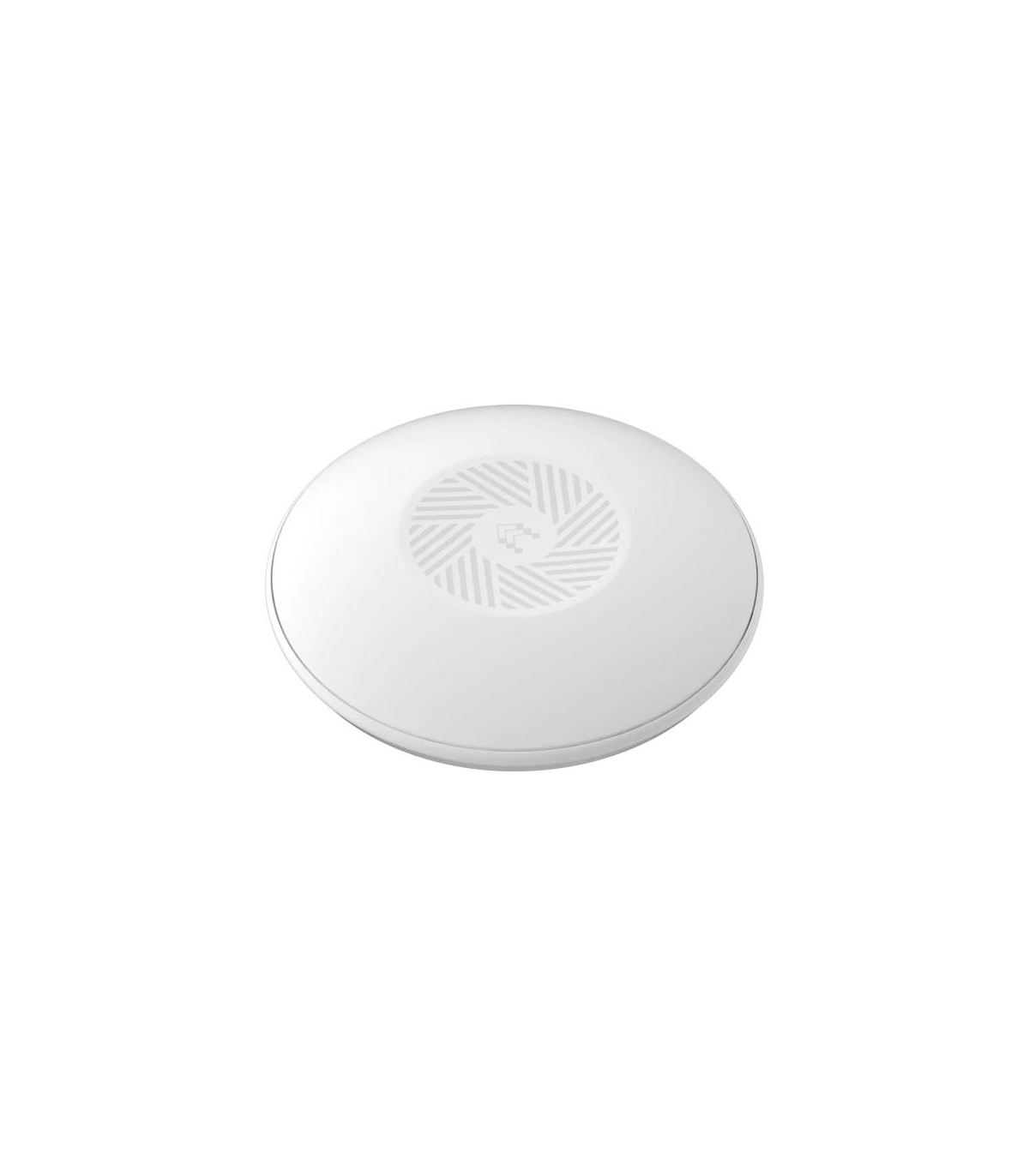

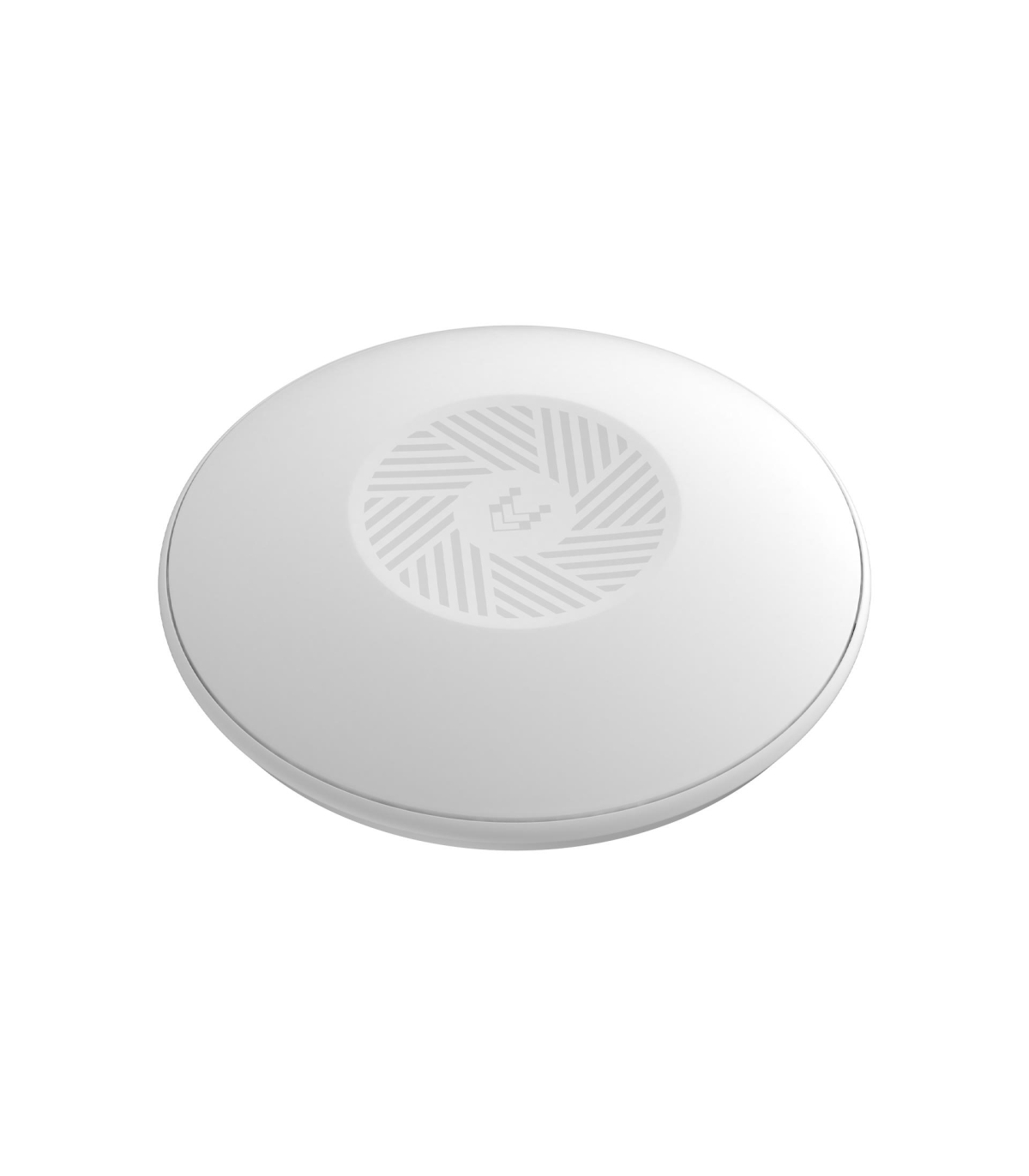

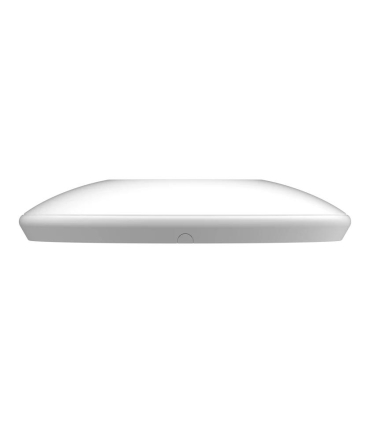

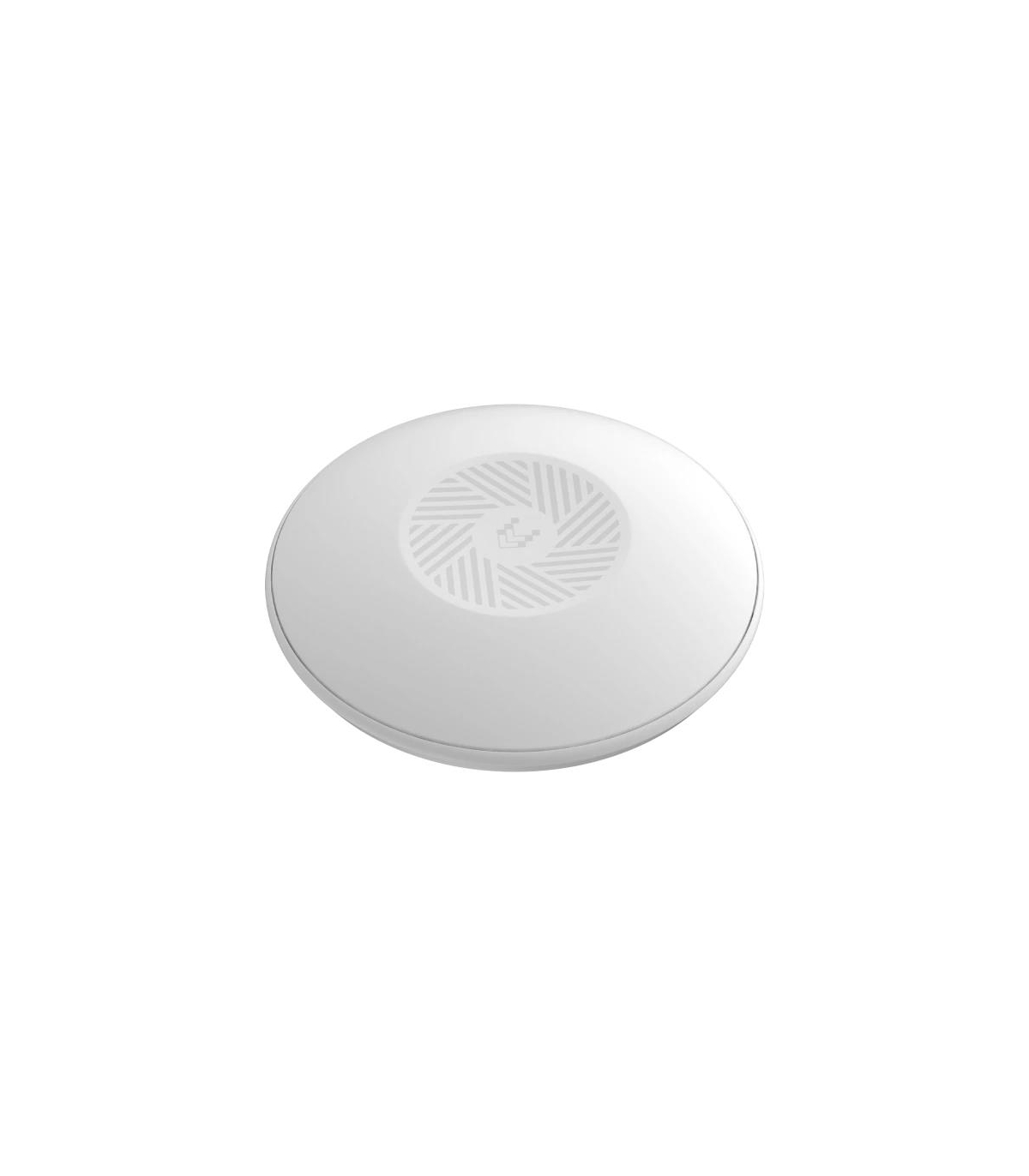

TELTONIKA WRL ACCESS POINT/TAP200

Networking

LAN

1

Antenna Type

Internal

Antennas quantity

2

Ethernet LAN data rates (Mbit/s)

10/100/1000

Dimensions

Weight (g)

190

Other

Color

White

Housing material

Plastic

Other features

Certification

CE, UKCA, FCC, IC, RCM, CB, EAC, UCRF, WEEE

Model

TAP200

Operating relative humidity (H-H)

10 - 90 %

LED indicators

Power

Model name

TAP200000000

Networking standards

IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.11r/IEEE 802.3/IEEE 802.3az/IEEE 802.3u

Security algorithms

AES-CCMP/EAP-TLS/HTTPS/OWE/PEAP/SSH/TKIP/WPA2-EAP/WPA2-PSK/WPA3-EAP/WPA3-SAE/WPA-EAP/WPA-PSK

WAN connection

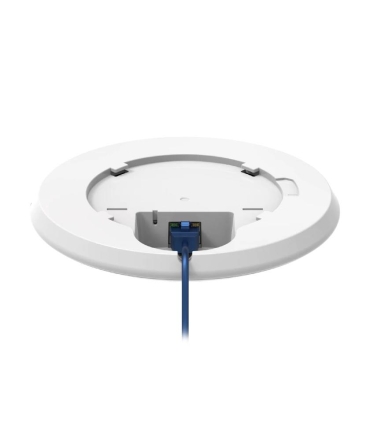

Ethernet (RJ-45)

Flash memory

16 MB

Power over Ethernet (PoE)

Yes

Web-based management

Yes

MAC address filtering

Yes

Maximum data transfer rate

867 Mbit/s

Supported network protocols

TCP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, SSL v3, TLS, ARP, SSH

VLAN support

Yes

Number of users

100 user(s)

2.4 GHz

Yes

5 GHz

Yes

International Protection (IP) code

IP30

Depth

158 mm

Height

30 mm

Width

158 mm

Internal memory

256 MB

Operating system installed

RutOS

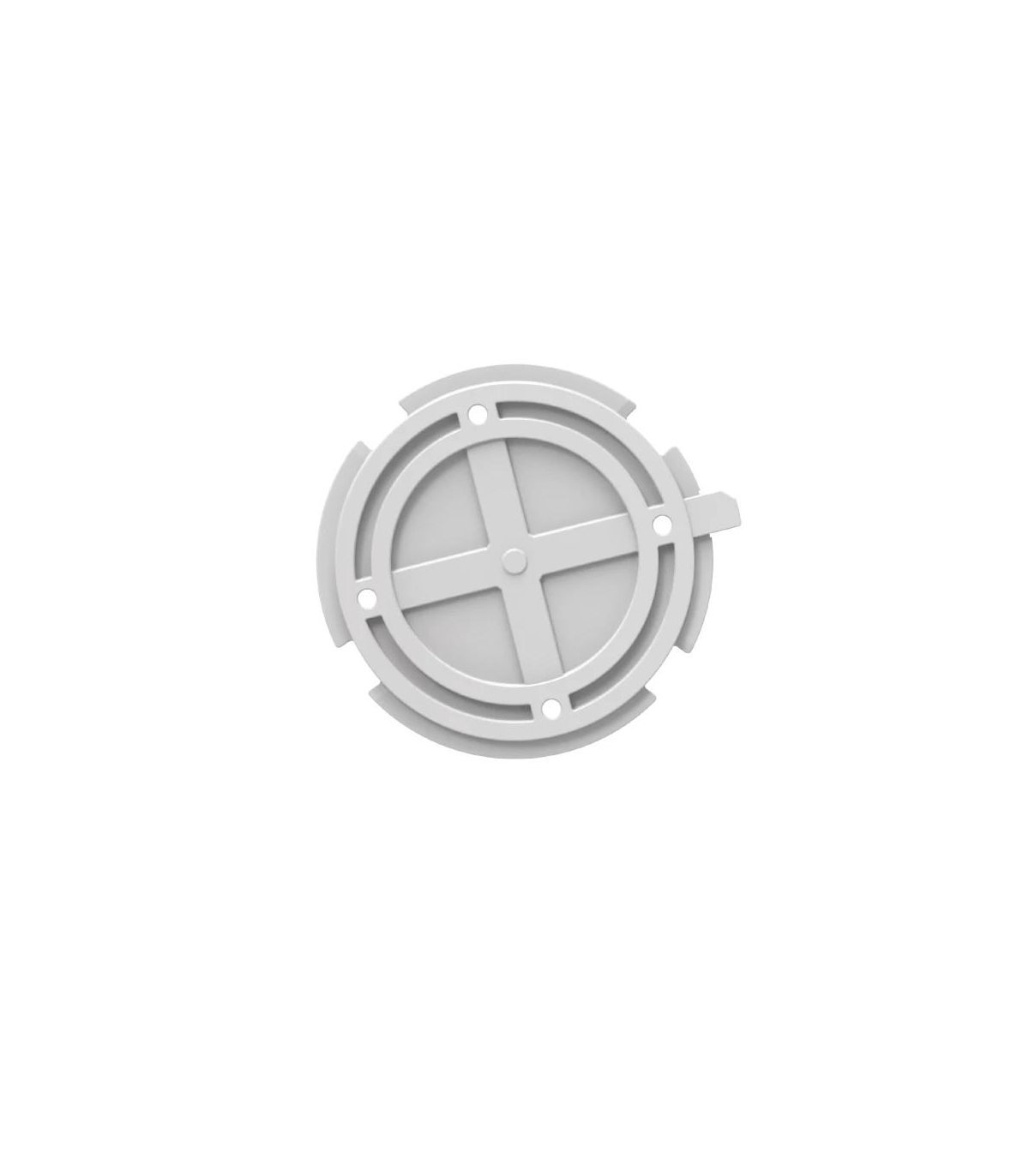

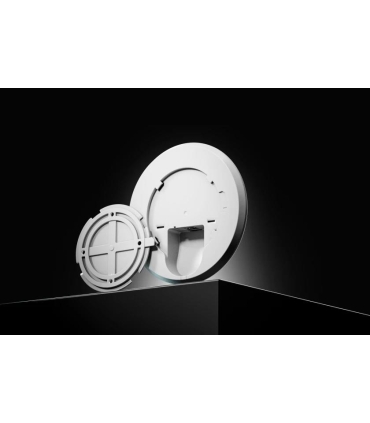

Placement

Ceiling,Wall

Operating temperature (T-T)

-40 - 75 °C

Processor frequency

880 MHz

Unit Calculated Volume

0.0009874 cubm

Summary

Teltonika TAP200. 2.4 GHz, 5 GHz, Maximum data transfer rate: 867 Mbit/s. Security algorithms: AES-CCMP, EAP-TLS, HTTPS, OWE, PEAP, SSH, TKIP, WPA-EAP, WPA-PSK, WPA2-EAP, WPA2-PSK, WPA3-EAP,.... Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethe

Power over Ethernet (PoE) type supported

Active PoE

6 GHz

No

Maximum data transfer rate (2.4 GHz)

300 Mbit/s

DC voltage range

44 - 57 V

Wi-Fi roaming

Yes

Command-line interface (CLI)

Yes
