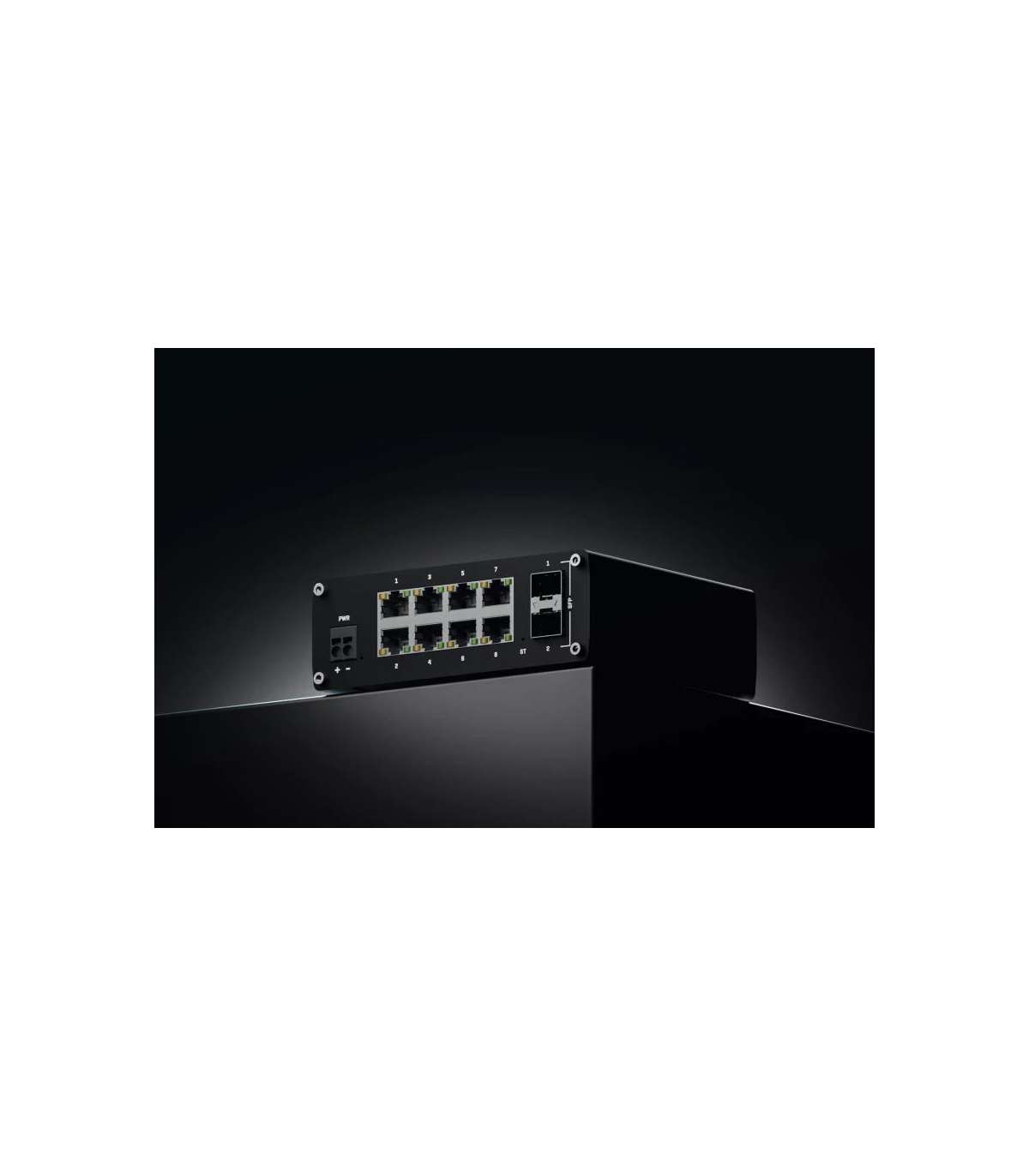

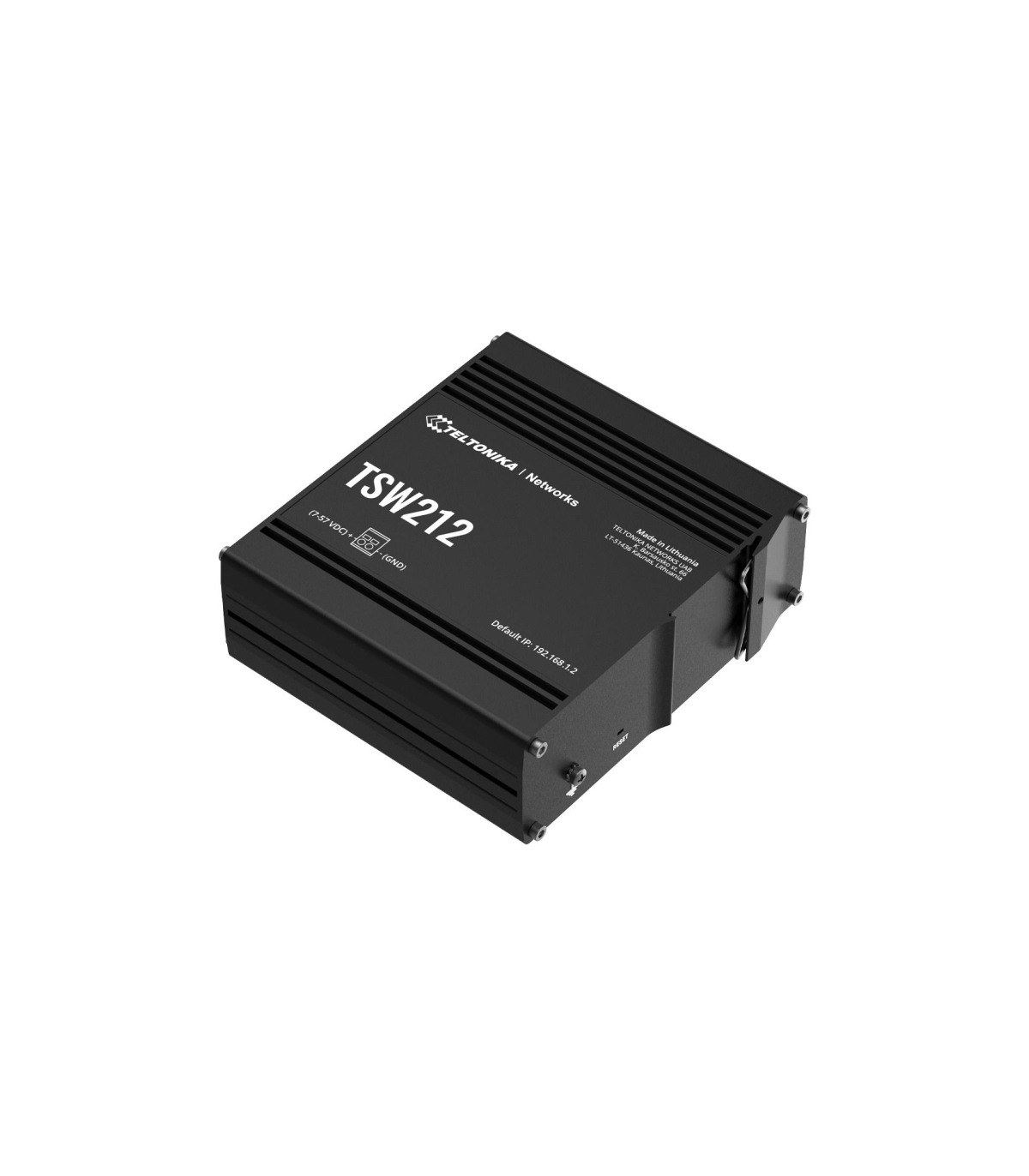

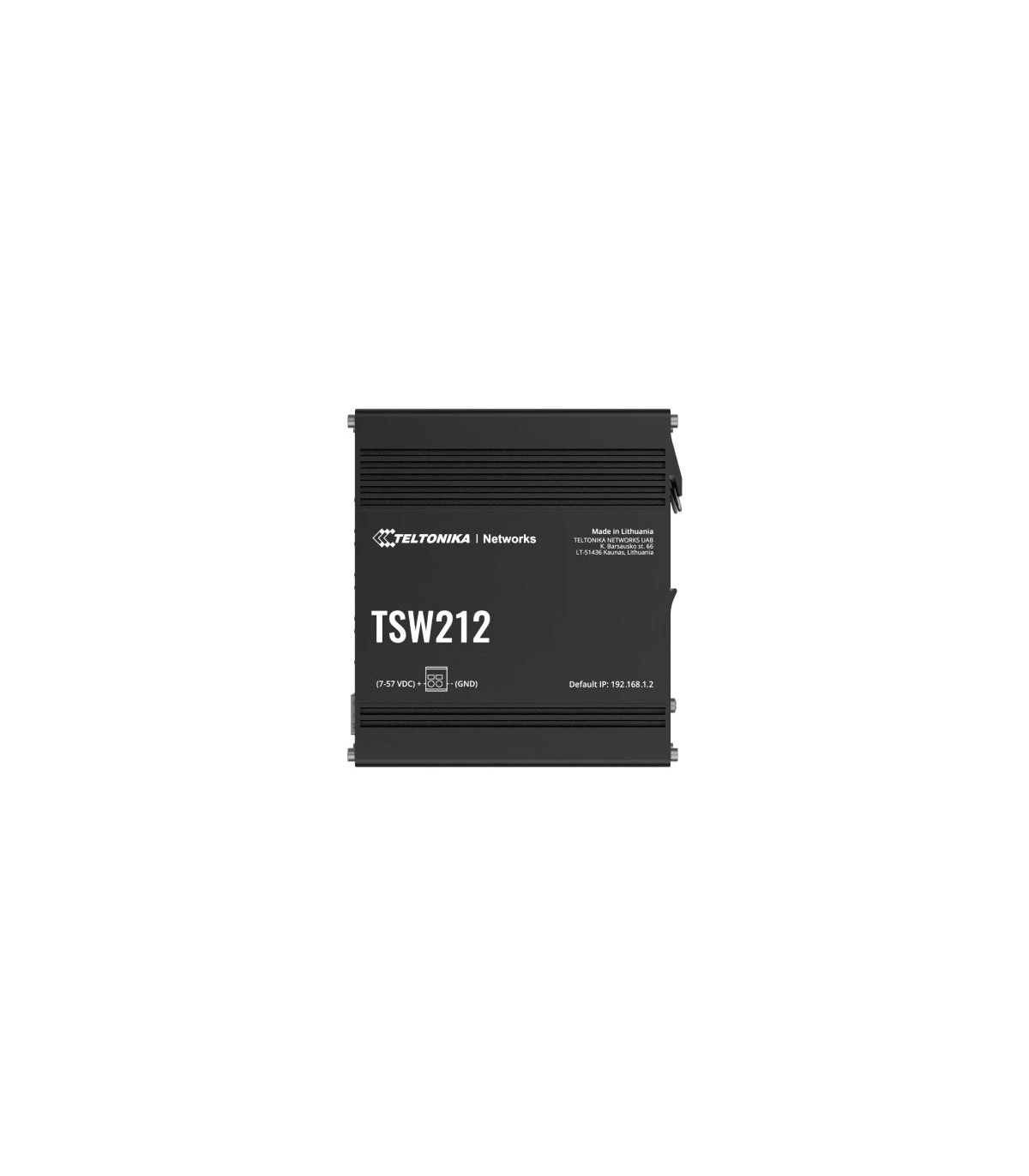

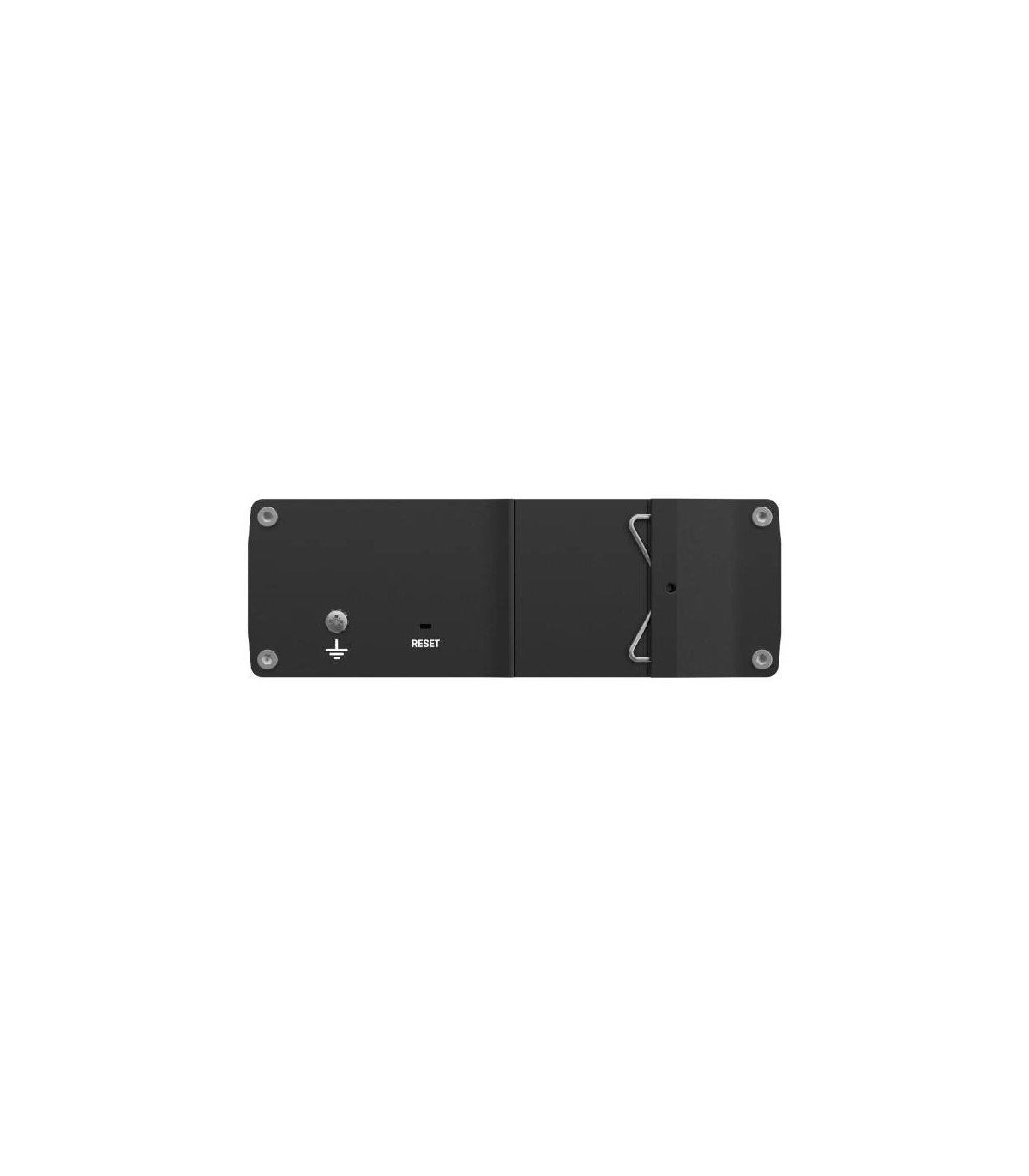

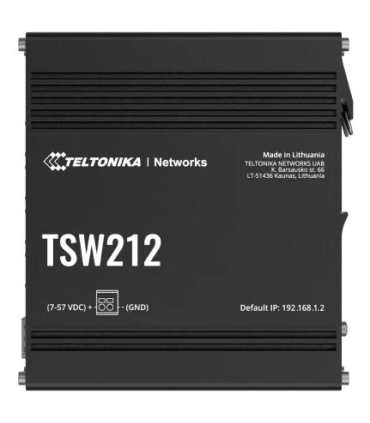

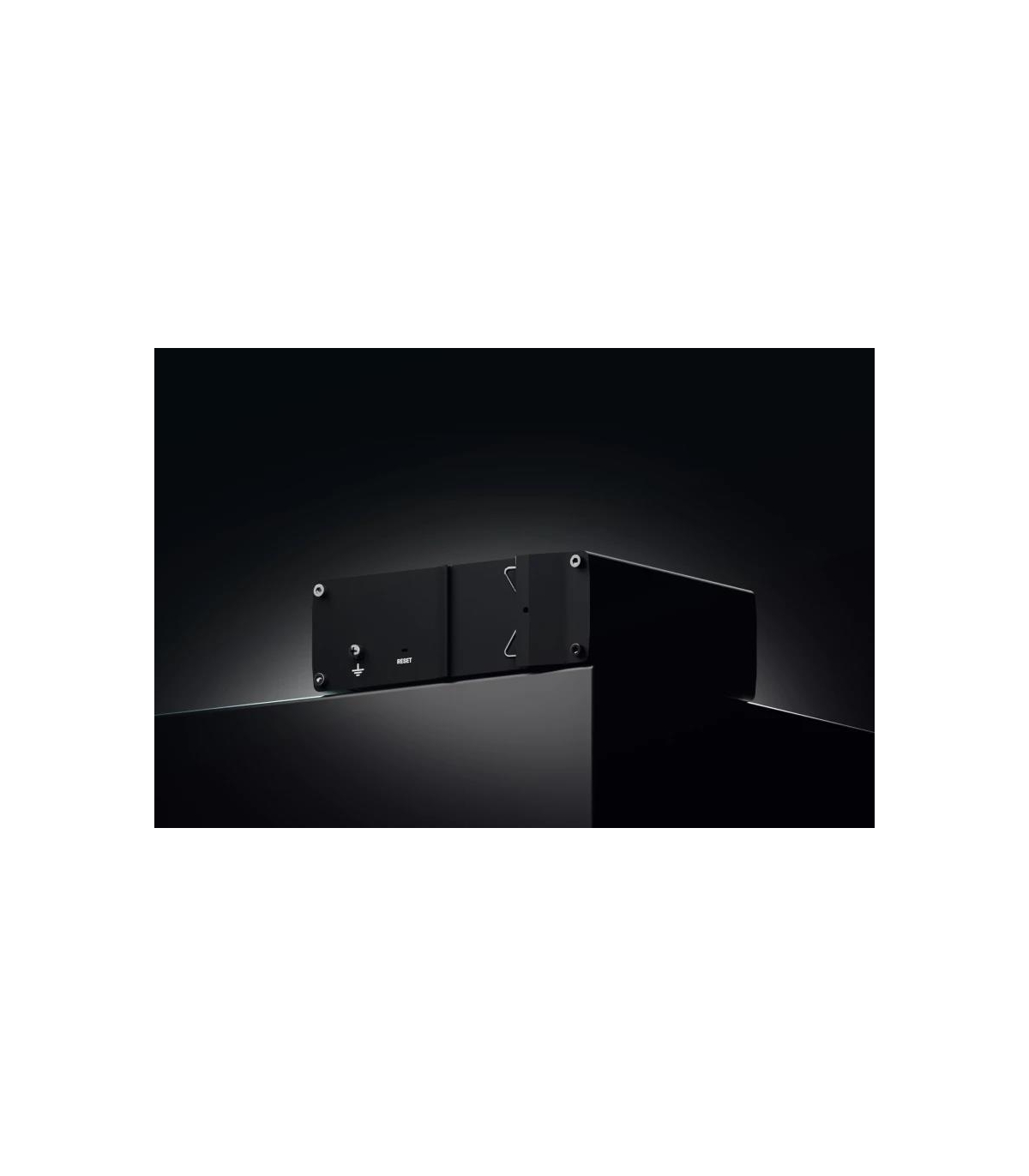

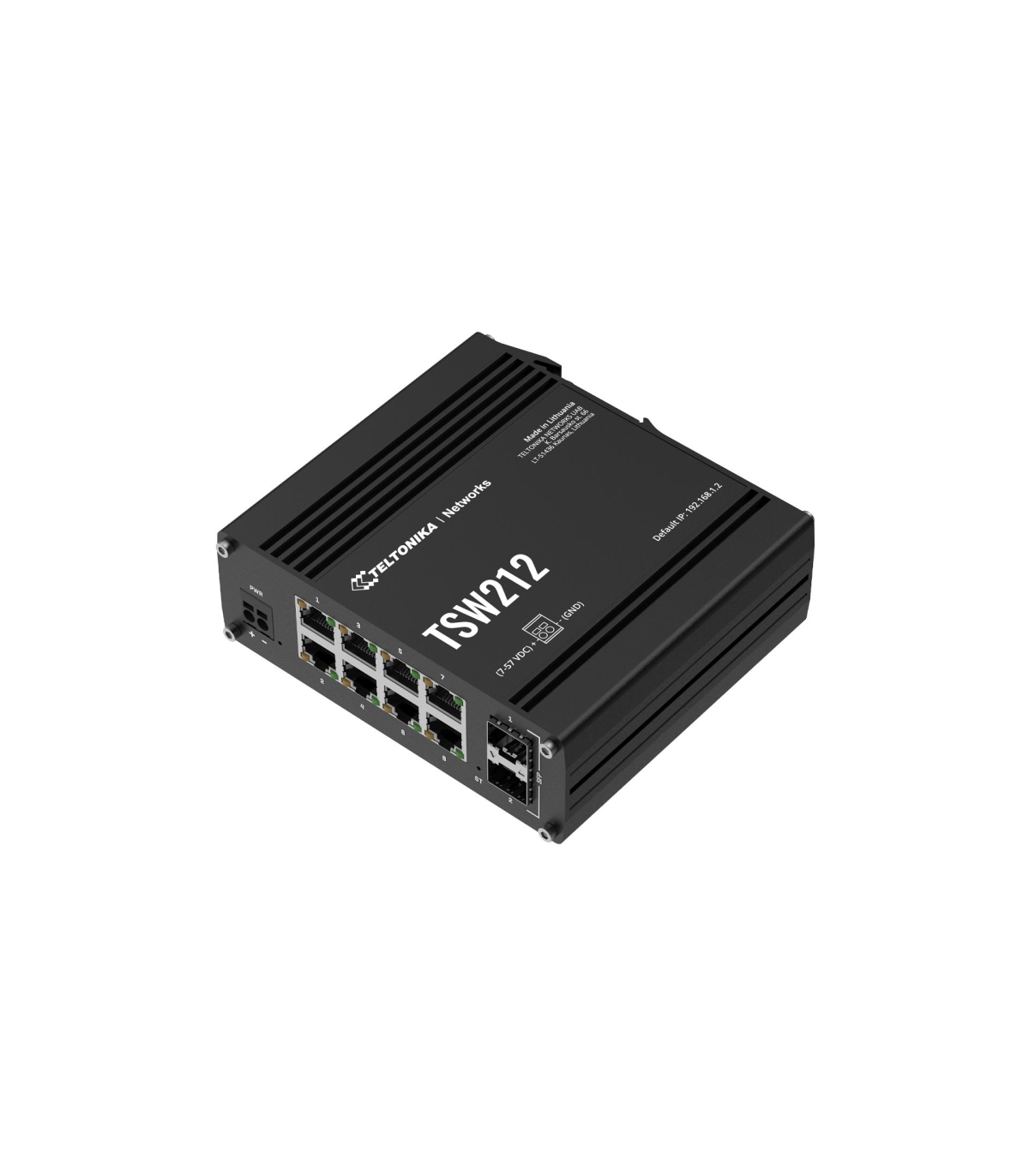

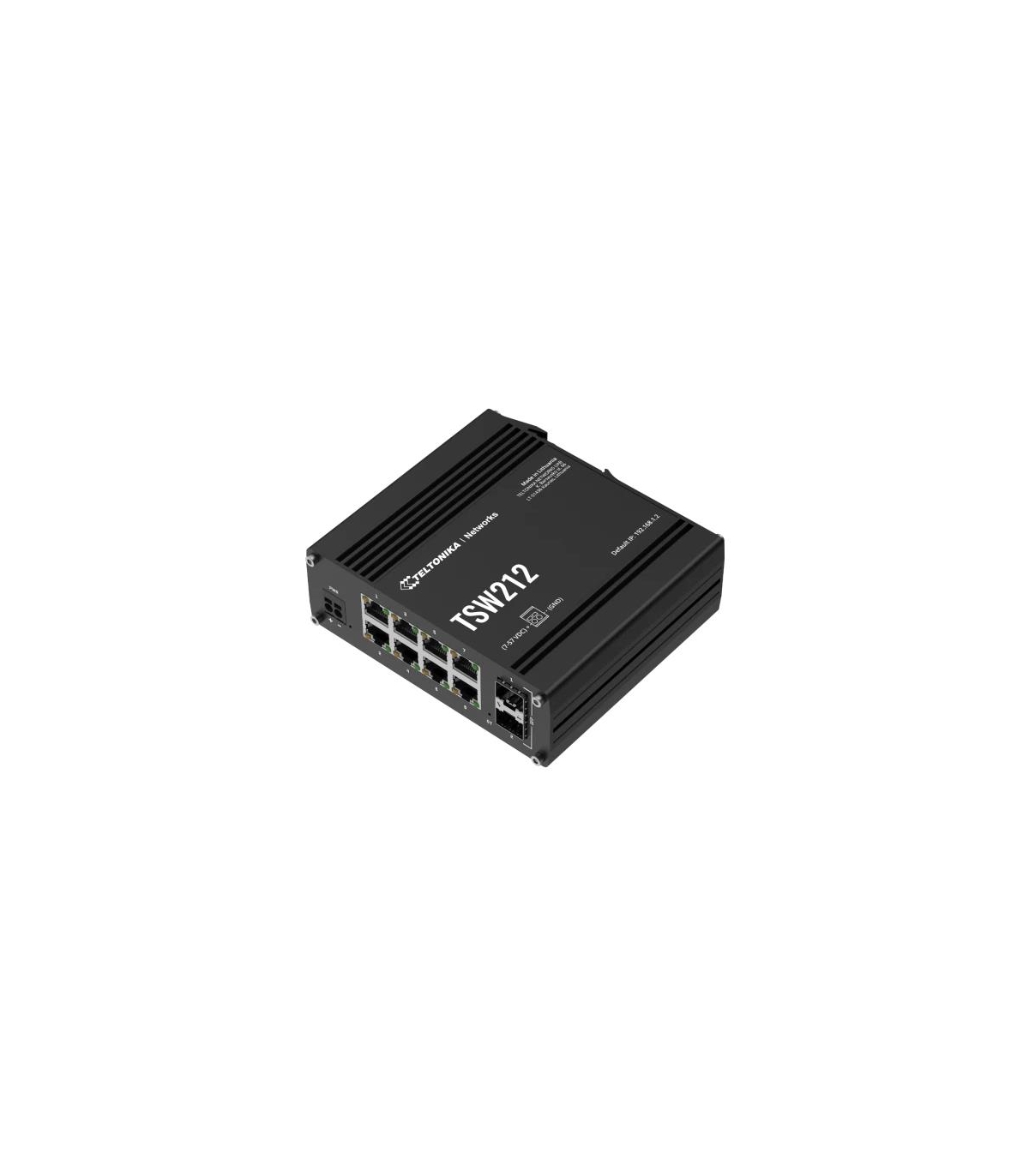

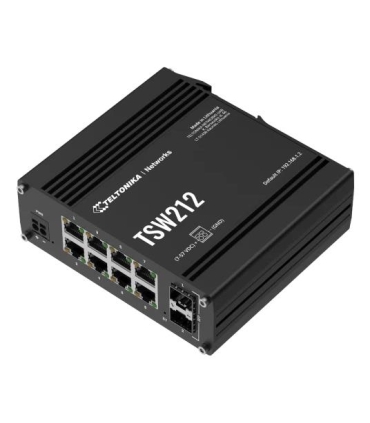

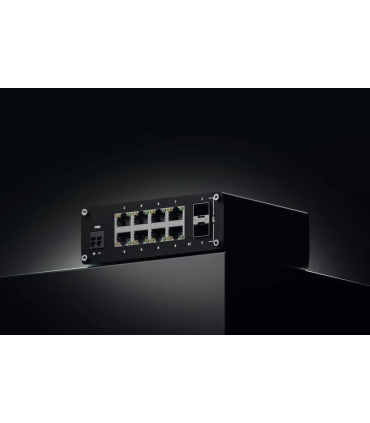

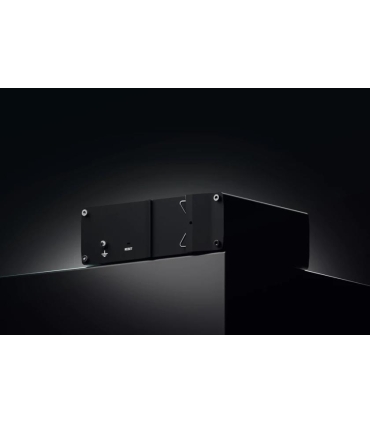

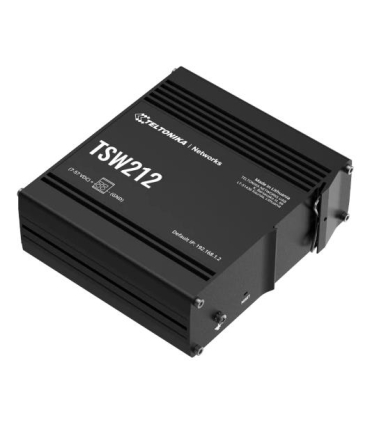

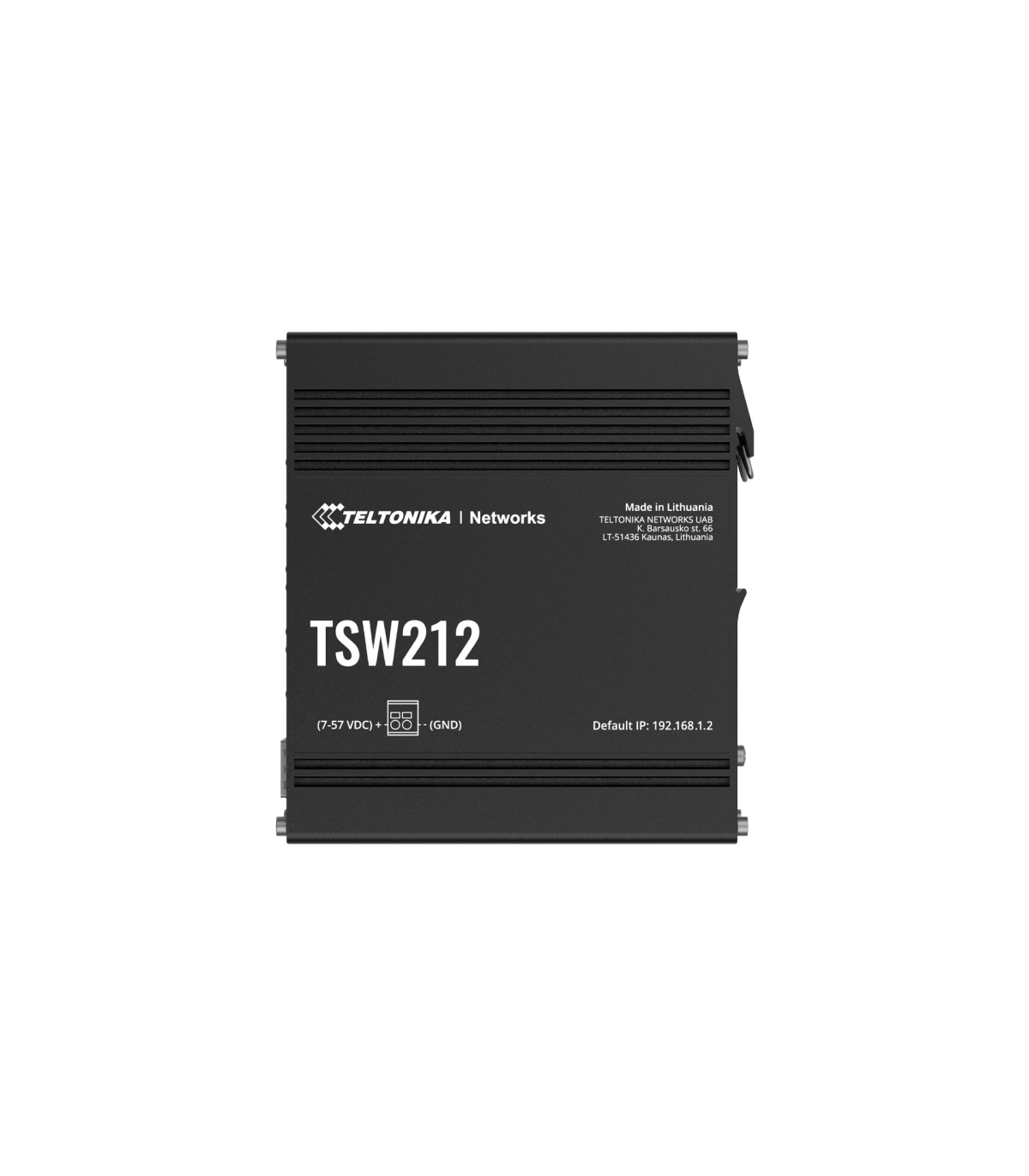

TELTONIKA Switch TSW212000000 TSW212

Specification

Power supply included

-

Other

Color

Black

Other features

Model

TSW212

Operating relative humidity (H-H)

10 - 90 %

Power consumption (max)

6 W

LED indicators

LAN/Power

Model name

TSW212000000

Power Source

DC

Switching capacity

20 Gbit/s

Networking standards

IEEE 802.1p/IEEE 802.1Q/IEEE 802.3az

Security algorithms

SNMPv2/SNMPv3

Switch type

Managed

Memory type

DDR3-SDRAM

Flash memory

16 MB

Power over Ethernet (PoE)

No

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Jumbo frames support

Yes

MAC address table

8000 entries

10G support

No

Auto MDI/MDI-X

Yes

Port mirroring

Yes

Switch layer

L2

VLAN support

Yes

Quality of Service (QoS) support

Yes

SFP module slots quantity

2

International Protection (IP) code

IP30

Jumbo frames

10000

IP routing

Yes

Depth

122.2 mm

Height

44.2 mm

Width

132 mm

Internal memory

128 MB

Weight

615 g

Operating temperature (T-T)

-40 - 75 °C

Ethernet LAN data rates

10,100,1000 Mbit/s

Unit Calculated Volume

0.001455 cubm

Unit Calculated Weight

0.675 kg

Summary

Teltonika TSW212. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networki

DHCP features

DHCP client/DHCP server

Queue scheduling algorithms

Weighted Round Robin (WRR)/WFQ/WFQ+SP
