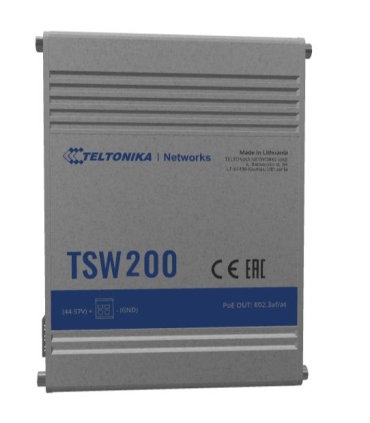

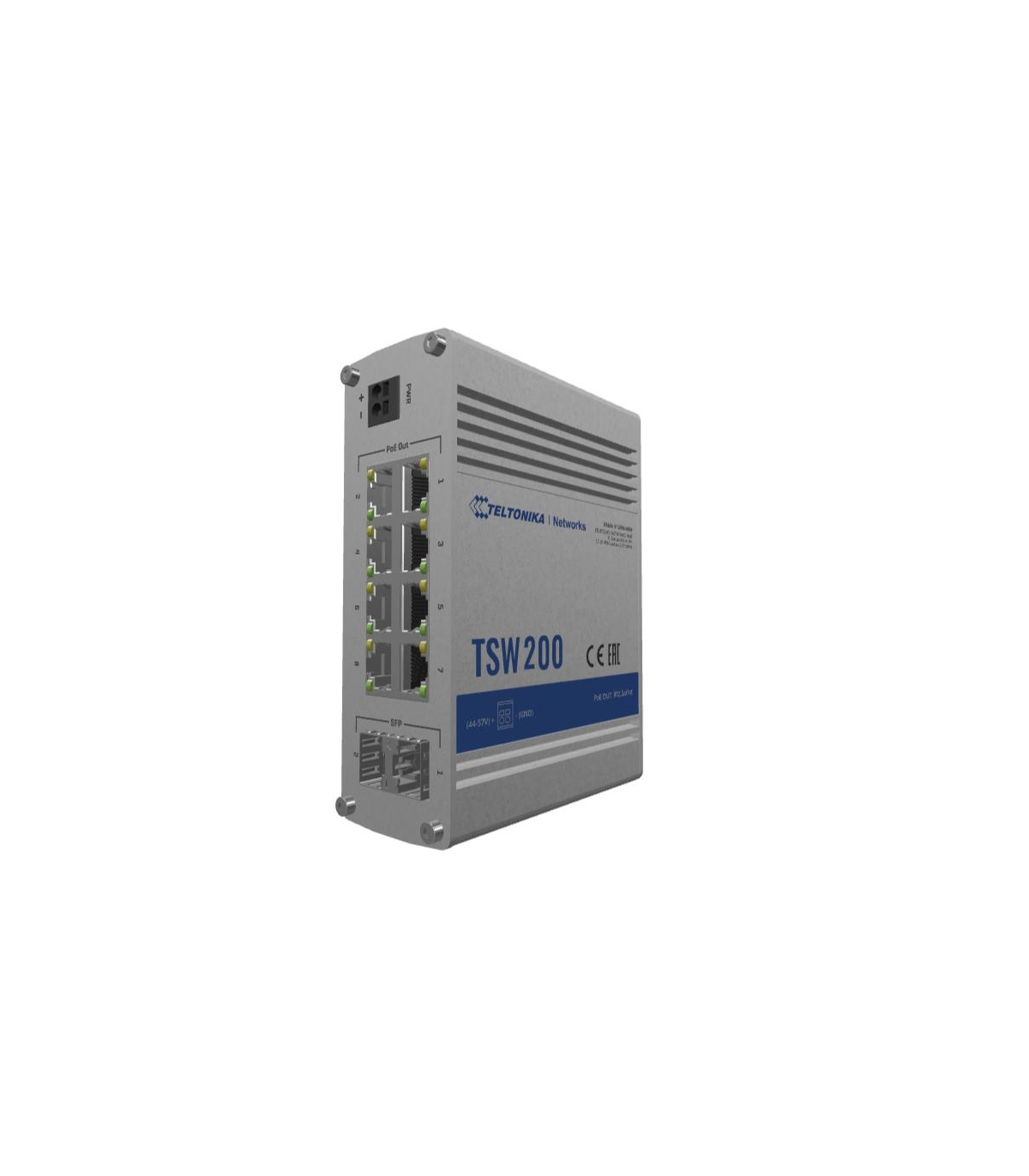

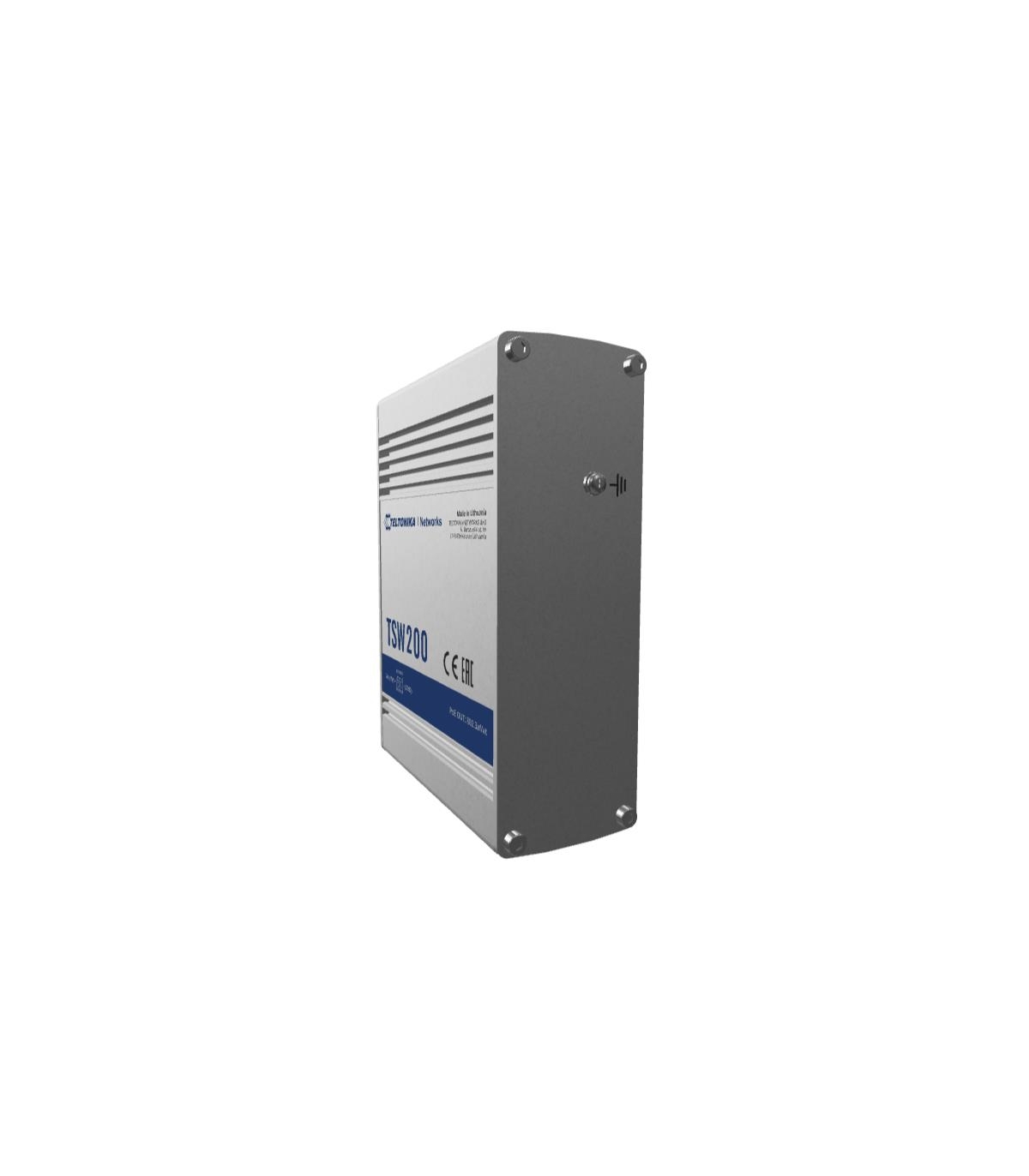

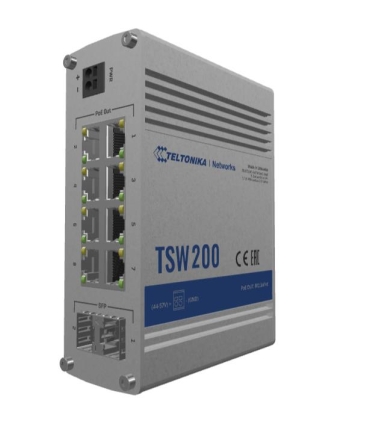

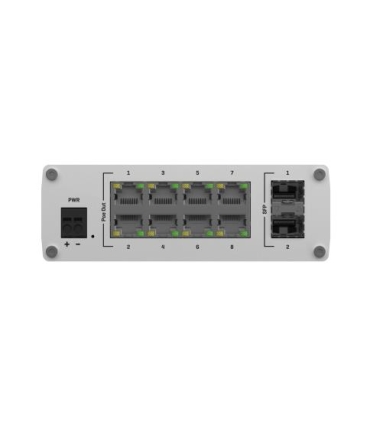

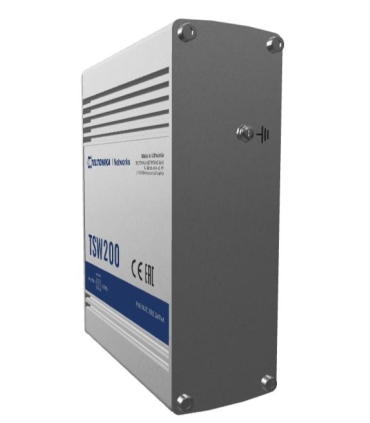

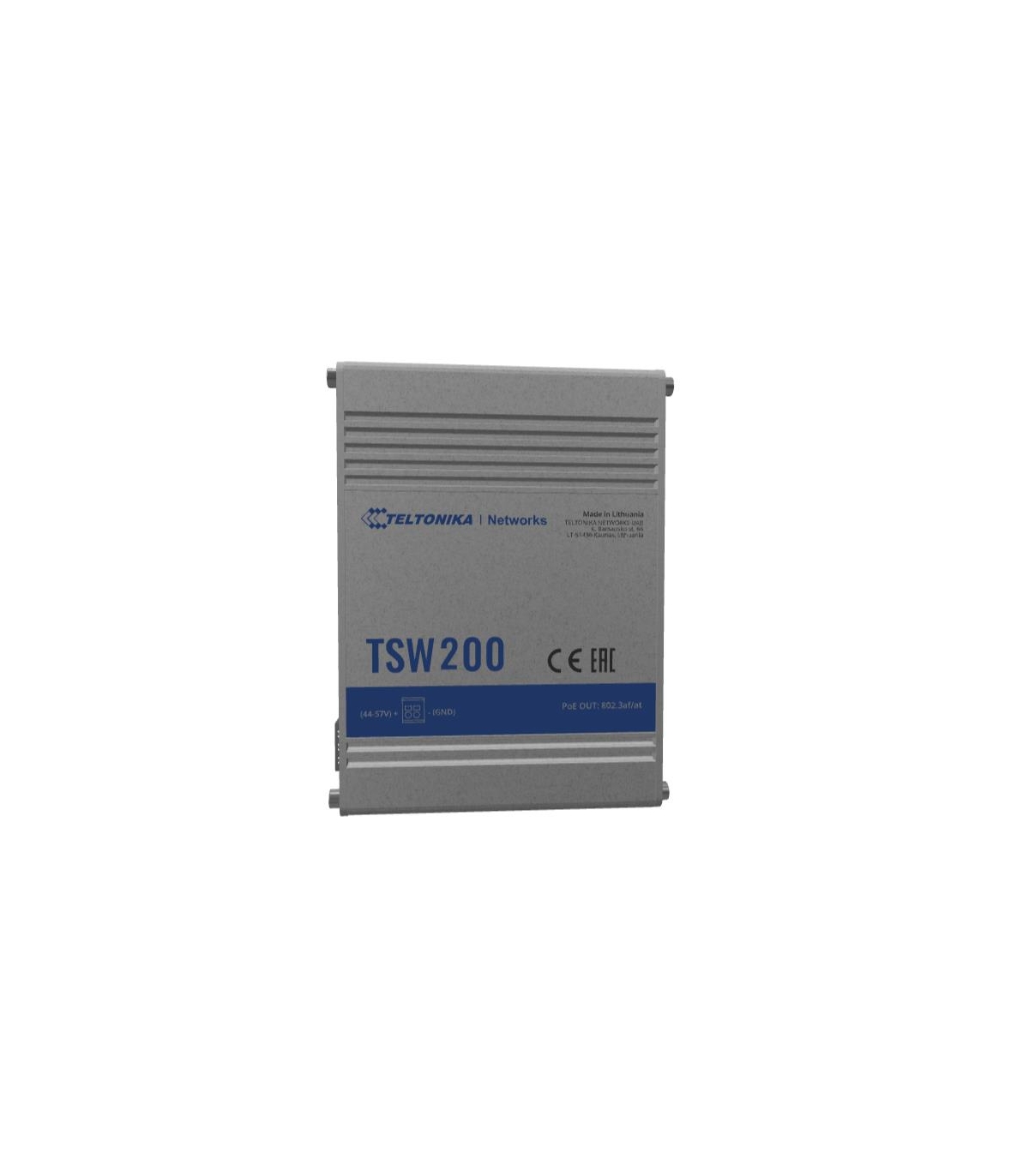

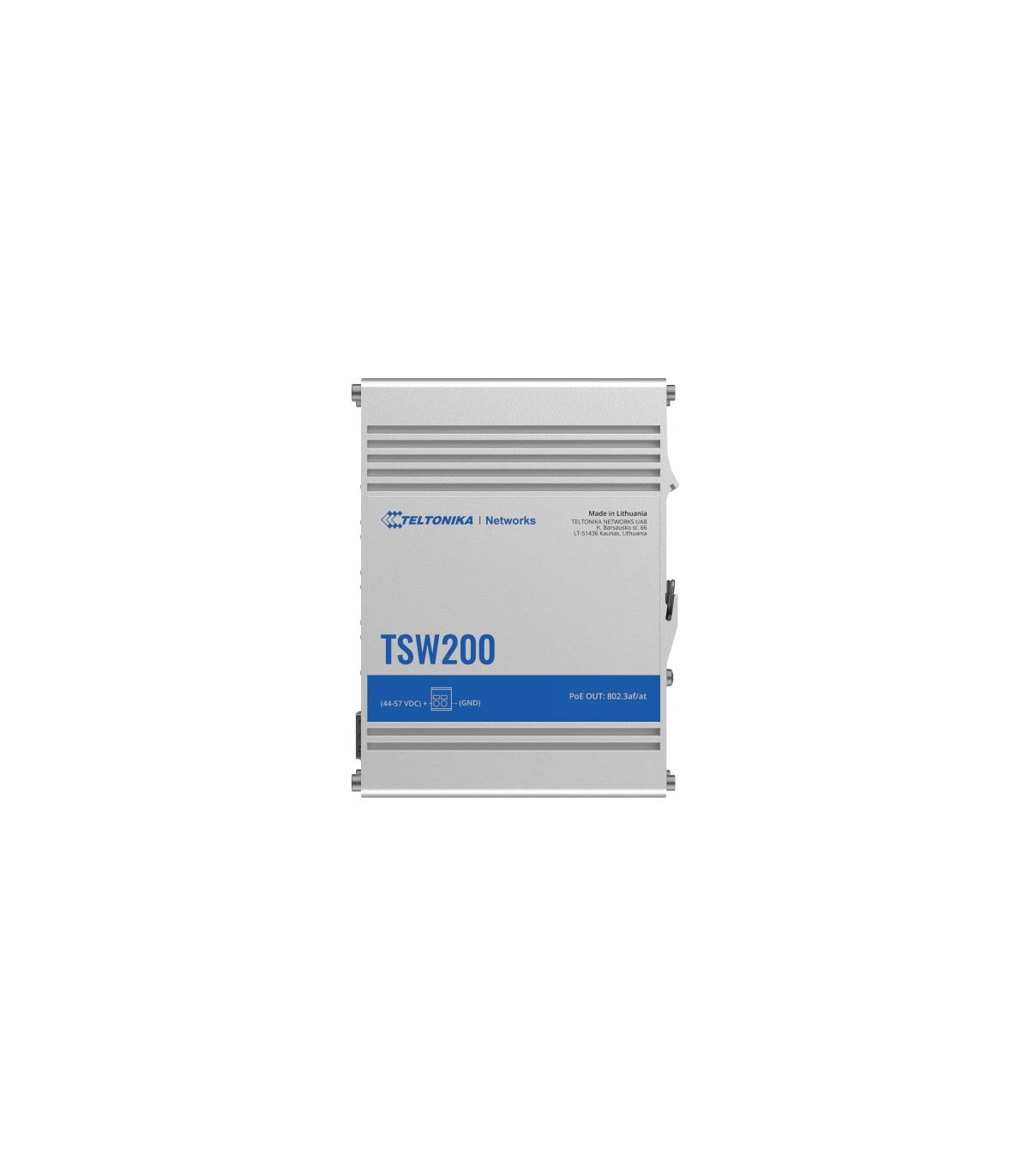

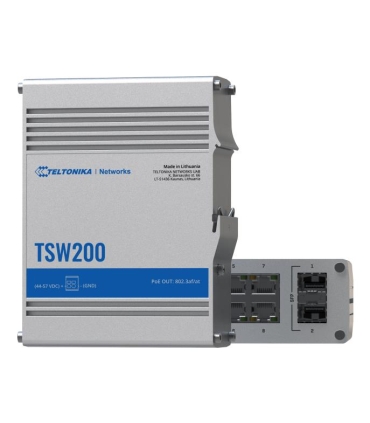

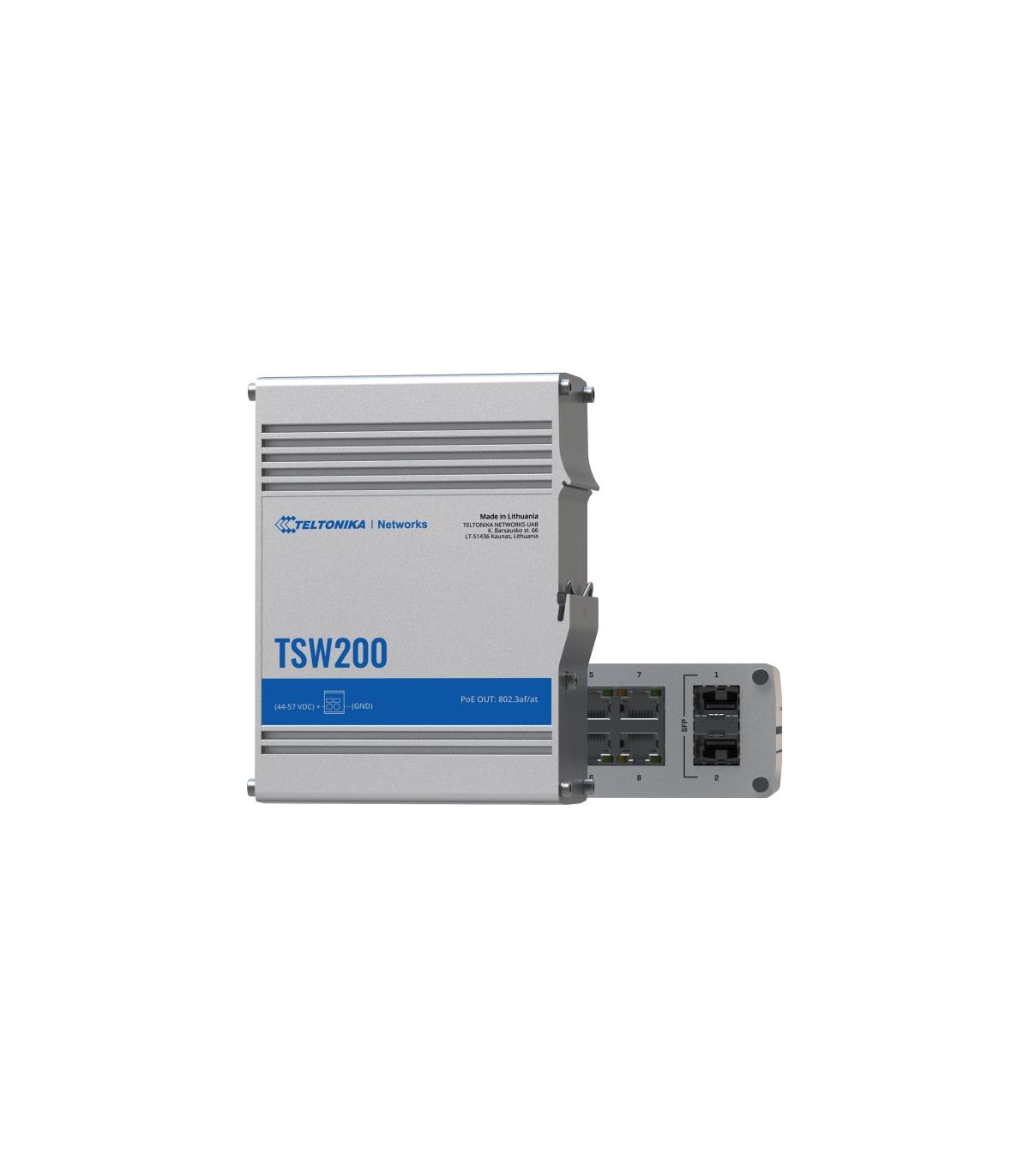

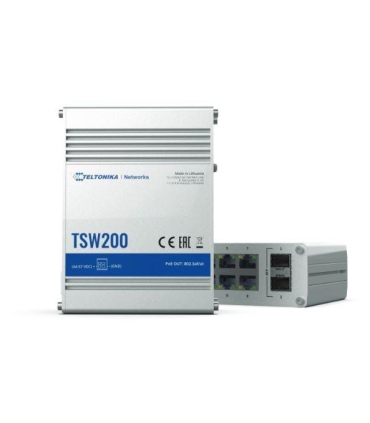

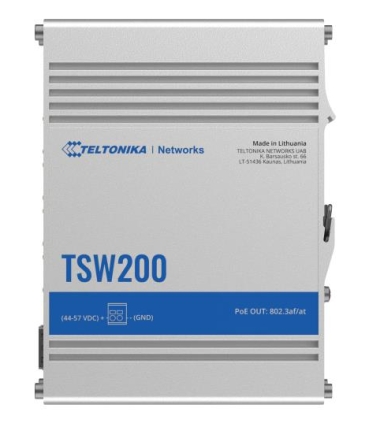

TELTONIKA Switch TSW2000000B0 PoE ports 8 240 Watts TSW200

Specification

Power supply included

-

Other

Housing material

Aluminium

Other features

Model

TSW200

Power consumption (max)

106 W

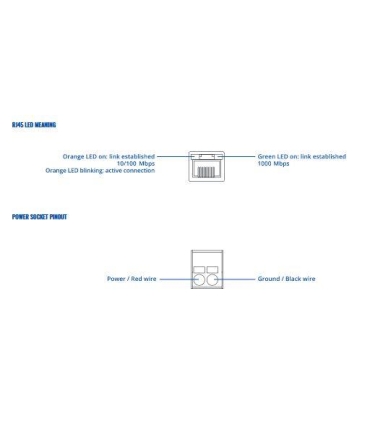

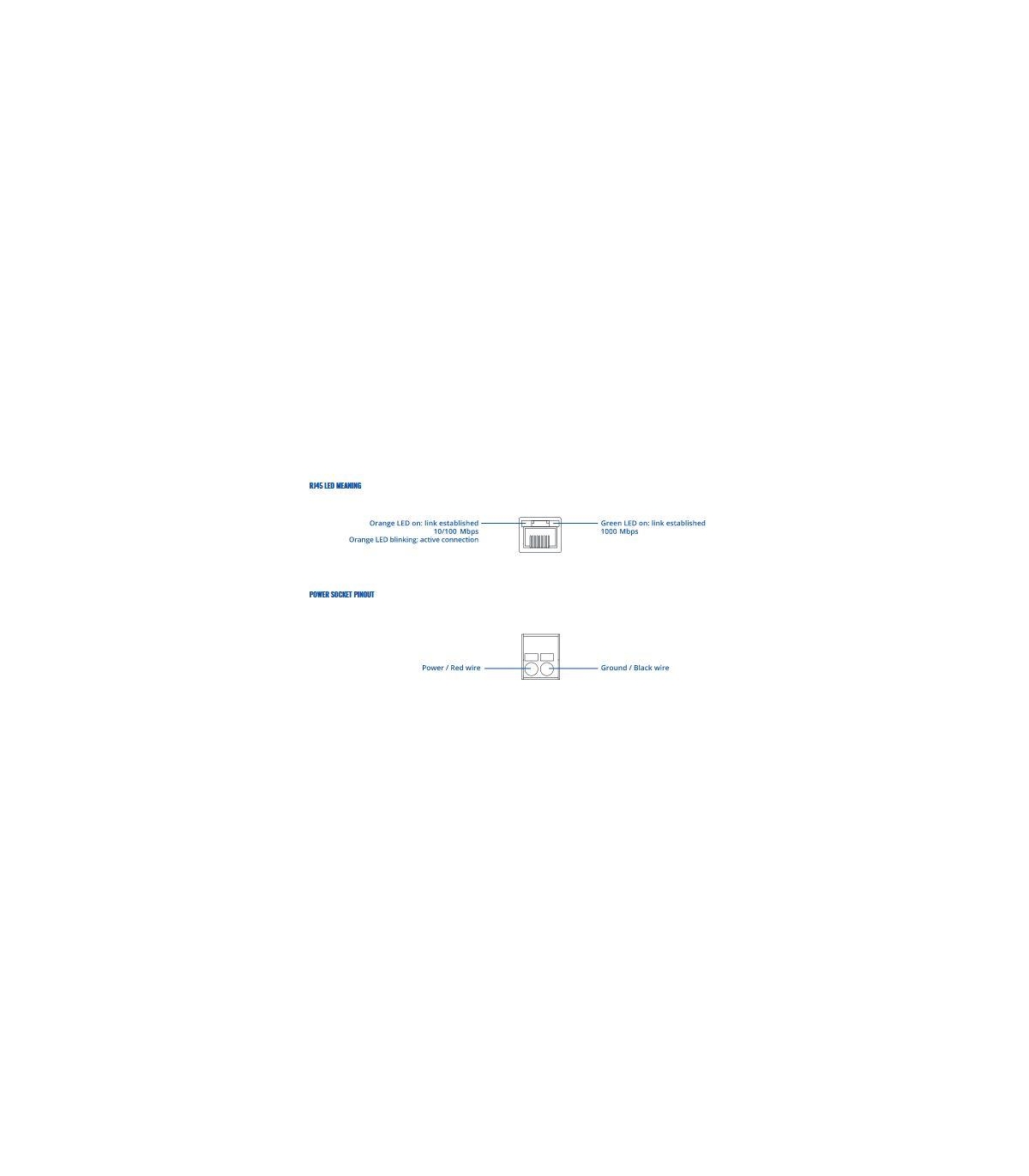

LED indicators

LAN/PoE/Status

Model name

TSW2000000B0

Power Source

DC

Networking standards

IEEE 802.3/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u

Rack mounting

Yes

Power over Ethernet (PoE)

Yes

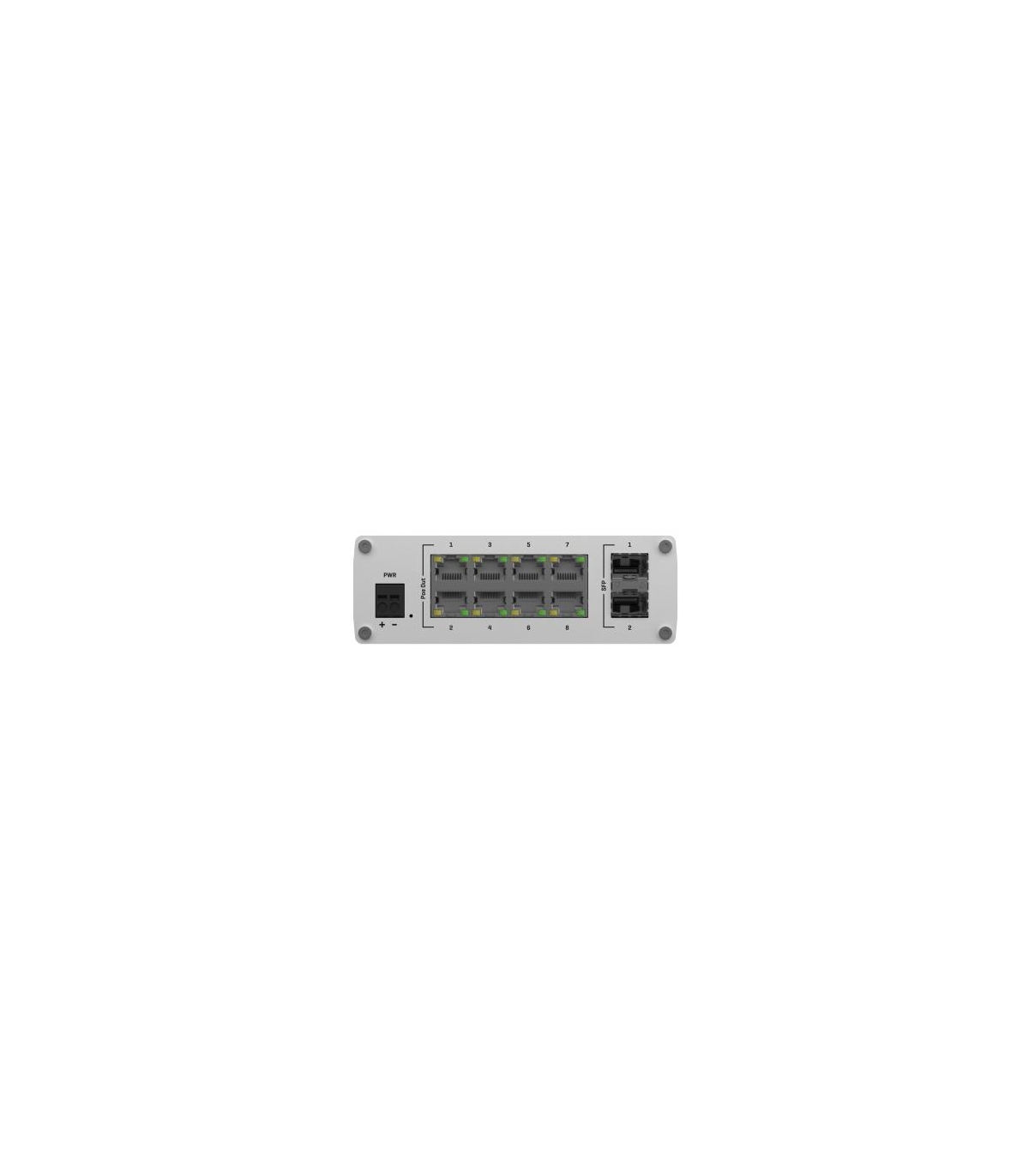

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Jumbo frames support

Yes

MAC address table

2000 entries

Packet buffer memory

0.128 MB

Auto MDI/MDI-X

Yes

Power over Ethernet (PoE) ports quantity

8

SFP module slots quantity

2

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

240 W

International Protection (IP) code

IP30

Jumbo frames

9216

Depth

44.2 mm

Height

132 mm

Width

95.1 mm

Power consumption (typical)

1.8 W

Weight

456 g

Operating temperature (T-T)

-40 - 75 °C

Unit Calculated Volume

0.001737 cubm

Summary

Teltonika TSW200. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 2000 entries. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 80

Product colour

Aluminium

DC input voltage

7 - 57 V

Power over Ethernet (PoE) voltage

57 V

DIN rail mounting

Yes
