1436740
Specification
- Power supply included
- +
Other
- Housing material
- Aluminium
Other features
- Model
- TSW110
- Operating relative humidity (H-H)
- 10 - 90 %
- Model name
- TSW110000000
- Switching capacity
- 10 Gbit/s
- Networking standards
- IEEE 802.3/IEEE 802.3ab/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x
- Power over Ethernet (PoE)
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Jumbo frames support
- Yes
- MAC address table
- 2000 entries
- Packet buffer memory
- 0.128 MB
- 10G support
- No
- Auto MDI/MDI-X
- Yes
- Switch layer
- L2
- International Protection (IP) code
- IP30
- Jumbo frames
- 9216
- Depth
- 85 mm
- Height
- 30 mm
- Width
- 100 mm
- Power consumption (typical)
- 1.8 W
- Weight
- 227 g
- Operating temperature (T-T)
- -40 - 75 °C
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Unit Calculated Volume
- 0.001837 cubm
- Unit Calculated Weight
- 0.393 kg
- Summary

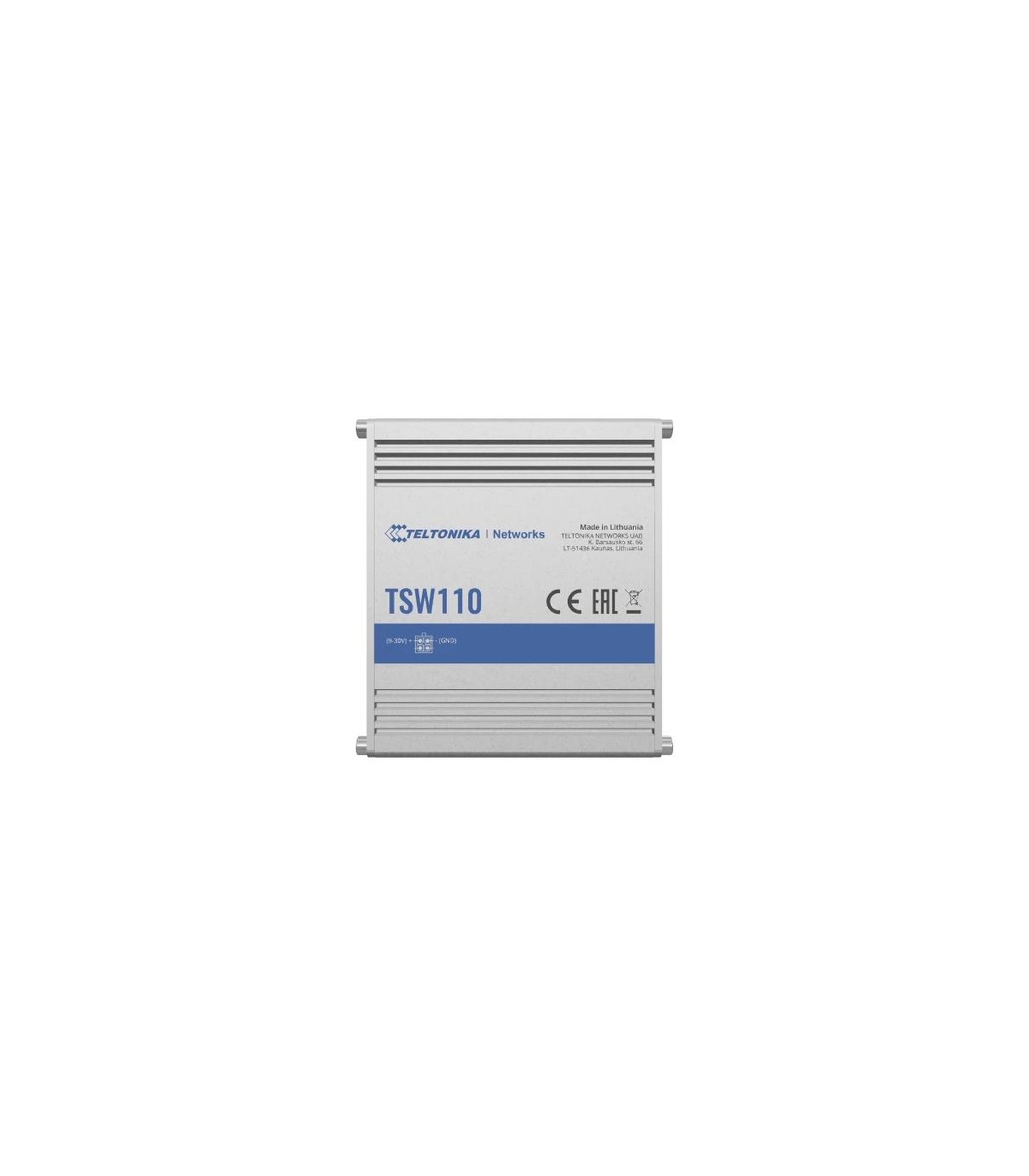

- Teltonika TSW110. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IE
- Product colour
- Blue/Grey
- DC input voltage
- 30 V
- DIN rail mounting
- Yes
Specific References
- EAN
- 4779027312958
