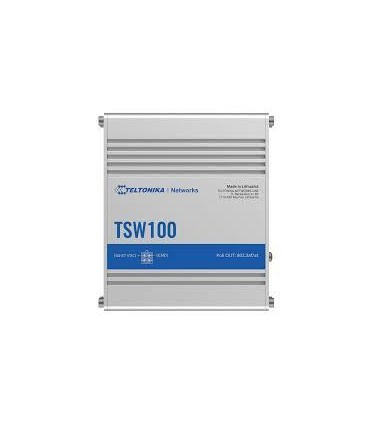

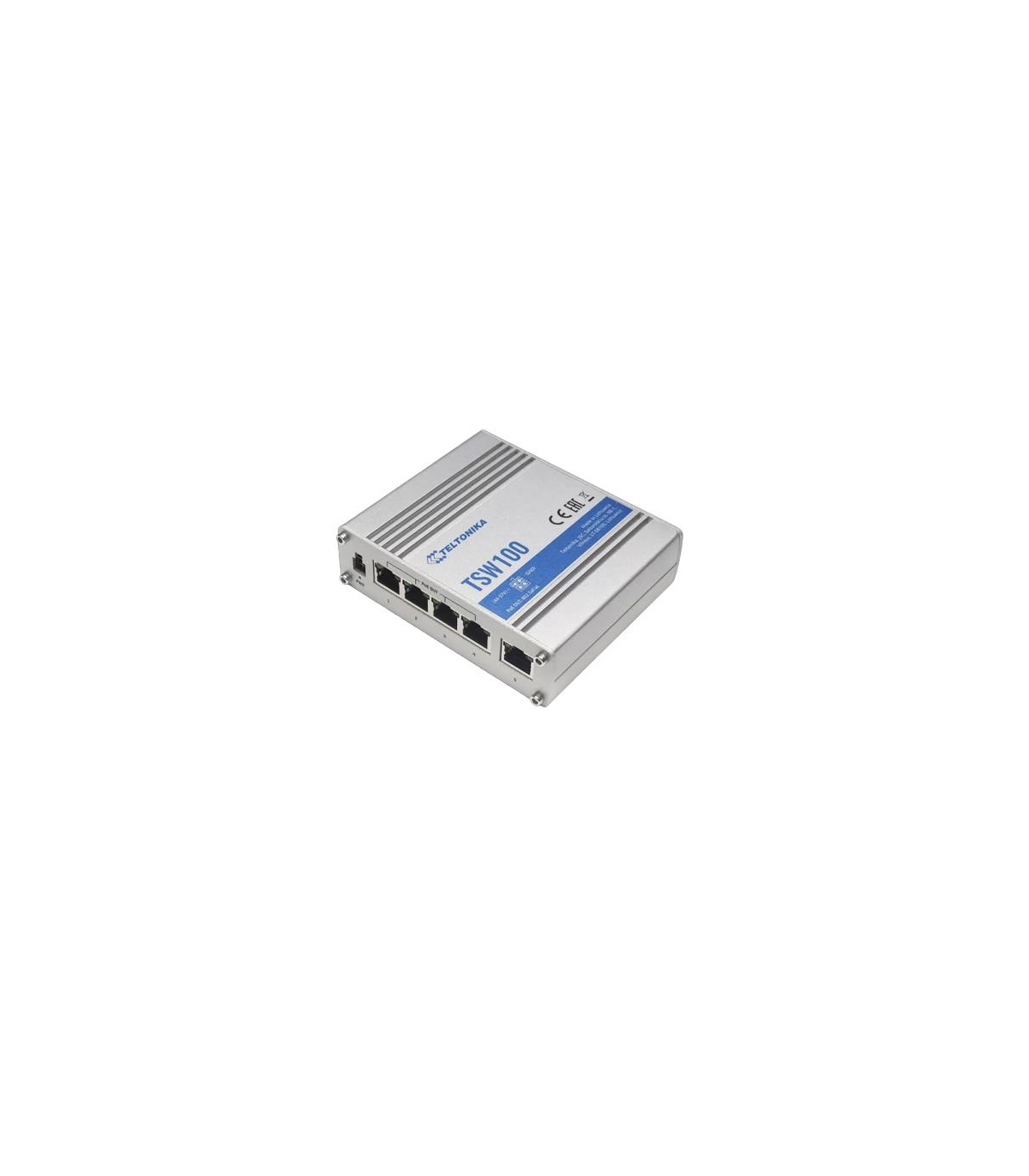

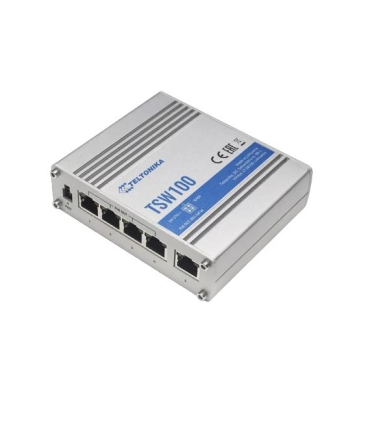

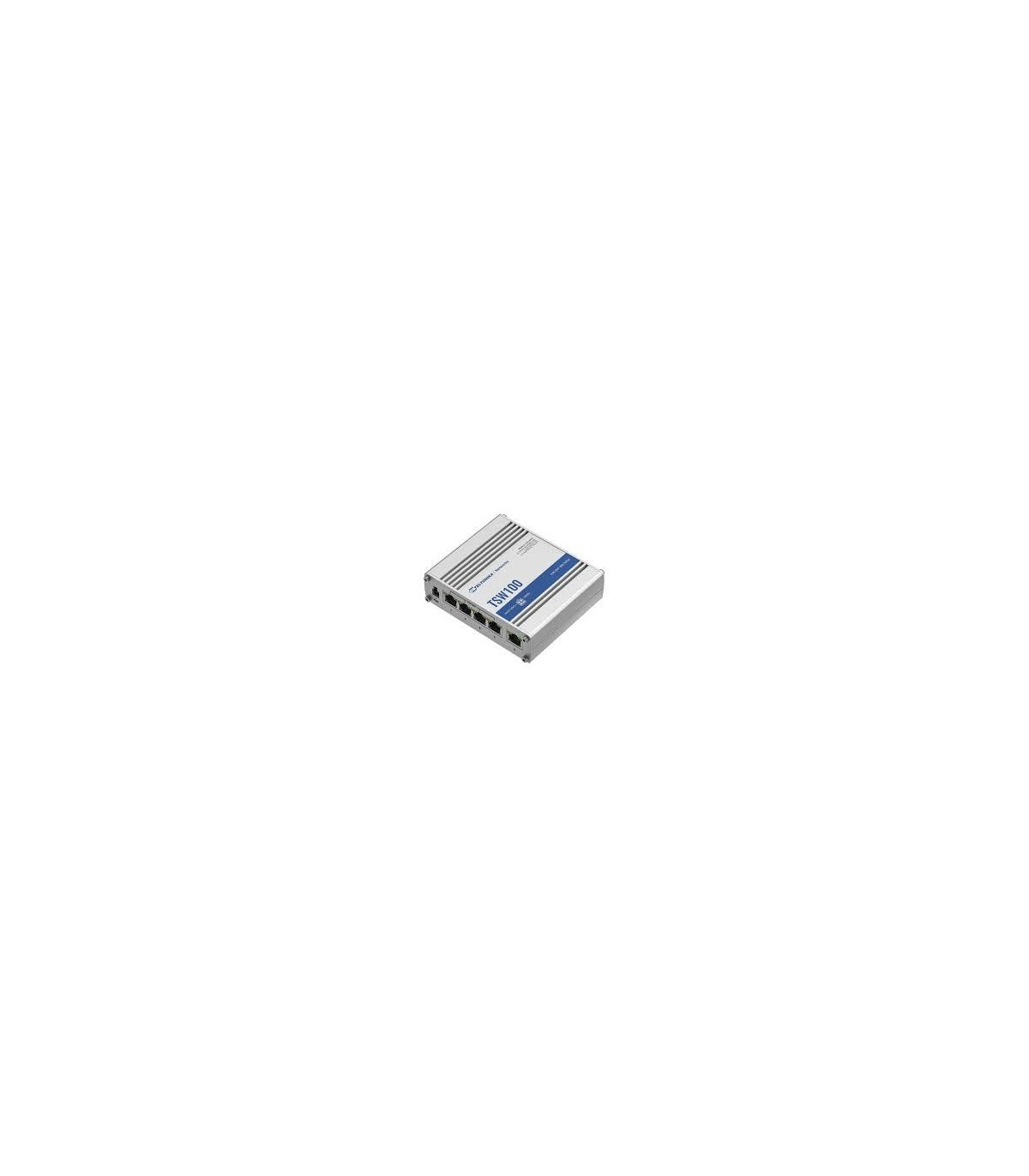

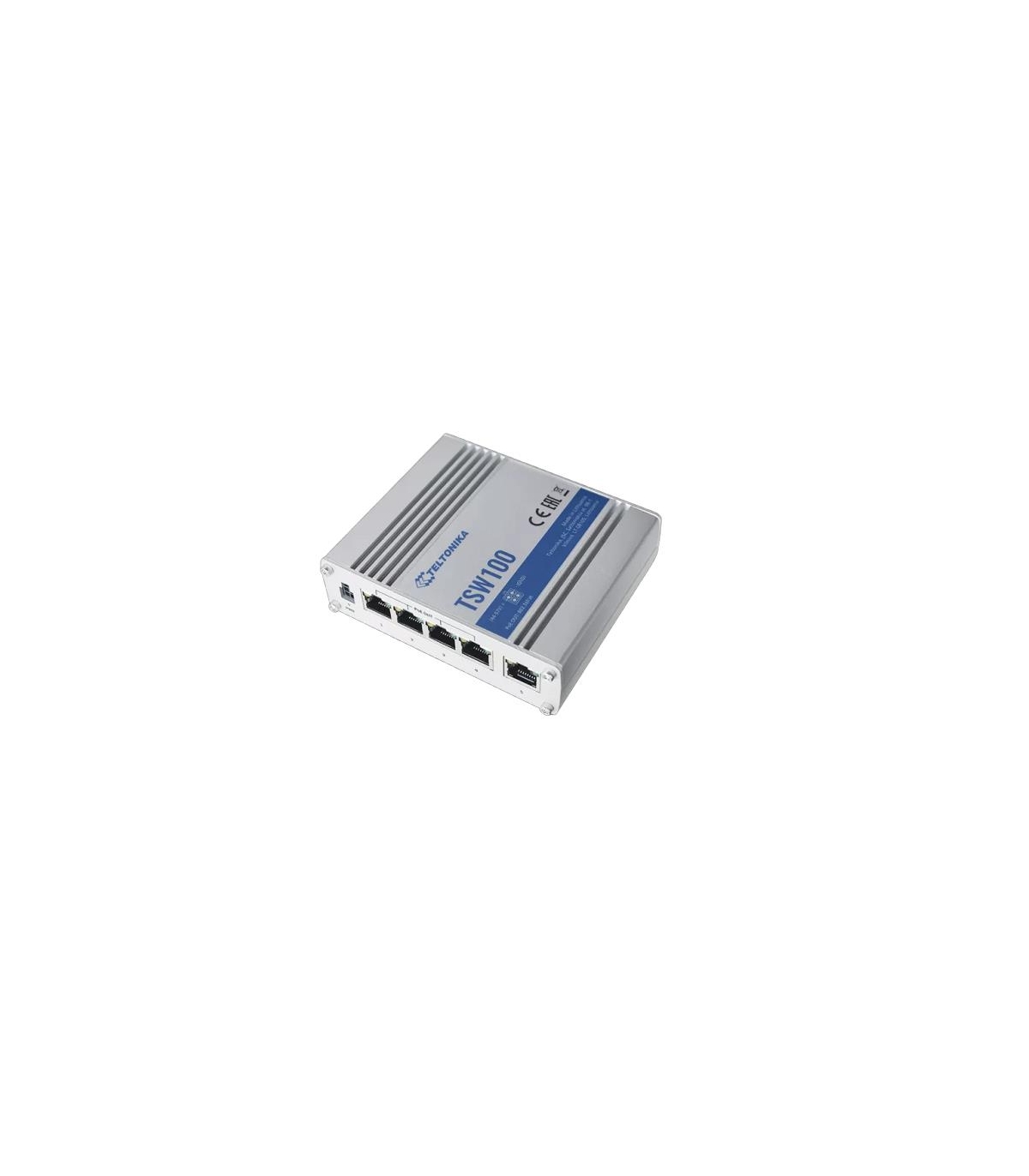

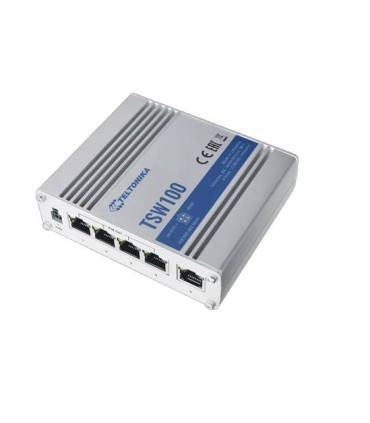

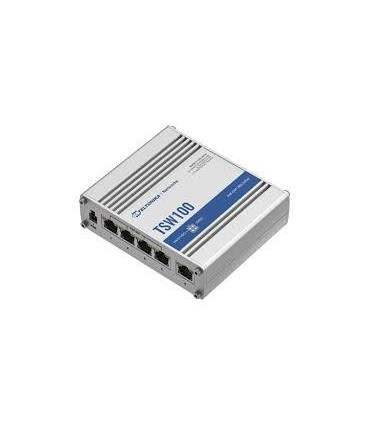

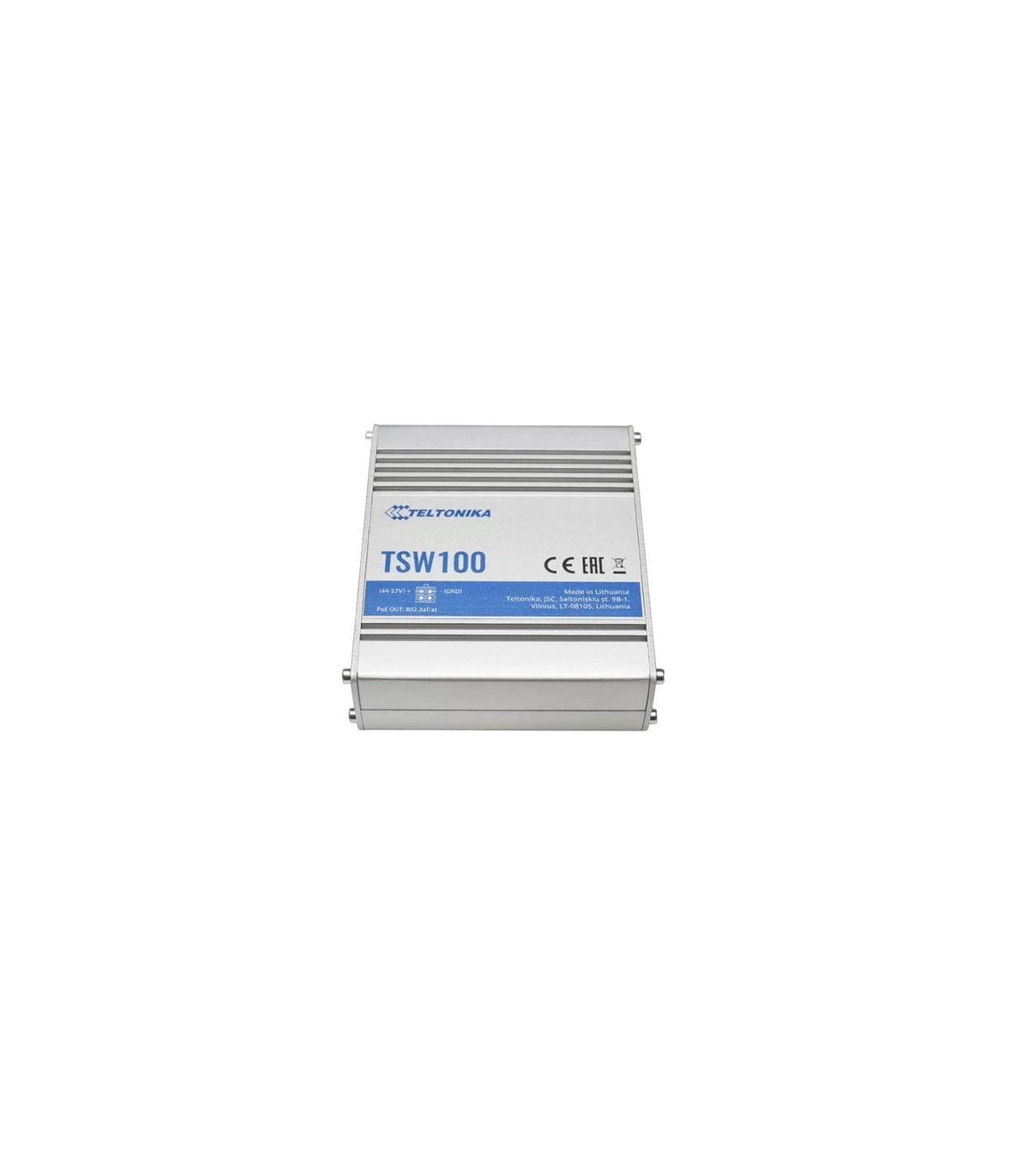

TELTONIKA Switch TSW100000000 PoE+ ports 4 120 Watts TSW100

Other

Housing material

Aluminium

Other features

Certification

CE/RED, EAC, RoHS, WEEEDraft ETSI EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0EN 61000-4-2:2009EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2EN 61000-4-3:2006 +

Model

TSW100

Operating relative humidity (H-H)

10 - 90 %

Power consumption (max)

129 W

LED indicators

Power/Status

Model name

TSW100000000

Networking standards

IEEE 802.3af/IEEE 802.3at/IEEE 802.3az

Power over Ethernet (PoE)

Yes

Basic switching RJ-45 Ethernet ports quantity

5

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

MAC address table

2000 entries

Packet buffer memory

0.128 MB

Auto MDI/MDI-X

Yes

Power over Ethernet (PoE) ports quantity

4

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

120 W

Jumbo frames

9216

Depth

95 mm

Height

32 mm

Width

115 mm

Operating temperature (T-T)

-40 - 75 °C

Unit Calculated Volume

0.001726 cubm

Summary

Teltonika TSW100. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3az. DC input voltag

Product colour

Blue/Metallic

Harmonized System (HS) code

85176990

DC input voltage

7 - 58 V
