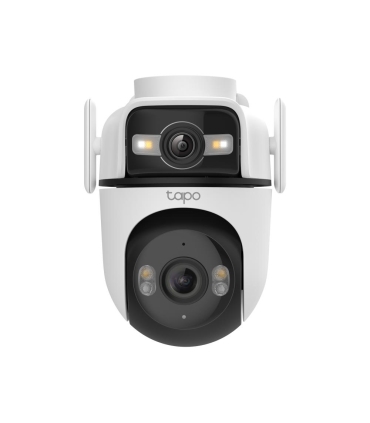

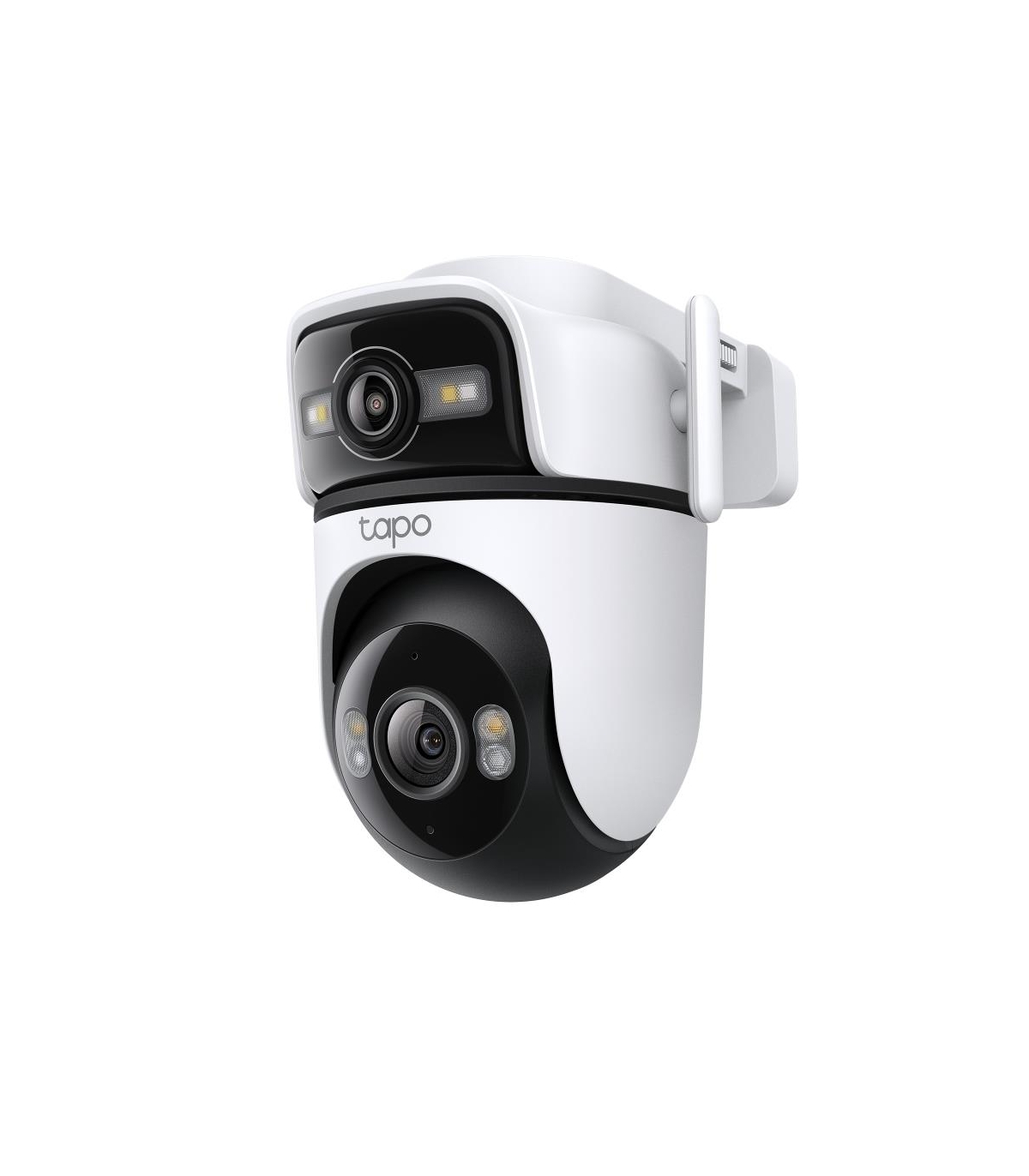

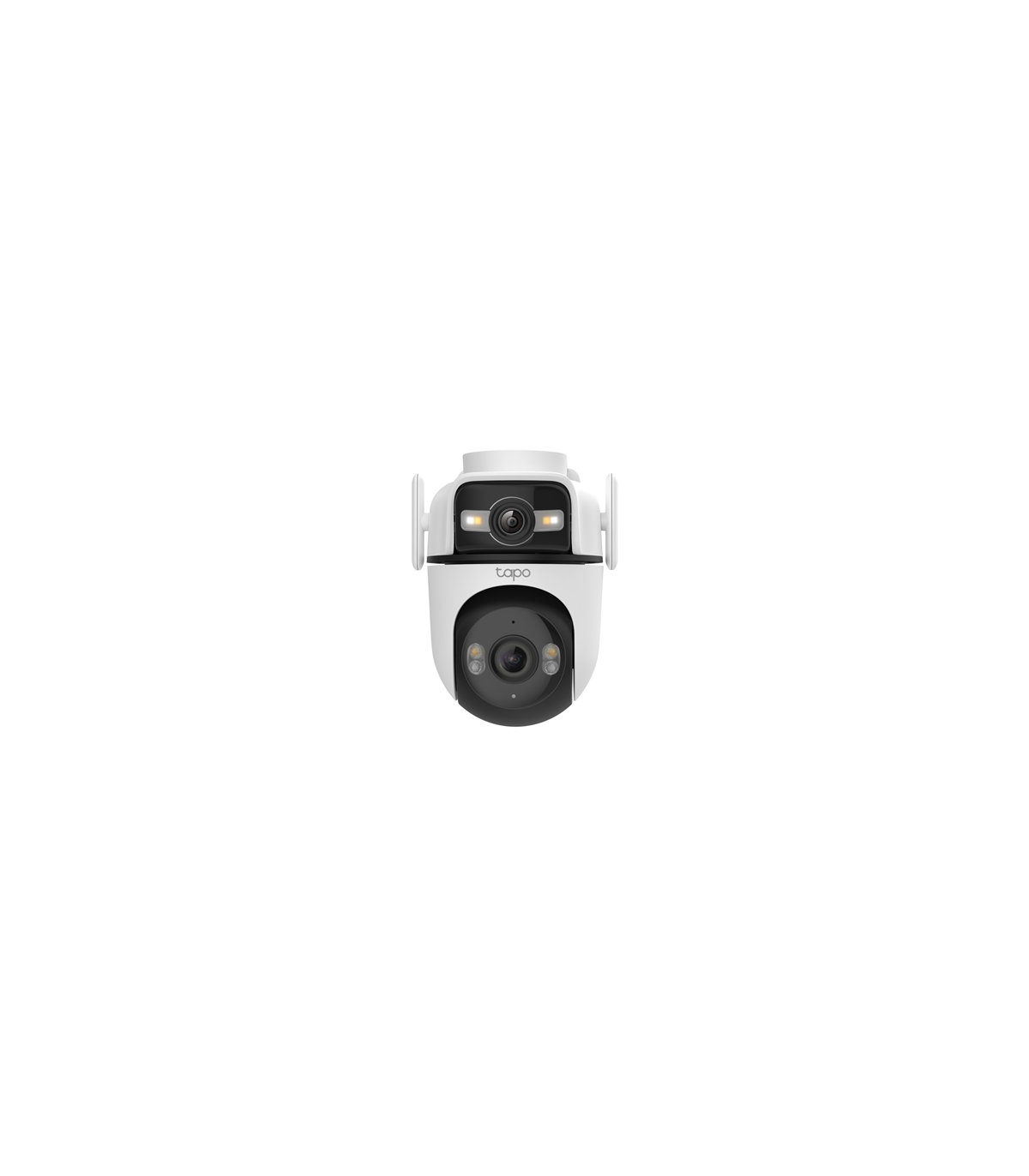

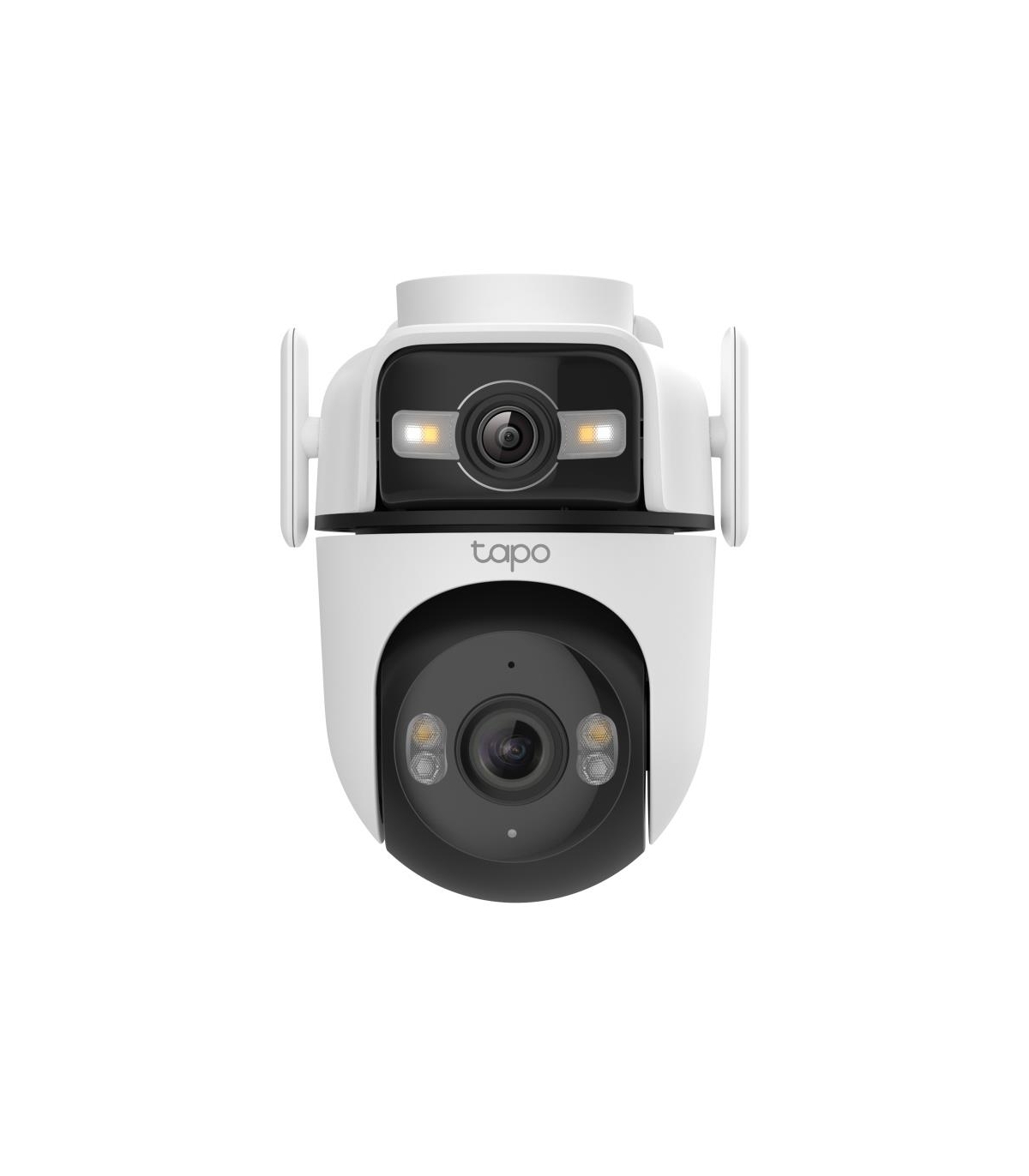

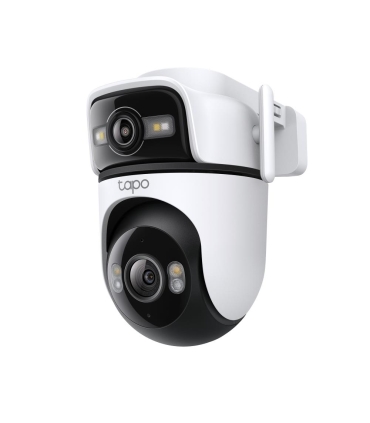

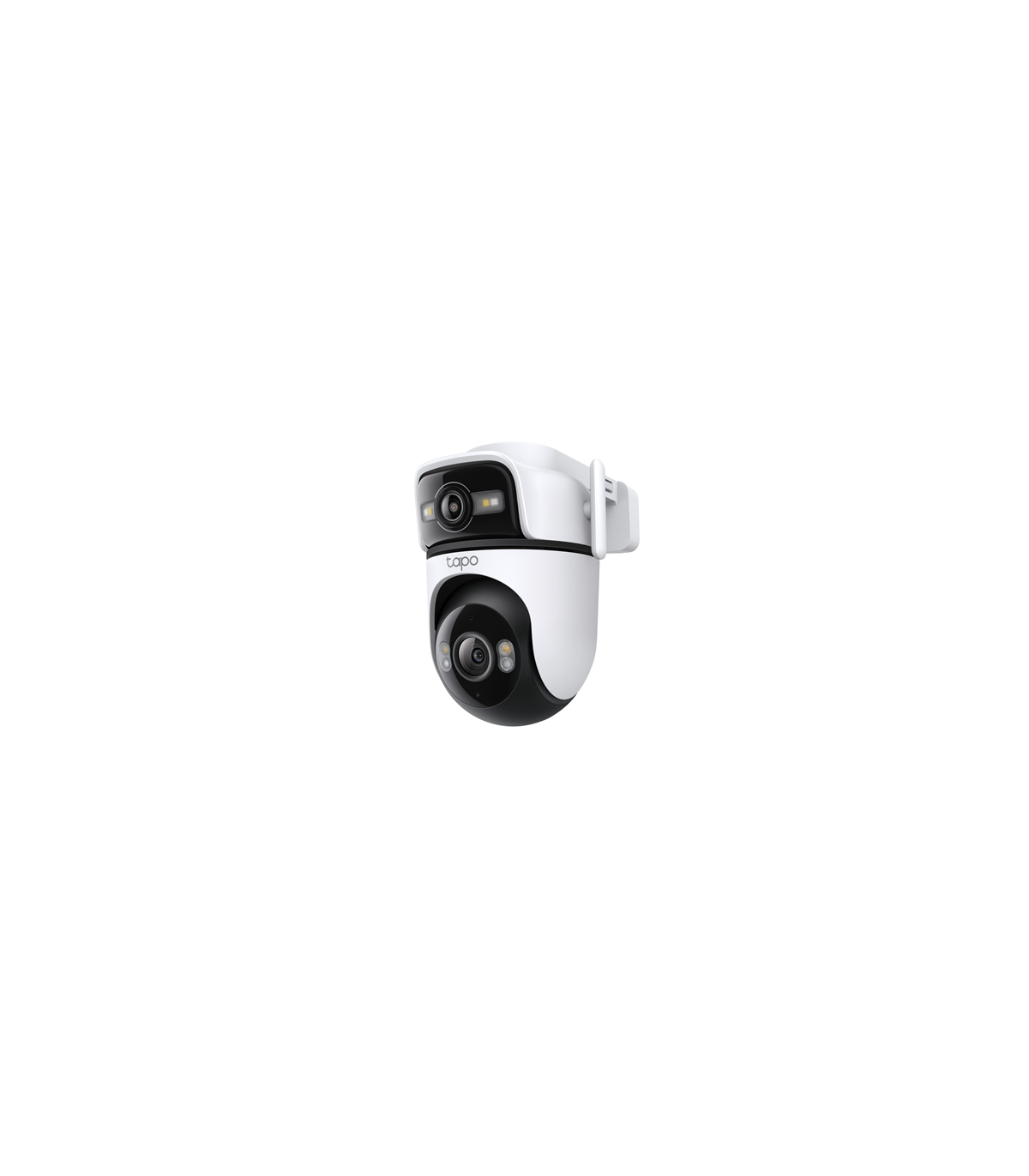

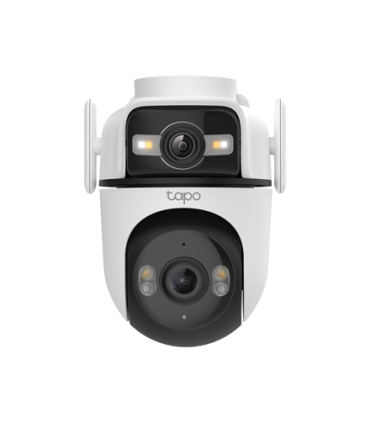

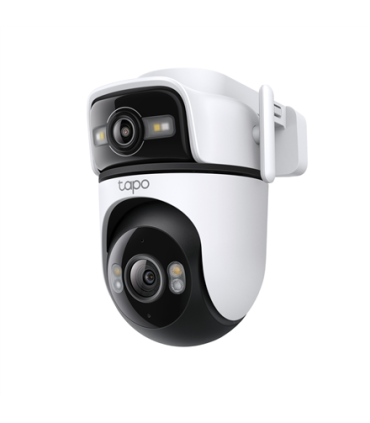

TP-LINK WRL CAMERA PAN/TILT/TAPO C545D

Specification

Noise suppression

+

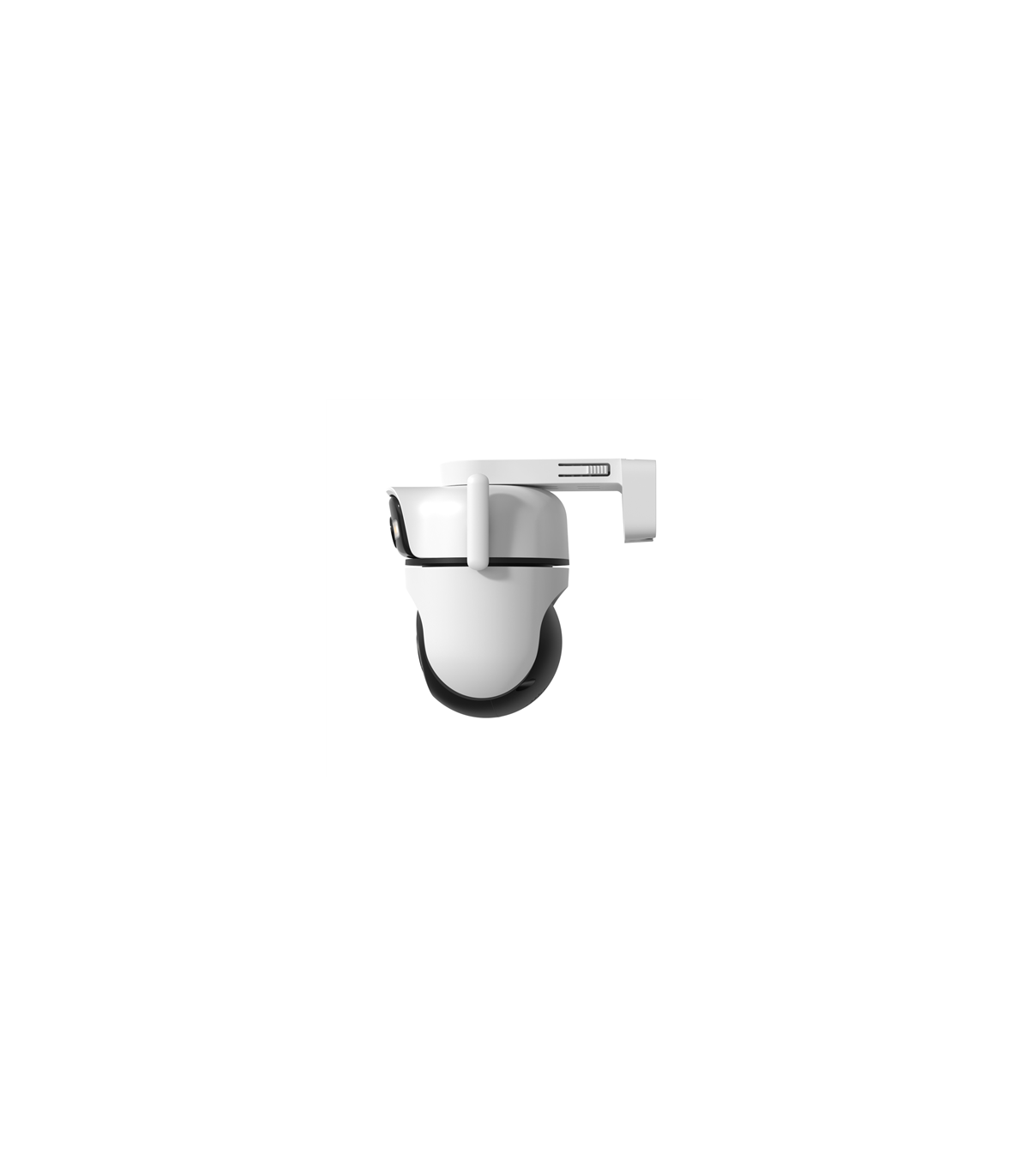

Mounting type

Ceiling/Wall/Pole

Night vision

+

Video compression formats

H.264

Interfaces

Card reader integrated

+

Memory card slot

MicroSD

Networking

Bluetooth

-

WiFi

+

LAN

1

+

Multimedia

Microphone

+

Built-in speaker(s)

+

Audio system

2-way

Other

Color

White

Sensor

Sensori tüüp

CMOS

Other features

Maximum resolution

2304 x 1296 pixels

Operating relative humidity (H-H)

10 - 90 %

Power consumption (max)

11.2 W

Type

IP security camera

Placement supported

Outdoor

Model name

Tapo C545D

Form factor

Spherical

Connectivity Technology

Wired & Wireless

Security algorithms

128-bit AES/SSL/TLS/WPA/WPA2-PSK/WPA3

Ethernet interface type

Fast Ethernet

Supported network protocols

TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP

Video motion detection

Yes

Wide Dynamic Range (WDR)

Yes

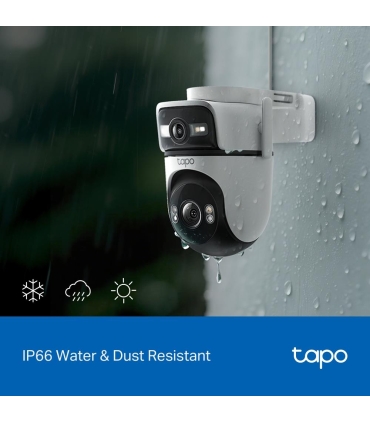

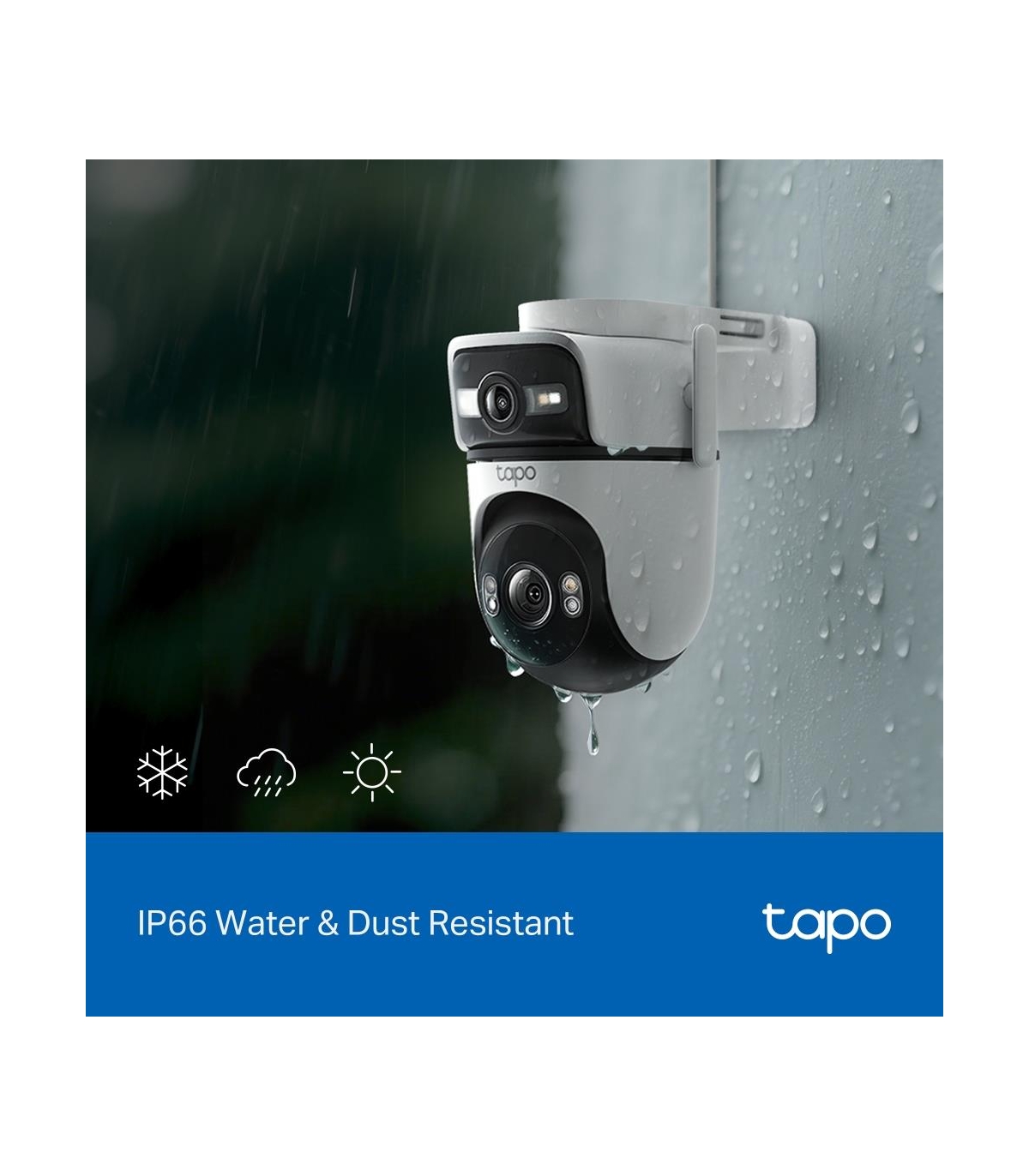

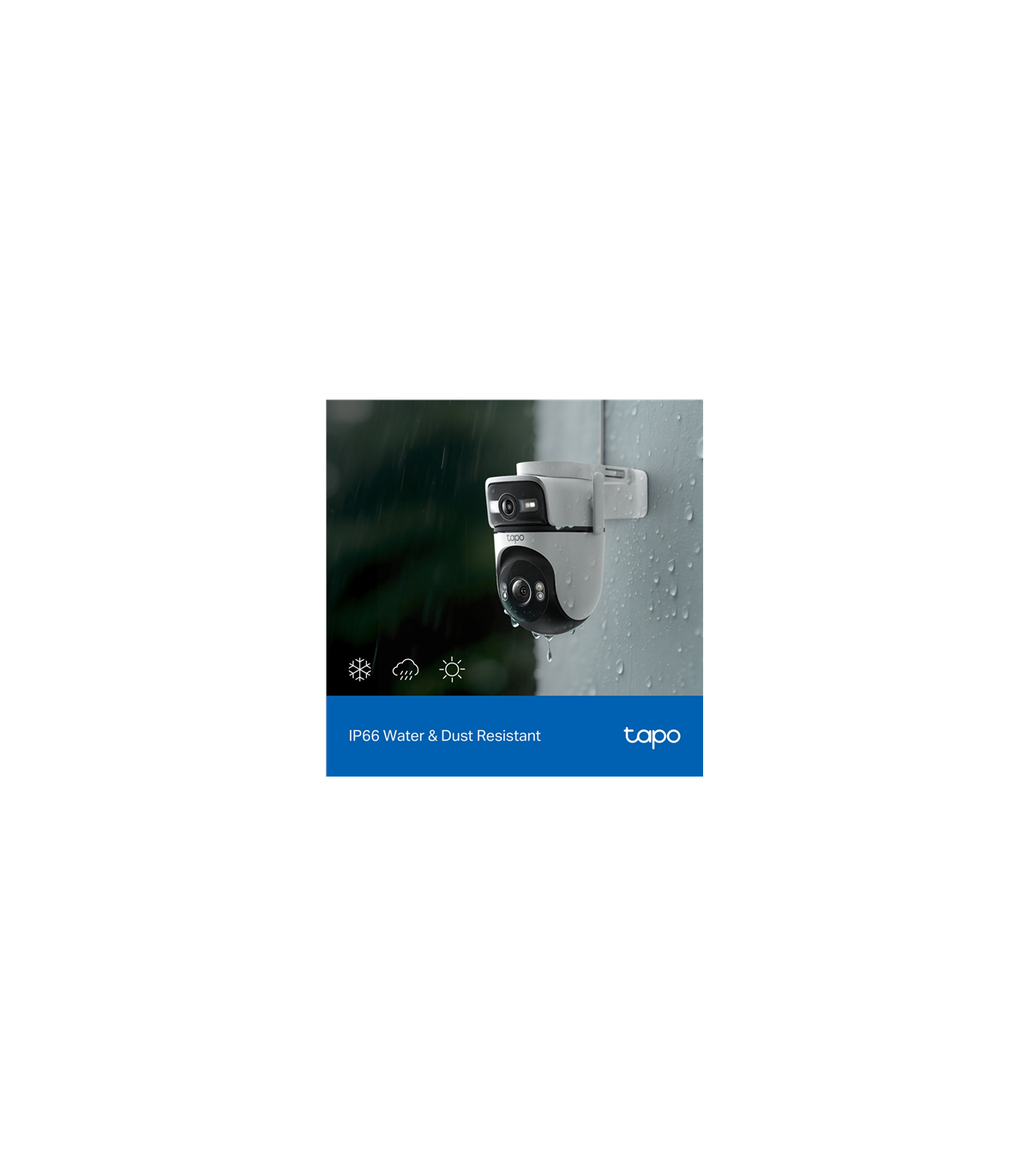

International Protection (IP) code

IP66

Day/night mode

Yes

Depth

152.1 mm

Height

159.55 mm

Package weight

890 g

Width

114.57 mm

Package depth

235 mm

Package height

136 mm

Package width

196 mm

Power consumption (typical)

5.3 W

Wi-Fi standards

802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 6 (802.11ax)

Weight

491 g

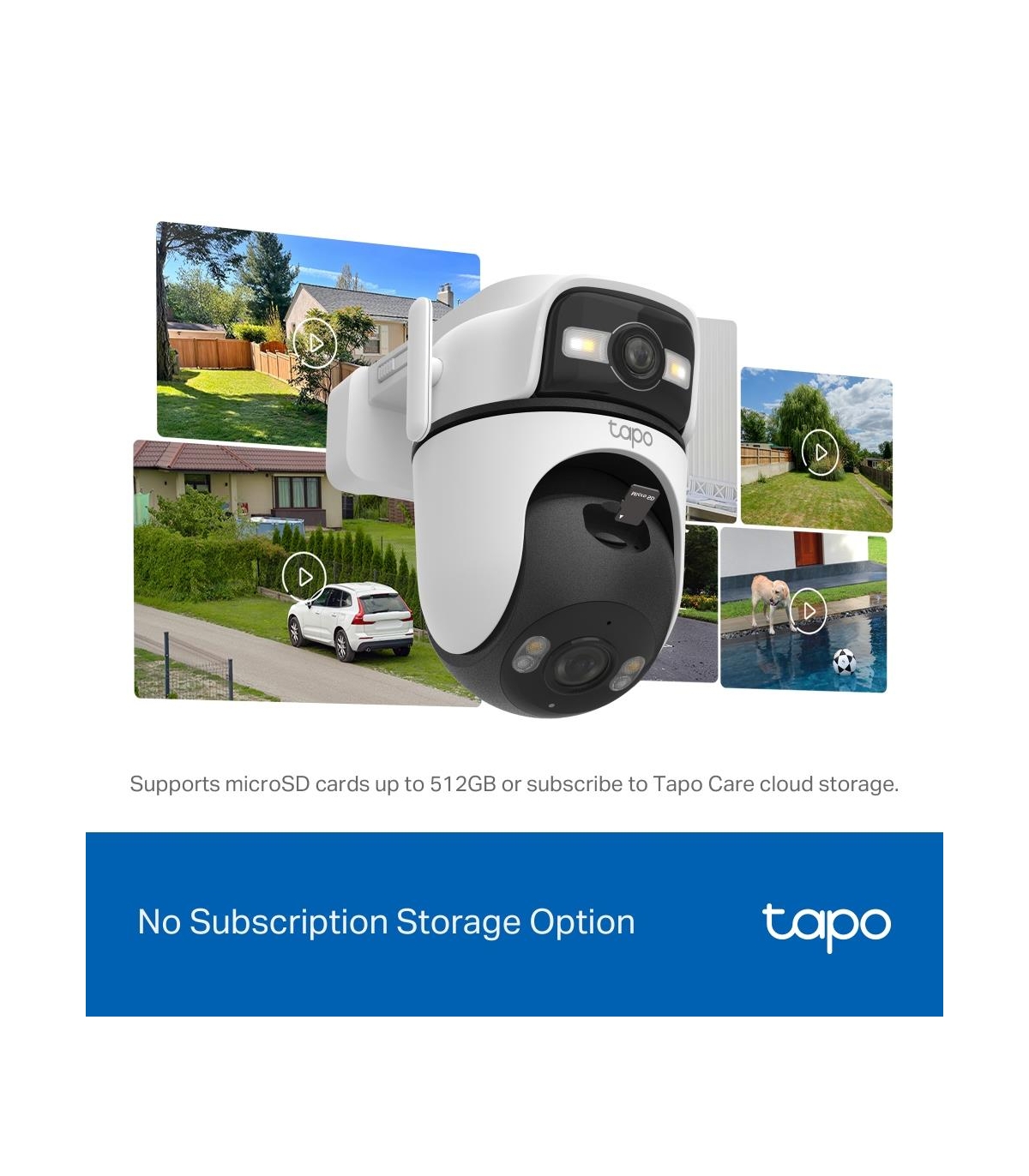

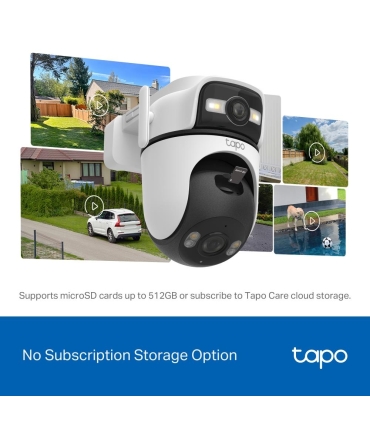

Maximum memory card size

512 GB

Operating temperature (T-T)

-30 - 60 °C

Storage temperature (T-T)

-40 - 60 °C

Frame rate

15 fps

Cable length

3 m

Wi-Fi data rate (max)

144 Mbit/s

Built-in HDD

No

Unit Calculated Volume

0.006345 cubm

Unit Calculated Weight

0.985 kg

Summary

TP-Link Tapo Outdoor Dual Lens Pan/Tilt Security Camera. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Spherical. Lens viewing angle

Optical sensor size

1/2.8 "

Live view

Yes

Maximum aperture number

1.6

Total megapixels

3 MP

Focal length range

2.53 - 6 mm

Number of lenses

2

Infra-red wavelength

850 nm

LED type

IR

Built-in siren

Yes

Siren noise level

99 dB

DC output current

1 A

DC output voltage

12

Infrared (IR) cut-off filter

Yes

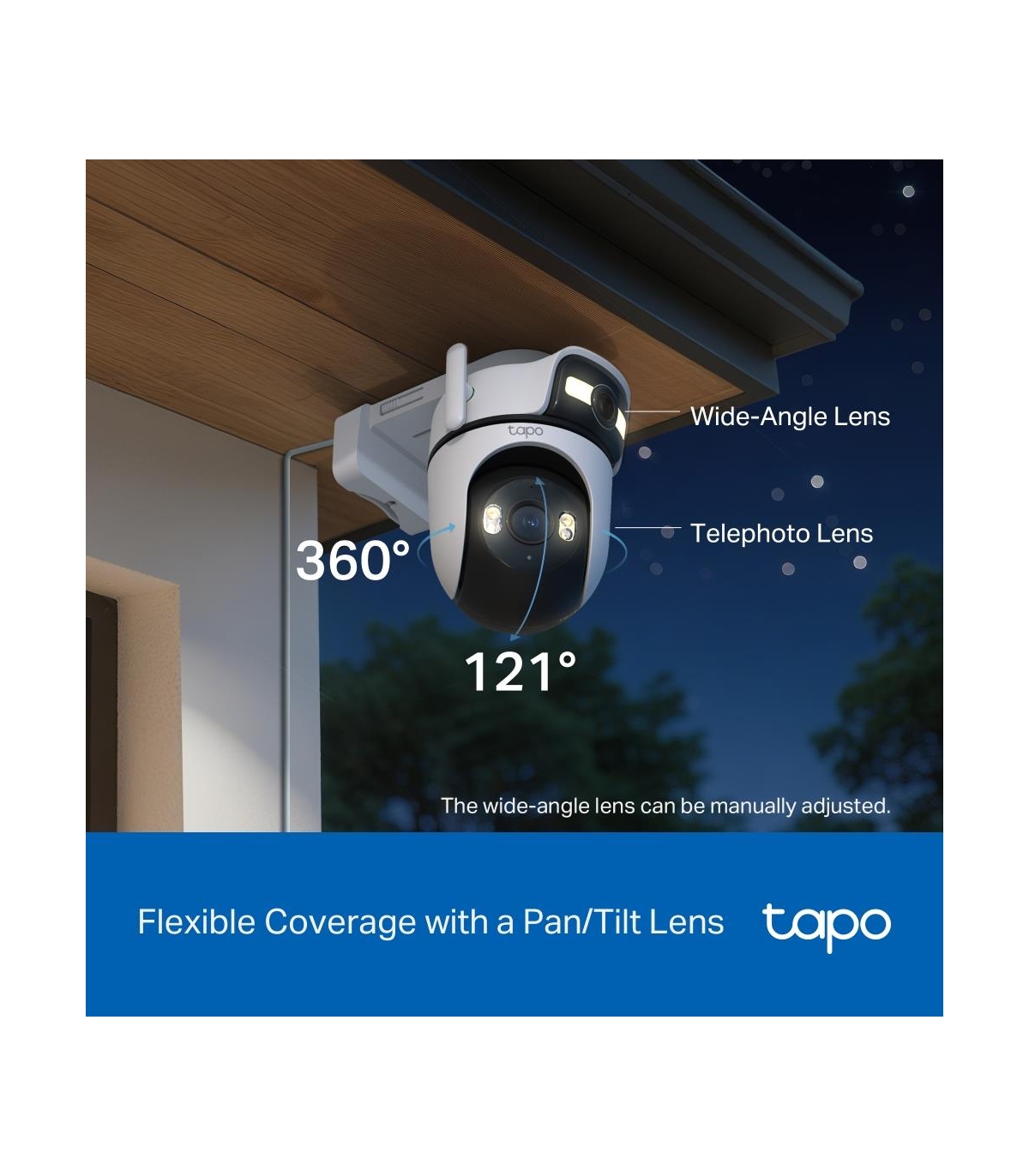

Lens viewing angle, diagonal

66.5 - 165.1 °

Lens viewing angle, horizontal

57.3 - 137.6 °

Lens viewing angle, vertical

31.7 - 73 °

Noise reduction technology

3D noise reduction

Intelligent Video Surveillance (IVS) system features

Human detection/Line crossing detection/Pet detection/Vehicle detection

Active tampering alarm

Yes

Alert notification type

Snapshot alert message

Drilling template included

Yes

Privacy protection

Yes

Auto-tracking

Yes

Anchors included

Yes

Waterproof connector

Yes

Colour night vision distance

29.9 m
