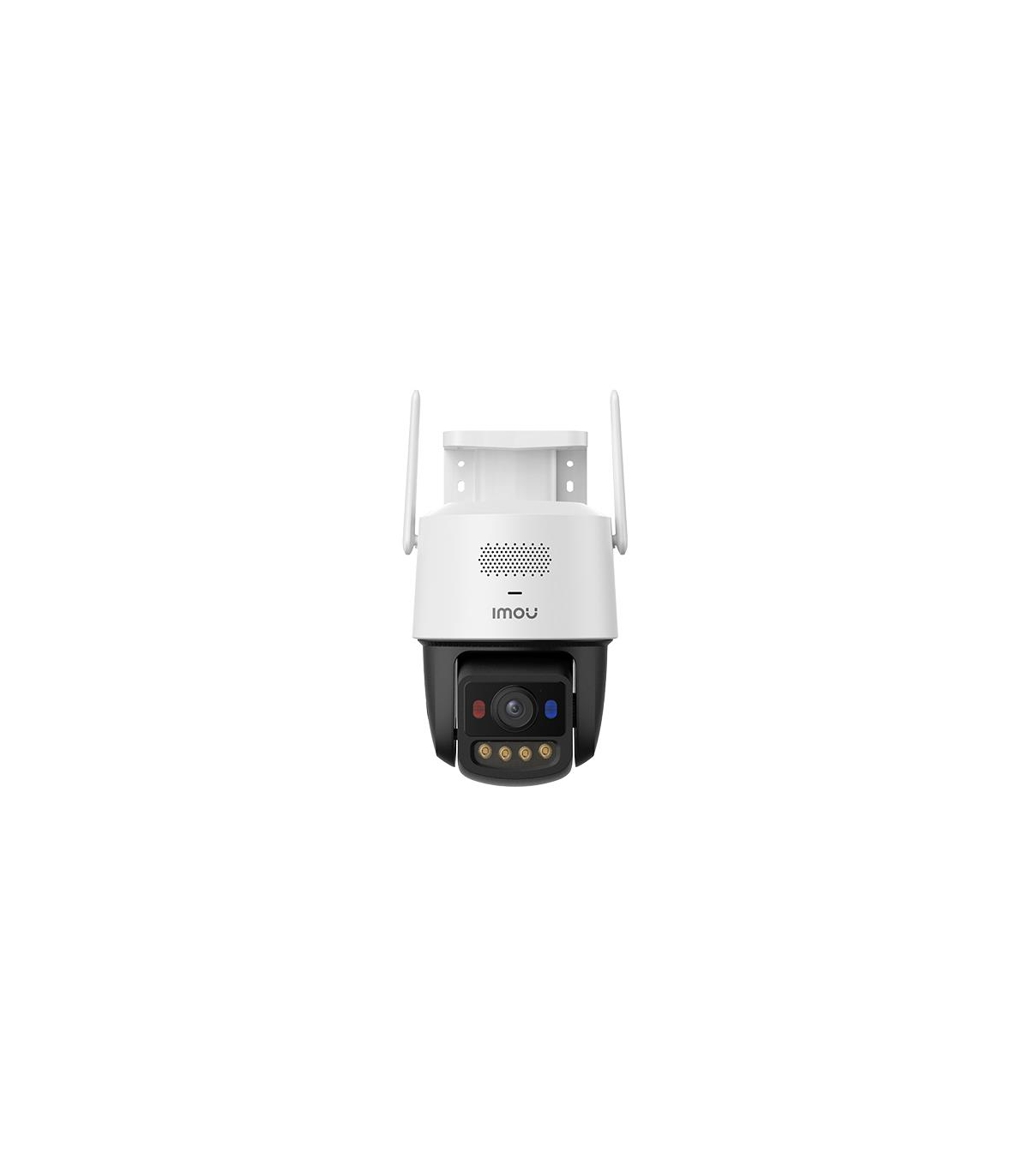

IMOU WRL CAMERA 6MP TITAN PRO/IPC-U7LP-6V0NE

Specification

Mounting type

Wall

Night vision

+

Video compression formats

H.264/H.265

Interfaces

Ühendusliides

Juhtmevaba

Card reader integrated

+

Memory card slot

MicroSD

Networking

WiFi

+

WiFi standards

802.11 a/b/g/n/ac/ax

Multimedia

Microphone

+

Built-in speaker(s)

+

Audio system

2-way

Dimensions

Depth (mm)

182

Other

Housing material

Plastic

Sensor

Sensori tüüp

CMOS

Other features

Maximum resolution

3200 x 1800 pixels

Model

IPC-U7LP-6V0NE

Power consumption (max)

12 W

Type

IP security camera

Placement supported

Indoor & outdoor

Model name

Titan Pro 6MP

Form factor

Dome

Night vision distance

30 m

Power source type

DC,PoE

Zoom capability

Yes

Digital zoom

8 x

Height

238.2 mm

Width

147.7 mm

Weight

723.6 g

Maximum memory card size

512 GB

Operating temperature (T-T)

-30 - 60 °C

Frame rate

20 fps

Built-in HDD

No

Unit Box Height

0.288

Unit Calculated Volume

0.01396 cubm

Summary

Imou Titan Pro. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wireless. Mounting type: Wall, Product colour: Black, White, Form factor: Dome. Lens viewing angle, horizontal: 89°, Lens viewing angle, vertical: 4

Product colour

Black/White

Tilt angle range

0 - 90 °

Optical sensor size

1/1.8 "

Maximum aperture number

1

Total megapixels

6 MP

Fixed focal length

3.6 mm

Built-in siren

Yes

Siren noise level

125 dB

DC output current

1 A

DC output voltage

12

Lens viewing angle, diagonal

107 °

Lens viewing angle, horizontal

89 °

Lens viewing angle, vertical

47 °

Pan range

0 - 340 °

Intelligent Video Surveillance (IVS) system features

Human detection/Vehicle detection

Motion sensor

Yes

Fixed focus

Yes
